Details
Supermicro SuperServer SYS-1029GQ-TRT
Product SKU |
|
|---|---|
| SYS-1029GQ-TRT | • SuperServer 1029GQ-TRT (Black) |
Motherboard |
|
|---|---|
| Super X11DGQ | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s • Support CPU TDP 70-165W |
| Cores | • Up to 28 Cores with Intel® HT Technology |
| GPU / Coprocessor Support |
• Please refer to: Compatible GPU list |
System Memory |
|
|---|---|
| Memory Capacity |
• 12 DIMM slots • Up to 1.5TB ECC 3DS LRDIMM, 1.5TB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C621 chipset |
| SATA | • SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Connectivity | • Intel® X540 Dual Port 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | • ASPEED AST2500 BMC |
Input/Output |
|
|---|---|
| SATA |
• 4 SATA3 (6Gbps) ports |
| LAN | • 2 RJ45 10GBase-T ports • 1 RJ45 Dedicated IPMI LAN port |
| USB | • 2 USB 3.0 ports (rear) |
| Video | • 1 VGA port |
| Serial Header | • 1 Fast UART 16550 header |
System BIOS |
|
|---|---|
| Bios Type | • AMI 32Mb SPI Flash ROM |
Management |
|
|---|---|
| Software |
• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • SSM, SPM, SUM • SuperDoctor® 5 • Watch Dog |
| Power Configuration | • ACPI / APM Power Management |
PC Health Monitoring |
|
|---|---|
| CPU |
• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator |
| Fan | • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-118GQETS-R2K05P2 |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 35.2" (894mm) / 39.3" (997mm) with rails |
| Gross Weight | • 58 lbs (21.8 kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED |
• Power LED • Hard drive activity LED • Network activity LEDs • System Overheat LED / Fan fail LED / UID LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 4 PCI-E 3.0 x16 (FHFL) slots • 2 PCI-E 3.0 x16 (LP) slots |
Drive Bays |
|
|---|---|

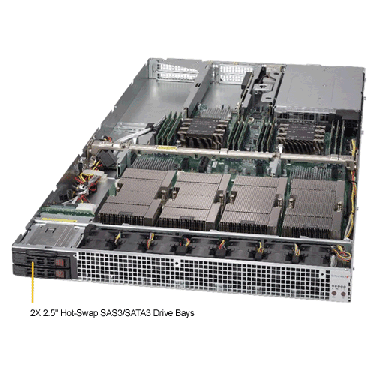

| Hot-swap | • 2 Hot-swap 2.5" SAS/SATA drive bays |
| Fixed | • 2 Internal 2.5" drive bays |
System Cooling |
|
|---|---|
| Fans | • 9 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control |
Power Supply |
|
|---|---|
| 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | • 1000W/1800W/1980W/2000W |
| Dimension
(W x H x L) |
• 73.5 x 40 x 265 mm |
| Input | • 100-120Vac / 12.5-9.5A / 50-60Hz • 200-220Vac / 10-9.5A / 50-60Hz • 220-230Vac / 10-9.8A / 50-60Hz • 230-240Vac / 10-9.8A / 50-60Hz • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) |
| +12V | • Max: 83.3A / Min: 0A (100-120Vac) • Max: 150A / Min: 0A (200-220Vac) • Max: 165A / Min: 0A (220-230Vac) • Max: 166.7A / Min: 0A (230-240Vac) • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) |
| 12Vsb | • Max: 2.1A / Min: 0A |
| Output Type | • 25 Pairs Gold Finger Connector |
| Certification | • 80 Plus Titanium Level |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) |
