Details
|
Product SKU
| |
|---|---|

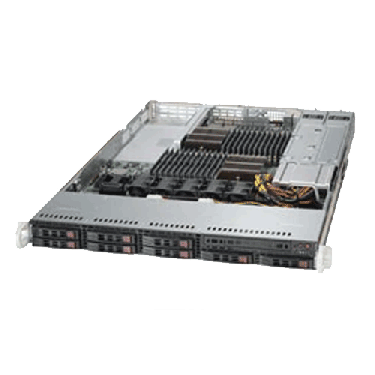

| AS-1122G-URF4+ | • A+ Server 1122G-URF4+ (Black) |
|
Motherboard
| |
|---|---|
| • Super H8DGU-LN4F+ | |
| Processor/Cache
|
|
|---|---|
| CPU | • Dual 1944-pin Socket G34 • Supports up to two 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors • HT3.0 Link support |
| Chipset | • AMD chipset SR5690 / SP5100 |
| Note | Supports 6000 processors with Max ACP 80W (TDP 115W) |
|
System Memory
| |
|---|---|
| Memory Capacity | • 24 DIMM sockets • Support up to 768GB Registered ECC or 128GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 24 DIMMs • Quad channel memory bus • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Memory Type | • DDR3 1600/1333/1066 MHz Registered ECC Unbuffered ECC/non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 1GB, 2GB, 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | • 1.35V or 1.5V |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| SATA | • AMD SP5100 (RAID 0, 1, 10) | IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • Winbond® WPCM450 BMC |
|---|---|
| Network Controllers | • 2x Intel® 82576 controller, Quad-Port Gigabit Ethernet • 10/100/1000BASE-T support |
| VGA |
• Matrox G200eW 16MB DDR2 |
| Super I/O | • Winbond 83527HG chip • Winbond WPCM450 (BMC) |
|
Expansion Slots
| PCI-Express | • 1x PCI-E x16 (Gen 2.0); 1x UIO |
|---|
|
Input/Output
| SATA | • 6x SATA2.0 (3Gb/s) Ports -> (Addition SATA cable required, please check Optional Parts List as below) | LAN | • 4x RJ45 ports and 1x RJ45 Dedicated LAN supports IPMI |
|---|---|
| USB | • 5x USB 2.0 ports • 2x Rear, 2x header, 1x Type A |
| VGA | • 1x VGA port |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | • 1 Fast UART 16550 serial port • 1 serial port header |
| Others | • 1 UID |
|
System BIOS
| |
|---|---|
| BIOS Type | • 16Mb Flash EEPROM with AMI® BIOS |
| BIOS Features |
• Plug and Play (PnP) |
|
Chassis
| |
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC119TQ-R700UB |
|
Dimension and Weight
| |
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 26.6" (676mm) |
| Gross Weight | • 46 lbs (19.45 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off Button |
| LEDs |
• Power status |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 8x 2.5" SAS / SATA Hot-swap drive bays SAS or enterprise SATA HDD only recommended |
|
Peripheral Drives
| |
|---|---|
| DVD-ROM | • Slim DVD-ROM drive ( optional ) |
|
SAS Backplane
| |
|---|---|
• 1x 1U SAS backplane w/ Enclosure Management |
|
|
System Cooling
| |
|---|---|
| Fans | • 5x 40x56mm 4-pin PWM Fans |
|
Power Supply
| |
|---|---|
| 700W Redundant AC-DC high-efficiency power supply with PMBus and I2C | |
| AC Voltage | • 700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp |
| DC Output +5V standby |
• 3 Amp |
| DC Output +12V | • 700W: 58 Amp @ 100-140V |
| With Power Distributor |
• +5V: 25 Amp • +3.3V: 12 Amp • -12V: 0.6 Amp |
| Certification | • 80Plus Gold Certified |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +3.3V, +5V, ±12V, HyperTransport Link voltage, memory voltage, VBAT, Chipset voltage |
| FAN | • Total up to 8-fan status tachometer monitoring • Status monitor for speed control • Stauts monitor for on/off control • Low noise fan speed control |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip Support • Thermal Control for 8x Fan Connectors • I2C Temperature Sensing Logic |
| LED | • CPU / System Overheat LED • Suspend-State Indicator LED • +5V Standby Alert LED • UID/Remote LED |
| Other Features | • Chassis Intrusion Detection • Chassis Intrusion Header |
|
Operating Environment / Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 30°C (50°F to 86°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
