  • Supermicro 1U A+ Servers AS-1012A-MRF

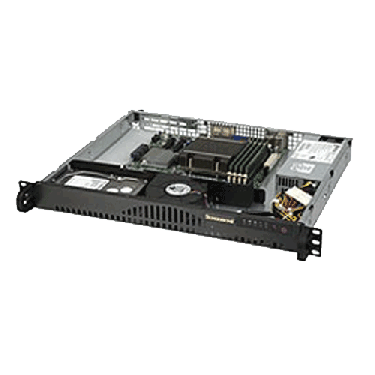

Supermicro 1U A+ Servers AS-1012A-MRF

Call for price.
SKU:AS-1012A-MRF

Quick Overview:

Key Features:
• Single AMD Opteron™ 3000 series processor (Socket AM3+)
• Up to 32GB of memory
• 1 PCI-E 2.0 x4 (in x8 slot)
• 2 SATA internal drive bays
• 200W High-efficiency Power Supply

Details

Supermicro 1U A+ Servers AS-1012A-MRF

Product SKU
• A+ Server 1012A-MRF
Motherboard
  • Super H8SML-iF
Processor/Cache
CPU • Single 942-pin Socket AM3+
• Supports up to Single 8/4-Core ready AMD Opteron™ 3000 Series processor
• HT3.0 Link support
Chipset • AMD chipset SR5650/SP5100
System Memory
Memory Capacity • 4 DIMM sockets
• Support up to 32GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 4 DIMMs
• Single or Dual channel memory bus
Memory Type

• DDR3 1600/1333/1066MHz un-buffered ECC / non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.35V or 1.5V

On-Board Devices
SATA • AMD SP5100 RAID 0, 1
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
• Winbond® WPCM450 BMC
Network Controllers • Intel 82574L single-port Gigabit Ethernet, 10/100/1000Base-T support
VGA

• Matrox G200eW 16MB DDR2 graphics

Super I/O

• Winbond® W83527HG chip

Expansion Slots
PCI-E/PCI • 1 PCI-E 2.0 x4 (in x8 slot)
Input/Output
SATA • 6x SATA2.0 (3Gb/s) Ports
USB • 7x USB 2.0 ports (2x rear / 2x header - 4 ports / 1x type A)
VGA • 1x VGA port
Serial Ports • 2 Fast UART 16550 serial ports
• 1 header & 1 port
Others • 1x dedicated IPMI LAN port
System BIOS
BIOS Type

• 16Mb SPI Flash ROM with AMI® BIOS

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 2.0
• USB Keyboard Support
• SMBIOS 2.3

Chassis
Form Factor • 1U Rackmount
Dimension and Weight
Height • 1.7" (43mm)
Width • 16.8" (462mm)
Depth • 14" (356 mm)
Gross Weight • 17 lbs (7.7kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED

Drive Bays
Internal HDD

• 2x 3.5" internal SATA drive bays
• Enterprise SATA HDD only recommended

System Cooling
Fans

• 1 x 10 cm heavy duty counter-rotating fan

Power Supply
  200W Low Noise AC-DC power supply with PFC
AC Voltage • 100 - 240V, 50-60Hz, 3-1.5 Amp Max
+5V
• 16.0 Amp
+5V standby • 2.0 Amp
+12V • 15.0 Amp
-12V • 0.8 Amp
+3.3V • 17.0 Amp
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, -12V Standby, VBAT, HT, memory, chipset
• CPU switching voltage regulator

LED














• CPU / System Overheat LED
• +5V Standby Alert LED
