  • Supermicro SYS-8044T-8R 4U Rackmountable/Tower

Supermicro 4U Rackmountable Tower SYS-8044T-8R | SuperServer

Call for price.
SKU:SYS-8044T-8R

Quick Overview:

Key Features:
• Quad Dual-Core Intel® Xeon® Processor 7100 Series Support, up to
   3.40 GHz, 800 MHz FSB
• Up to 64GB ECC DDR2 400 SDRAM
• 1 x8 (in x16) PCI-Express, 1 x4 (in x8) PCI-Express, 3x 64-bit 133MHz
   PCI-X, 1x 64-bit 100MHz PCI-X
• Intel® E8501 Chipset
• 5 x 3.5" Hot-swap SCSI Drive Bays
• Dual Intel® 82571 PCI-e Gigabit Ethernet Controllers
• 1200W High-efficiency Redundant Hot-swap Power Supply


Details

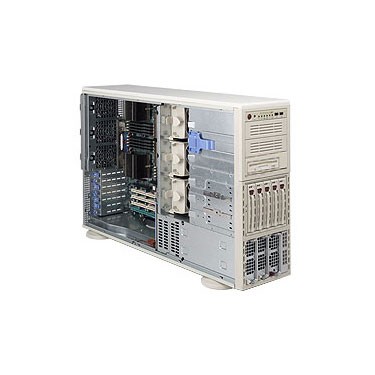

Supermicro SYS-8044T-8R / SYS-8044T-8RB 4U Rackmountable/Tower

Supermicro SYS-8044T-8R / SYS-8044T-8RB 4U Rackmountable/Tower with 1200W High-efficiency Redundant Hot-swap Power Supply, Intel® E8501 chipset, 5x 3.5" Ultra320/160 Hard
Drives, supports Super X6QT8 Server Motherboard and SC748TS-R1200P 4U Rackmountable/Tower Chassis.
Product SKU
• SuperServer 8044T-8R (Beige)
• SuperServer 8044T-8RB (Black)
Motherboard
        Super X6QT8
Processor/Cache
CPU

• Quad 604-pin FC-mPGA4 Sockets
• Supports up to four Intel® 64-bit Xeon® processor(s) of the same type below:
• Dual-Core Intel® Xeon® Processor 7100 Series with 2MB L2 Integrated Advanced Transfer Cache

System Bus • 800 MHz system bus
OS Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Sixteen 240-pin DIMM sockets
• Supports up to 64GB ECC DDR2 400MHz memory
• Dual channel memory bus
• Memory must be populated in pairs and all be of same type
• Single-rank modules are recommended for 6+ DIMM support
Memory Type

• DDR2 400MHz registered ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes • 512 MB, 1GB, 2GB, 4GB
Memory Voltage • 1.8V only
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 Single Device Data Correction (SDDC)
On-Board Devices
Chipset

• Intel® E8501 chipset
• MCH + ICH5R + PXH + 82571

SATA

• ICH5R SATA Controller
• RAID 0, 1, JBOD support

SCSI

• Adaptec AIC-7902 Controller
• Dual-Channel Ultra320 SCSI (Host RAID only supports 4 drives)
• Host RAID 0, 1, 10, JBOD support

RAID

• Support for Zero-Channel RAID
• (Card NOT included)

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• AOC-IPMI20-E (Included)

Network Controllers

• Dual Intel® 82571EB Single Port PCI-e Gigabit Controllers
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Graphics

• ATI ES1000 SVGA PCI video controller with 16 MB of video memory

Super I/O • National 87427 chip
Input/Output
Serial ATA

• Two Serial ATA ports
• Two SATA hard drives supported

IDE

• Dual EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100

LAN

• 2x RJ45 LAN ports

USB

• 2x USB rear ports
• 2x USB internal headers
• USB 2.0 Compliant / 1.1 Compliant

VGA

• 1x VGA Port

Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Port / Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header

System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features

• Plug and Play (PnP)
• APM 1.2
• SMBIOS 2.3
• DMI 2.3
• PCI 2.2
• ACPI 1.0
• ACPI 1.0 (limited)
• BIOS Rescue Hot Keys
• USB Keyboard Support
• Hardware BIOS Virus Protection







Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit (MCP-290-00001-00)
Model SC748TS-R1200P
Dimension and Weight
Height • 17.8" (452mm)
Width • 7.0" (178mm)
Depth • 29.4" (746mm)
Gross Weight • 87 lbs (39.5kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• Power Fail LED
Ports • 2x USB Ports
Drive Bays
Hot-Swap • 5x 3.5" Ultra320/160 Hard Drives
• Additional five 3.5" Ultra320/160 Hard Drives available with optional M35 Mobile Rack
Peripheral Bay(s) • 3x 5.25" Peripheral Drive Bays
Expansion Slots
PCI-Express

• 1 x8 (in x16) PCI-e slot
• 1 x4 (in x8) PCI-e slot

PCI-X

• 3x 64-bit 133MHz PCI-X (3.3V) slots
• 1x 64-bit 100MHz PCI-X (3.3V) slot

SCSI Backplane


• U320 SCSI Hard Drive Backplane

System Cooling
Fans

• 3x 5000 RPM Hot-Swappable Cooling Fans
• 3x 5000 RPM Hot-Swappable Rear Exhaust Fan

Shrouds • 1x Air Shroud
Power Supply
  1200W (1 + 1) Redundant high-efficiency power supply w/ PFC
1200W
+5V standby

• 4 Amp

+12V

• 100 Amp

900W



+5V standby

• 4 Amp

+12V

• 74 Amp

With Power
Distributor

• +5V: 20 Amp
• +3.3V: 20 Amp
• -12V: 0.6 Amp
PC Health Monitoring
CPU • Monitors for CPU Cores, +3.3V, +5V, ±12V & +3.3V Standby
• CPU Core 5-Phase-switching voltage regulator with auto-sense from 0.86V-1.63V
FAN

• Total of nine 4-pin and four 3-pin fan headers
• 9x fans with status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Supports 3-pin Fans (w/o speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connector

Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 6x Fan Connectors
• I2C Temperature Sensing Logic
• Thermal Monitor 2 support
LEDs • CPU Overheat LED
Other Features • Chassis intrusion detection
• Chassis intrusion header
• SDDC
Environmental Specs. • Operating Temperature: 10°to 35°C (50°to 95°F)
• Non-operating Temperature: -40°to 70°C (-40°to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
