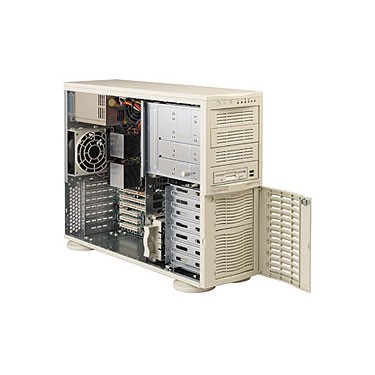

Supermicro SYS-7042S-iB Rackmountable/Tower

More Views

  • Supermicro SYS-7042S-iB Rackmountable/Tower

Supermicro SYS-7042S-iB Rackmountable/Tower

Call for price.
SKU:SYS-7042S-iB

Quick Overview:

Key Features:
• Dual Intel® Xeon® Support up to 2.8 GHz
• Up to 4GB DDR 200 SDRAM
• 3x 64-bit PCI-X, 3x 32-bit PCI expansion slots
• 1x Intel® 10/100 Ethernet Port
• 7 x IDE Drive Carriers
• Redundant 420W power supply


Details

SuperServer SYS-7042S-i / SYS-7042S-iB Rackmountable/Tower

Supermicro SYS-7042S-i / SYS-7042S-iB 4U Rackmountable/Tower with Redundant 420W power supply, Serverworks™ GC-SL Chipset, 3 IDE Drive Carrier and 4 IDE Drive Carrier
supports Super P4DSE Server Motherboard and SC742i-420 Rackmountable Tower Chassis.
Product SKU
SYS-7042S-i • SuperServer 7042S-i (Beige)
SYS-7042S-iB • SuperServer 7042S-iB (Black)
Motherboard
        Super P4DSE
Processor/Cache
CPU

• Dual mPGA603 ZIF Sockets
• Supports up to two Intel® Xeon® processor(s) with 512KB of integrated Advanced Transfer Cache up to 2.8GHz
System Bus • 400MHz system bus
System Memory
Memory Capacity • Four 184-pin DIMM sockets
• Supports up to 4 GB of DDR200 memory
• Dual channel memory bus
• Memory must be populated in pairs
Memory Type

• DDR266/200 registered ECC SDRAM 72-bit ECC, 184-pin gold-plated DIMMs
On-Board Devices
Chipset

• Serverworks™ GC-SL Chipset
Network Controllers

• 1x Intel® 82550 10/100 Ethernet
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics

• ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Input/Output
PCI Expansion

• 3x 64-bit 100/66MHz PCI-X (3.3V) slot
• 3x 32-bit 33MHz PCI (5V) slots
IDE

• Dual EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
USB

• Up to 4 USB ports
Serial Port

• 2 Fast UART 16550 serial ports
Parallel Port

• 1 ECP/EEP parallel port
Floppy

• 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
Keyboard/Mouse

• PS/2 keyboard and mouse ports
System Bios
Bios Type • 4Mb Flash EEPROM with AMI® BIOS
Bios Features

• Plug and Play (PnP)
• SMBIOS 2.3
• APM 1.2
• DMI 2.1
• ACPI 1.0
• BIOS rescue hot keys
• Hardware BIOS virus protection




























Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit (CSE-PT26)
Model • SC742i-420
Dimension and Weight
Height • Tower: 17.8" (452mm) / Rackmount: 7.0" (178mm)
Width • Tower: 7.0" (178mm) / Rackmount: 17.8" (452mm)
Depth • 23.8" (605mm)
Gross Weight • 49 lbs (22.3kg)
Available Color • Beige / Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• Power Fail LED
Drive Bays
Drive Carrier(s) • 3 IDE Drive Carrier
• 4 IDE Drive Carrier
Peripheral Bay(s) • 3x 5.25" Peripheral Drive Bay
• 1x 5.25" Bay For Floppy Drive
System Cooling
Fans

• 2x 90mm Hot-swappable Fans
• 1x 120mm Rear Exhaust Fan
Power Supply
  420W Redundant AC power supply w/ PFC
AC Voltage • 100 - 240V, 50/60Hz, 10 Amp
DC Output

• 5V + 3.3V ≤ 160W
• 12V + 5V + 3.3V ≤ 430W
+5V • 30.0 amp
+5V standby • 2.0 Amp
+12V • 30.0amp
-12V • 1.0 Amp
+3.3V • 30.0 Amp
PC Health Monitoring
CPU

• Monitors for CPU Cores, +2.5V, +3.3V, +5, ±12V
• CPU Core 3-Phase-switching voltage regulator w/ auto-sense from 1.4V-3.5V
• Adjustable CPU clock frequency ratio settings (via BIOS)
FAN • Total of five 3-pin fan headers
• 4x fans with tachometer monitoring
• Overheat backup fan connector
• Status monitor with firmware/software on/off control
Temperature • Monitoring for CPU, chassis, environment
• CPU thermal trip support
LED • CPU Overheat LED
• System Overheat LED
• Suspend-state indicator LED
Other Features

• Chassis intrusion detection (through LDCM)
• Chassis intrusion header
