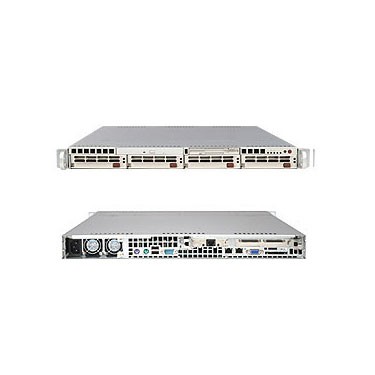

Supermicro SYS-6014H-32 / SYS-6014H-32B 1U Rackmount with 500W Hot-swap Power Supply,Intel® E7520 chipset,4x 3.5" Hot-swap SAS drive bays, using Supermicro
Super X6DHR-3G2 Motherboard and SC813T-500 Rackmount Chassis
Product SKU |
|
|---|---|
| SYS-6014H-32 | • SuperServer 6014H-32 (Beige) |
| SYS-6014H-32B | • SuperServer 6014H-32B (Black) |
Motherboard |
|
|---|---|
| Super X6DHR-3G2 | |
Processor/Cache |
|
|---|---|
| CPU | • Dual 604-pin FC-mPGA4 Sockets |
| System Bus | • 800 MHz system bus |
| Operating System Software | • Supports 64-bit Operating Systems • Supports 32-bit Operating Systems |
System Memory |
|
|---|---|
| Memory Capacity |
• Eight 240-pin DIMM sockets • Supports up to 16 GB DDR2 400MHz memory • Dual-channel memory bus • Memory must be populated in pairs • Single-rank modules are recommended for 6+ DIMM support |
| Memory Type | • DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB |
| Memory Voltage | • 1.8V only |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Single Device Data Correction (SDDC) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® E7520 chipset |
| SATA | • Adaptec AIC9410: Adaptec 8-port SAS Controller • RAID 0, 1, 10, JBOD support |
| SAS | • Adaptec AIC9410: Adaptec 8-port SAS Controller • RAID 0, 1, JBOD support |
| SAS Zero Channel RAID | • RAID 0, 1, 5, 10, 50 • Support for Zero-Channel RAID with Supermicro All-In-One-ZCR Card: AOC-SOZCR1 • (Card not included) |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • (Optional IPMI Card: AOC-1UIPMI-B) |
| Network Controllers | • Intel® 82546GB Dual Port Gigabit Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Graphics | • ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
| Super I/O | • Winbond 83627HF chip |
Expansion Slots |
|
|---|---|
| PCI-Express / PCI-X |
• 2 x Universal (SXB-E) slots
[1x PCI-X 133MHz & PCI-X 100MHz] OR [ 2x PCI-E (x8) (Riser cards CSE-RR1U-EL & CSE-RR1U-ELP required)] |
Input/Output |
|
|---|---|
| SAS | • Two SAS ports (1 internal, 1 external) • Each SAS port supports up to 4 SAS / SATA drives for a total of up to 8 SAS or SATA hard drives |
| IDE | • Dual EIDE channels support up to four UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
| Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support |
| LAN | • 2x RJ45 LAN ports |
| USB | • 2x USB rear ports |
| VGA | • 1x VGA Port |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
| Serial Port / Header | • 2 Fast UART 16550 serial ports |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC813T-500 |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.6" (650mm) |
| Weight | • 38 lbs (17.2kg) |
| Available Color | • Beige,Black |
Front Panel |
|
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED |
| Ports | • 2x USB & DB9 COM port tray • (Optional - in place of floppy drive) |
Drive Bays |
|
|---|---|
| Hot-swap | • 4x 3.5" Hot-swap SAS drive bays |
Peripheral Drives |
|
|---|---|
| Floppy | • TEAC 3.5" 1.44MB Slim Floppy Drive |
| DVD-ROM | • TEAC Slim 24x CD-ROM drive |
Backplane |
|
|---|---|
| • 1x 1U SAS Hard Drive Backplane | |
System Cooling |
|
|---|---|
| Fans | • 2x 10cm blower fans |
Power Supply |
|
|---|---|
| Cold-swappable 500W AC power supply module with PFC
[ 20-pin, (4-pin, 8-pin = 12V) ] |
|
| AC Voltage | • 100 - 240V, 60-50Hz, 10 Amp Max |
| DC Output | • 5V + 3.3V ≤ 160W |
| +5V | • 30 Amp |
| +5V stand by | • 2.0 Amp |
| +12V | • 39 Amp |
| -12V | • 1.0 Amp |
| +3.3V | • 21 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby |
| FAN | • Total of five 3-pin fan headers • 5x fans with status monitoring • Fan speed control |
| Temperature | • Monitoring for CPU, chassis environment • CPU thermal trip support • Thermal Monitor 2 support |
| LED | • CPU Overheat LED |
| Other Featue | • Chassis intrusion detection • Chassis intrusion header • SDDC support |
System Bios |
|
|---|---|
| Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | • Plug and Play (PnP)
|
