  • Supermicro SYS-6025W-URB 2U Rackmount

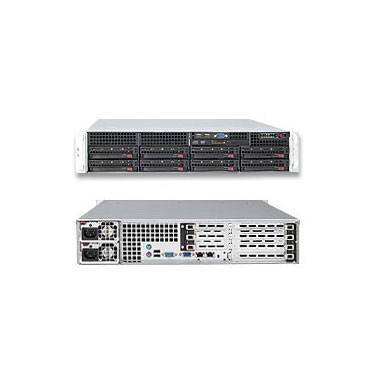

Supermicro SYS-6025W-URB 2U Rackmount

Call for price.
SKU:SYS-6025W-URB

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 1600 / 1333 /
   1066 MHz FSB
• Up to 64GB DDR2 800 / 667 / 533 SDRAM Fully Buffered DIMM
   (FB-DIMM)
• 1 Universal I/O (UIO) Slot,
   3 (x8) Full-height/length PCI-E,
   2 (x8) Low-Profile PCI-E Slots
• Intel® 82575EB Dual-port Gigabit Ethernet Controller
• 8x 3.5" Hot-swap Drives Trays 6x SATA Hard Drives Supported
• 700W High-efficiency Redundant Power Supply

Details

SuperServer SYS-6025W-URB 2U Rackmount

Supermicro SYS-6025W-URB 2U Rackmount Barebone with 700W High-efficiency Redundant Power Supply, Intel® 5400 (Seaburg) chipset, 8x 3.5" SATA Hot-swap drive bays
using Supermicro Super X7DWU other board and SC825TQ-R700U 2U Chassis.

Product SKU
• SuperServer 6025W-URB (Black)
Motherboard
        Super X7DWU
Processor/Cache
CPU

• Dual 771-pin LGA Sockets
• Supports up to Dual Intel® 64-bit Xeon®processor(s) of the same type below:
• Quad-Core Intel® Xeon®Processor 5400/5300LV sequence (Harpertown /Clovertown processor) up to 3.20 GHz
• Dual-Core Intel® Xeon®Processor 5200/5100LV sequence (Wolfdale/Woodcrest processor) up to 3.40 GHz

System Bus

• 1600 / 1333 / 1066 MHz system bus

System Memory
Memory Capacity • Eight 240-pin DIMM slots
• Supports up to 64 GB 800* / 667 / 533MHz DDR2 ECC FB-DIMM memory
• Dual branch memory bus
• Memory must be populated in pairs
• Memory Sparing supported
Memory Type • 800* / 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 256MB, 512MB, 1GB, 2GB, 4GB, 8GB**
Memory Voltage • 1.8 V or 1.5 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset • Intel® 5400 (Seaburg) chipset
• MCH + ESB2
SATA • Intel ESB2 SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support (Windows only)
• RAID 0, 1, 10 support (Linux)
IPMI

• Support for Intelligent Platform Management Interface v.2.0 / 1.5
• 200-pin IPMI slot (SIMSO(+))
• (Optional: AOC-SIMSO(+))
• For Dedicated LAN, cable CBL-0177L must be used (cable sold separately)

Network Controllers

• Intel® 82575EB Dual-Port Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT support for fast, scaleable, and reliable networking

Graphics

• ATI ES1000 controller with 32 MB of video memory

Super I/O  • Winbond 83627HF chip
Clock Generator • ICS 401 chip
Input/Output
Serial ATA • Six Serial ATA ports
• Six SATA hard drives supported
IDE • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card
• Compact Flash (40-pin connector, IDE 1, single channel) slot
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy • 1 Floppy controller; 1.44 MB
LAN • 2x RJ45 LAN ports
USB • 2x USB rear ports
• 3x USB internal headers
• Total 5 USB 2.0 Compliant / 1.1 Compliant
VGA • 1 VGA port
Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Port / Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header

System Bios
Bios Type • 16Mb Flash EEPROM with Phoenix® BIOS
Bios Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3









Chassis
Form Factor • 2U Rackmount
Model SC825TQ-R700U
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 25.5" (648mm)
Weight • 55 lbs (24.9kg)
Available Color • Silver,Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• Power fail LED
Ports • 2x USB Ports + DB9 COM Port (optional)
Expansion Slot
Left Side • 1 Universal I/O (UIO) Slot
• 3 (x8) PCI-E Slots (Full-height / Full-length)
Right Side • 2 (x8) PCI-E Slots (Low-Profile)
Drive Bays
Hot-Swaps • 8x 3.5"SATA Hot-swap drive trays
• Supports up to 6x SATA hard drives
Peripheral Drives
DVD-ROM • Slim 8x DVD, 24x CD, DVD-ROM Drive
Floppy • Slim 1.44MB Floppy Drive (Optional)
SATA Backplane
  • 1x 2U SATA backplane
System Cooling
Fans • 3x 80mm 6300 RPM fans
Shroud • 1x Air Shroud
Power Supply
  700W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
AC Voltage • 100 - 240V, 60-50Hz, 10 - 4 Amp
+5V standby • 4 Amp
+12V • 57 Amp
With Power
Distributor
• +5V: 30 Amp
• +3.3V: 24 Amp
• -12V: 0.6 Amp
PC Health Monitoring
CPU • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
• 6 Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN • Total of eight 4-pin fan headers supporting up to 8 fans
• 8x fans with tachometer status monitoring
• Status monitor for speed control
• Support 3-pin fans (w/o speed control)
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x fan connectors
• PC temperture sensing logic
• Thermal Monitor 2 (TM2) support
• PECI
LED • CPU / System Overheat LED
• UID / Remote UID
Other Features • Chassis intrusion detection
• Chassis intrusion header
• SDDC
Operating Environment / Compliance
RoHS • RoHS Compliant 5/6, Server Exemption
Environmental Spec.

• Operating Temperature: 5°C to 35°C (41°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
