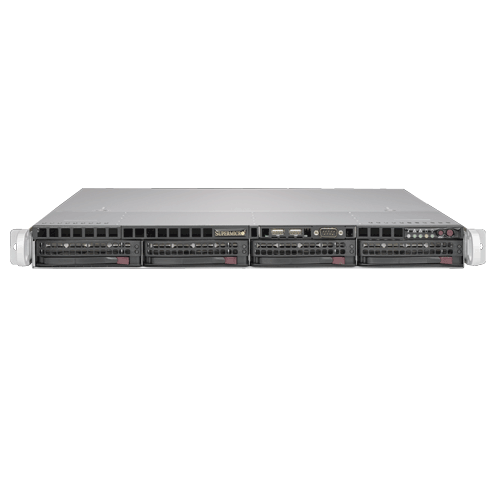

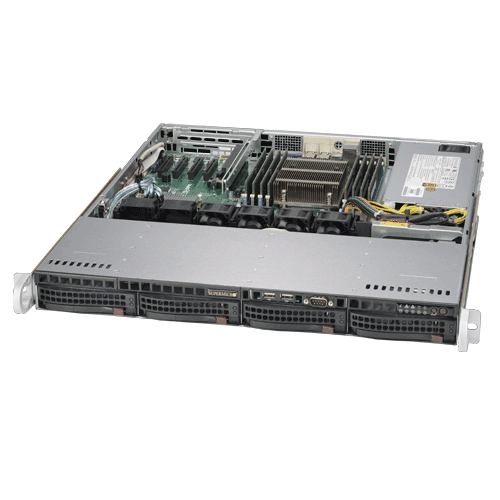

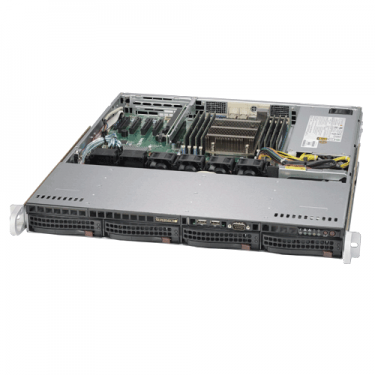

Supermicro1U Rackmount SuperServer SYS- 5018R-M

Call for price.

SKU:SYS-5018R-M

Quick Overview:

Key Features:
• Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Intel® C612 chipset
• 4x 3.5" Hot-swap SATA3 drive bays
• Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
• 1x PCI-E 3.0 x16 slot
• Intel® i350-AM2 Dual port GbE LAN
• Integrated IPMI 2.0 and KVM with Dedicated LAN
• I/O ports: 1x VGA, 1x COM, 2x USB 3.0, 4x USB 2.0
• 350W Gold Level Power Supply

Description

Details

SuperServer SYS-5018R-M

Supermicro SYS-5018R-M 1U Rackmount Barebone with 350W Gold Level Power Supply, Intel® C612 Chipset support 4x 3.5" Hot-swap SATA3 drive bays using Supermicro
Super X10SRi-F Server Motherboard and CSE-813MTQ-350CB 1U Rackmount Chassis.

Product SKU
SYS-5018R-M	• SuperServer 5018R-M (Black)

Motherboard
	Super X10SRi-F

Processor
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3 family (up to 145W TDP **) • Single Socket R3 (LGA 2011)
Core/Cache	• Up to 22 Cores† / Up to 55MB† Cache
Note	• † BIOS version 2.0 or above is required
	** Motherboard supports this maximum TDP. Please verify your system can thermally support

System Memory
Memory Capacity	• 8x 288-pin DDR4 DIMM slots • Up to 1TB ECC 3DS LRDIMM • Up to 512GB ECC LRDIMM • Up to 256GB ECC RDIMM
Memory Type	• 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes	• 3DS LRDIMM: 128GB • LRDIMM: 64GB, 32GB • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 (6Gbps) via C612 controller • RAID 0, 1, 10 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC with 10/100/1000Mbps
Network Connectivity	• Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	• ASPEED AST2400 BMC

Input/Output
SATA	• 10x SATA3 (6Gbps) ports
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 ports (rear) • 4x USB 2.0 ports (2 rear + 2 front)
Video	• 1x VGA port
Serial Port /Header	• 1x Fast UART 16550 serial port • 1x internal header
DOM	• 2x SuperDOM (Disk on Module) ports

PC Health Monitoring
Voltage	• Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
Fan	• Total of 6 fan headers supporting up to 6 fans • 6 fans with tachometer status monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU & chassis environment • CPU thermal trip support • I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI
LED	• CPU / System Overheat LED • Suspend static indicator LED • PECI
Other Features	• Chassis intrusion detection • Chassis intrusion header • Chipkill support • RoHS, Halogen Free

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-813MTQ-350CB

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 19.8" (503mm)
Gross Weight	• 17.6 lbs (8 kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LED	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED / Fan fail LED / UID LED

Expansion Slots
PCI-Express	• 1x PCI-E 3.0 x16 slot

Drive Bays
Hot Swap	• 4x 3.5" Hot-swap drive bays

Peripheral Drives
Optional	• 2x 2.5" Fixed drives internal

Backplane
Fans	• SAS/SATA HDD Backplane (SAS support requires optional SAS controller)

System Cooling
Fans	• 4x 40x28mm 4-pin PWM Cooling Fans

Power Supply
	350W AC power supply w/ PFC
AC Voltage	• 100-240 V, 50-60 Hz, 4.2-1.8 Amp
+5V	• 18 Amp
+5V standby	• 3 Amp
+12V	• 29 Amp
+3.3V	• 15 Amp
Certification	• Gold Certified

System Bios
Bios Type	• 8MB SPI Flash EEPROM with AMI BIOS
Bios Features	• DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3

Operating Environment/Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
