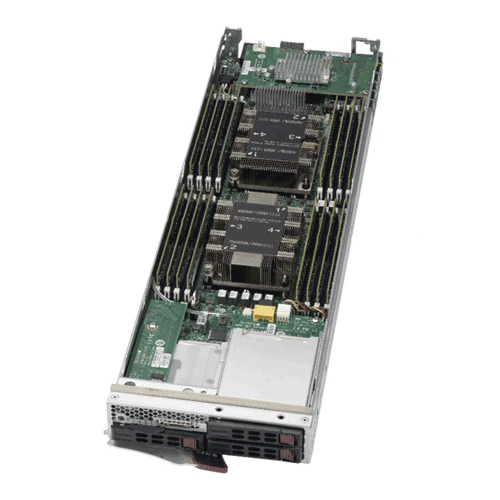

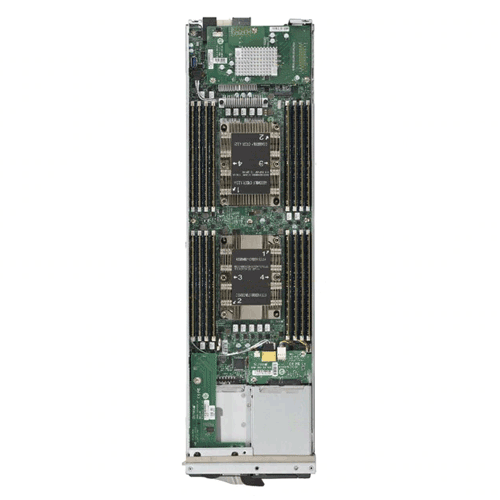

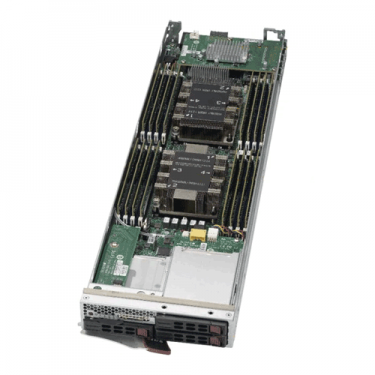

Supermicro Twin Blade SBI-4129P-T3N
|
Product SKU
| |
|---|---|
| SBI-4129P-T3N | • Processor Blade SBI-4129P-T3N (Black) |
|
Motherboard
| |
|---|---|
| • Super B11DPT-P | |
| Processor/Cache
|
|
|---|---|
| CPU | • Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s • Support CPU TDP 70-205W |
| Cores | • Up to 28 Cores with Intel® HT Technology |
|
System Memory
| |
|---|---|
| Memory Capacity | • 16 DIMM slots • Up to 2TB Registered ECC LRDIMM/RDIMM |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 |
|
On-Board Devices
| Chipset | • Intel® C622 chipset |
|---|---|
| SATA | • SATA3 (6Gbps) via Intel C622 RAID 0, 1, 5 |
| Network Controllers | • Dual 10G onboard |
| IPMI | • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) |
| Graphics |
• Aspeed AST2500 BMC |
|
System BIOS
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI® BIOS | BIOS Features | • Features
Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support |
|---|
|
Dimension and Weight
| |
|---|---|
| Height | • 6.5" |
| Width | • 1.75" |
| Depth | • 23.5" |
| Gross Weight | • 9.5 lbs (4.3 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons |
• Power On/Off button |
| LEDs | • Power LED |
| Connector | • SUV (Serial/USB/Video) & KVM Connector |
|
Drive Bays
| |
|---|---|
| Hot-swap |
• 2 Hot-Plug 2.5" NVMe + 1 SATA3 drive bays |
| M.2 | • 1 PCI-E x4 M.2 and 4 PCI-E x4 M.2 via Mezzanine card |
|
Input / Output
| |
|---|---|
| TPM | • 1 TPM Header |
| KVM |
• 1 Front Connector for SMCI KVM Card |
|
Operating Environment
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
