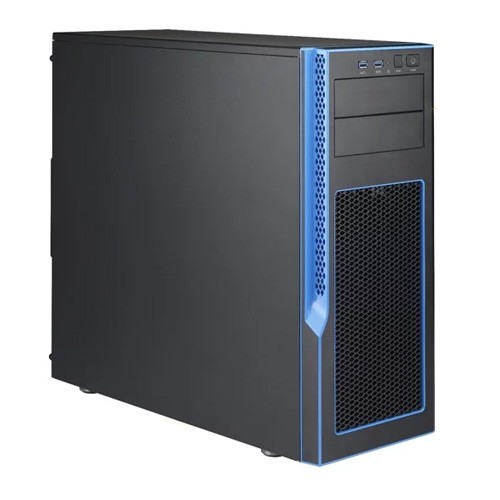

Supermicro Tower SuperServer SYS-5038K-i

Call for price.

SKU:SYS-5038K-i

Quick Overview:

Key Features:
• Single socket P (LGA 3647) Intel® Xeon® Phi
• Intel® C612 chipset
• Up to 384GB of memory; 6x DIMM slots
• 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x4
• 6x 3.5" and 4x 2.5" tool-less drive bays,
2x 5.25" peripheral bays
• Dual cooling zones, 6 fans total 1x 12cm rear exhaust fan
• 750W Multi-output Power Supply

Description

Details

Supermicro SuperServer SYS5038K-i

Product SKU
SuperWorkstation	• SYS-5038K-i (Black)
SYS-5038K-i-NF1	• Includes 1x 7210 processors
SYS-5038K-i-NF3	• Includes 1x 7230 processors
SYS-5038K-i-NF5	• Includes 1x 7250 processors
SYS-5038K-i-NF9	• Includes 1x 7290 processors

Motherboard
	• Super K1SPE

Processor/Cache
Host Processor	• Intel® Xeon® Phi™ x200 Processor, CPU TDP support up to 260W • Socket P (LGA 3647)
Cores	• Up to 72 Cores • 16GB MCDRAM on package

System Memory
Memory Capacity	• 6x 288-pin DDR4 DIMM slots • Up to 192GB ECC RDIMM
Memory Type	• 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit (RDIMM)
DIMM Sizes	• RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel C612 chipset
SATA	• SATA3 (6Gbps) via C612 controller • RAID 0, 1, 5, 10 support
Network Controllers	• Intel® i350 Dual Port Gigabit Ethernet • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC

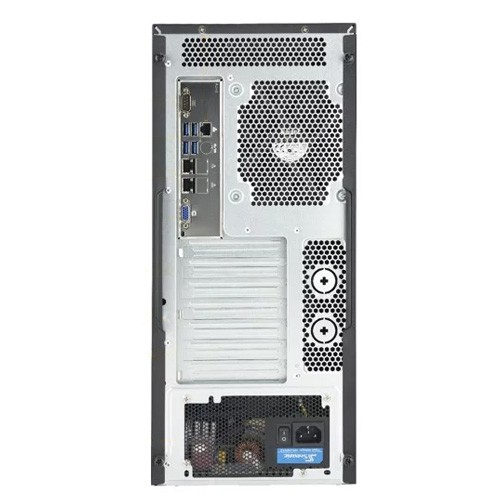

Input/Output
SATA	• 10 SATA3 (6Gbps) ports
LAN	• 2 RJ45 Gigabit Ethernet LAN ports • 1 Dedicated IPMI LAN port
USB	• 6 USB 3.0 ports (4 rear + 2 front)
Display	• 1 VGA port
COM Port/Header	• 1 COM Port (header)

Expansion Slots
PCI-Express	• 2 PCI-E 3.0 x16 slots • 1 PCI-E 3.0 x4 slot

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.7.1 • UEFI 2.3.1 • RTC (Real Time Clock) Wakeup

Chassis
Form Factor	• Tower
Model	• CSE-GS5A-753B

Dimension and Weight
Height	• 18.1" (460mm)
Width	• 7.9" (201mm)
Depth	• 19.4" (493mm)
Gross Weight	• 35 lbs (15.88 kg)
Available Colors	• Black

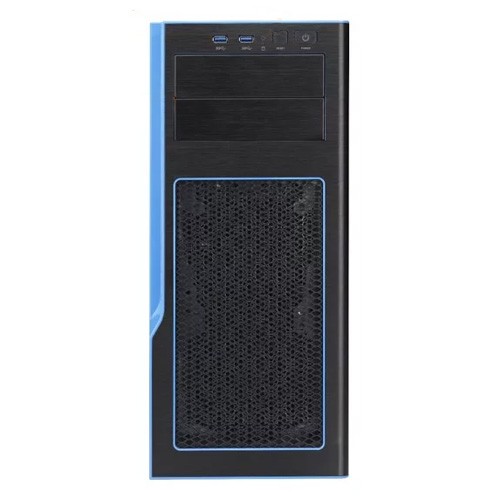

Front Panel
Buttons	• Power On/Off Button • Reset Button
LEDs	• Power LED • Hard drive activity LED
Ports	• 2x USB 3.0 ports

Drive Bays
Internal HDD	• 6x 3.5" and 4x 2.5" tool-less drive bays
Peripheral	• 2x 5.25" Peripheral drive bays

System Cooling
Fans	• 2x 12cm front chassis fans • 1x 8cm mid chassis fan • 1x 12cm rear chassis fans • 2x 12cm radiator exhaust fans
Liquid Cooling	• Closed loop Liquid Cooling unit (UL Tested)

Power Supply
	750W Multi-output Power Supply for Desktop, semi-modular cable output
AC Input	• 100-240Vac, 50-60Hz
+5V	• Max: 20A & Min: 0A
+12V	• Max: 62A & Min: 0.1A (100Vac-240Vac)
+3.3V	• Max: 20A & Min: 0A
+5V SB	• Max: 2.5A & Min: 0A
-12V	• Max: 0.3A
Certification	• Gold Certified

PC Health Monitoring
CPU	• +12V, +3.3V, +5V, +5V standby, 3.3V standby, Supports system management utility, System level control, VBAT
FAN	• Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for fan connectors • PECI

Operating Environment/Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
