Details
SuperServer SYS-2027R-72RFTP+
Supermicro 2027R-72RFTP+ 2U Rackmount Barebone with 920W Redundant Power Supplies, Intel® C602J chipset support 16x Hot-swap 2.5" SAS/SATA HDD Bays; 8x SAS2 ports
support via LSI 2208 using Supermicro Super X9DRW-7TPF+ Server Motherboard and CSE-219A-R920WB 2U Rackmount Chassis.
support via LSI 2208 using Supermicro Super X9DRW-7TPF+ Server Motherboard and CSE-219A-R920WB 2U Rackmount Chassis.
Product SKU |
|
|---|---|

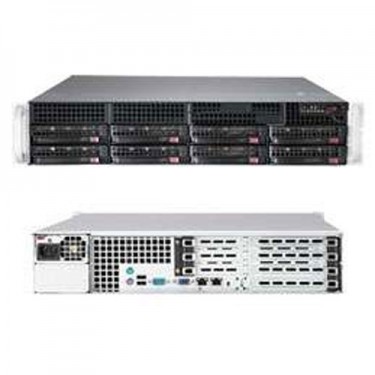

| SYS-6027R-TDT+ | • SuperServer 6027R-TDT+ (Black) |
Motherboard |
|
|---|---|
| Super X9DRD-iT+ | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket R (LGA 2011) |
| Cache | • Up to 30MB |
| System Bus | • QPI up to 8 GT/s |
| Note | • † BIOS version 3.0 or above is required * Please contact your Will Jaya sales representative for additional details |
System Memory |
|
|---|---|
| Memory Capacity |
• 24x 240-pin DDR3 DIMM slots • Up to 1.5TB DDR3 ECC LRDIMM • Up to 768GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM) |
| Memory Type | • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB • LRDIMM: 64GB, 32GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C602 chipset |
| SATA | • Via Cable for SATA controller • SATA 2.0 (3Gbps) & 3.0 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
| Network Controllers | • Intel® X540 Dual Port 10GBase-T |
| Graphics | • Matrox G200eW |
Input/Output |
|
|---|---|
| Serial ATA | • 2x SATA 3.0 ports (6Gbps) • 6x SATA 2.0 ports (3Gbps) |
| LAN |
• 2x RJ45 10GBase-T LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 9x USB 2.0 ports total (4x rear + 4x via header + 1x Type A) |
| VGA | • 1x VGA port |
| Serial Port/Header | • 1x Fast UART 16550 serial
|
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-825TQ-600WB |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.5" (647mm) |
| Weight | • 36 lbs (16.4kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button • UID button |
| LED | • Power status LED • HDD activity LED • 2x Network activity LEDs • System information (overheat/UID) LED |
Expansion Slot |
|
|---|---|
| PCI-Express | • 1x PCI-E 3.0 x16 Full-height, Half-length |
Drive Bays |
|
|---|---|
| Hot-Swaps | • 8x 3.5" Hot-swap SATA HDD trays |
Backplane |
|
|---|---|
| • 1x 2U SAS / SATA backplane | |
System Cooling |
|
|---|---|
| Fans | • 3x 80x80x38mm Counter-rotating PWM fans |
Power Supply with Power Distributor |
|
|---|---|
| 600W High-Efficiency Power Supply w/PMBus 1.2, I2C, PFC, and Digital Switching | |
| AC Input | • 100-240V, 50-60Hz, 7.5A max |
| DC Ouput | • +3.3V: 15A • +5V: 18A • +5V standby: 3A • +12V: 49A • -12V: 0.5A |
| Certification | • Platinum Certified |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
