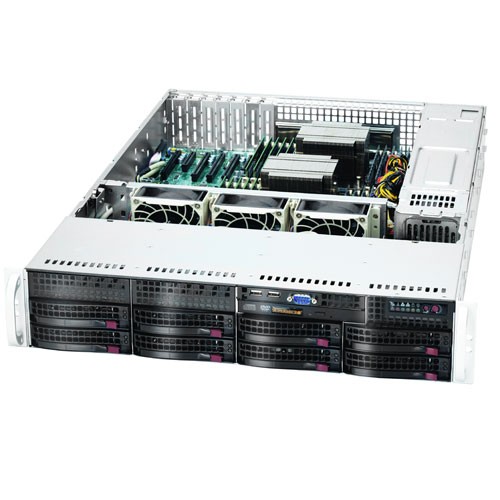

SuperServer SYS-6027R-72RFT
Supermicro 6027R-72RFT 2U Rackmount Barebone with 740W Redundant Power Supplies, Intel® C602 Chipset support 8x 3.5" Hot-swap HDD Bays; Support SAS2 HW RAID
via LSI 2208 using Supermicro Super X9DRH-7TF Server Motherboard and CSE-825TQ-R740LPB 2U Rackmount Chassis.
via LSI 2208 using Supermicro Super X9DRH-7TF Server Motherboard and CSE-825TQ-R740LPB 2U Rackmount Chassis.
Product SKU |
|
---|---|
SYS-6027R-72RFT | • SuperServer 6027R-72RFT (Black) |
Motherboard |
|
---|---|
Super X9DRH-7TF |
Processor/Cache |
|
---|---|
CPU | • Dual Socket R (LGA 2011) |
Cache | • Up to 30MB |
System Bus | • QPI up to 8 GT/s |
Note | • † BIOS version 3.0 or above is required |
System Memory |
|
---|---|
Memory Capacity |
• 16x 240-pin DDR3 DIMM slots • Up to 1TB DDR3 ECC LRDIMM • Up to 512GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM) |
Memory Type | • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
Memory Voltage | • 1.5 V, 1.35 V |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
---|---|
Chipset | • Intel® C602 chipset |
SATA | • Via Cable for SATA controller • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1, 5, 10 |
SAS | • SAS2 from LSI 2208 • HW RAID 0, 1, 5, 6, 10, 50, 60 support |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
Network Controllers | • Intel® X540 Dual Port 10GBase-T |
Graphics | • Matrox G200eW |
Input/Output |
|
---|---|
Serial ATA | • 2x SATA 3.0 ports (6Gbps) • 8x SATA 2.0 ports (3Gbps) |
SAS | • 8x SAS2 ports (6Gbps) |
LAN |
• 2x RJ45 10GBase-T ports • 1x RJ45 Dedicated IPMI LAN port |
USB | • 2x Front USB 2.0 + 4x Rear USB 2.0 ports • MB: 4x rear + 2x via header + 1x Type A |
VGA | • 1x VGA port |
Serial Port/Header | • 2x Fast UART 16550 port
|
Chassis |
|
---|---|
Form Factor | • 2U Rackmount |
Model | • CSE-825TQ-R740LPB |
Dimension and Weight |
|
---|---|
Height | • 3.5" (89mm) |
Width | • 17.2" (437mm) |
Depth | • 25.5" (648mm) |
Weight | • 52 lbs (23.6kg) |
Available Color | • Black |
Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset button |
LED | • Power status LED • HDD activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED |
Expansion Slot |
|
---|---|
PCI-Express | • 1 PCI-E 3.0 x16 slot |
Drive Bays |
|
---|---|
Hot-Swaps | • 8x 3.5" Hot-swap SAS2/SATA HDD trays |
Peripheral Drives |
|
---|---|
DVD-ROM | • Slim DVD-ROM drive (optional) |
Backplane |
|
---|---|
• 1x SAS2 / SATA backplane |
System Cooling |
|
---|---|
Fans | • 3x 8cm 7k RPM middle fans |
Power Supply |
|
---|---|
740W (1+1) Redundant high-efficiency power supply with PMBus | |
AC Input | • 100-240 V, 50-60 Hz, 9-3.5 Amp |
DC Ouput | • 4 Amp @ +5V standby • 61.7 Amp @ +12V |
With Power Distributor | • +5V: 30 Amp • +3.3V: 24 Amp • -12V: 0.6 Amp |
Certification | • Platinum Certified |
System Bios |
|
---|---|
Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
Bios Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
