SuperServer SYS-6027R-3RF4+

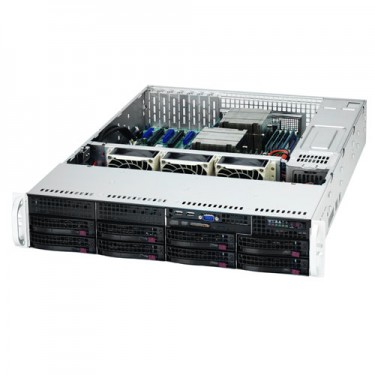

Supermicro 6027R-3RF4+ 2U Rackmount Barebone with 740W Redundant Power Supplies, Intel® C606 Chipset support 8x 3.5" Hot-swap SAS/SATA HDD Bays using Supermicro
Super X9DR3-LN4F+ Server Motherboard and CSE-825TQ-R740LPB and CSE-825TQ-R740LPB 2U Rackmount Chassis.
Super X9DR3-LN4F+ Server Motherboard and CSE-825TQ-R740LPB and CSE-825TQ-R740LPB 2U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-6027R-3RF4+ | • SuperServer 6027R-3RF4+ (Black) |
Motherboard |
|
|---|---|
| Super X9DR3-LN4F+ | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket R (LGA 2011) |
| Cache | • Up to 30MB |
| System Bus | • QPI up to 8 GT/s |
| Note | • † BIOS version 3.0 or above is required |
System Memory |
|
|---|---|
| Memory Capacity |
• 24x 240-pin DDR3 DIMM slots • Up to 1.5TB DDR3 ECC LRDIMM • Up to 768GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C606 chipset |
| SATA | • Via Cable for SATA controller • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1, 5, 10 |
| SAS | • SAS from C606 • RAID 0, 1, 10 support |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
| Network Controllers | • Intel® i350 Quad Port Gigabit Ethernet |
| Graphics | • Matrox G200eW |
Input/Output |
|
|---|---|
| Serial ATA | • 2x SATA 3.0 ports (6Gbps) • 4x SATA 2.0 ports (3Gbps) |
| SAS | • 8x SAS ports |
| LAN |
• 4x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 2x Front USB 2.0 + 4x Rear USB 2.0 ports • MB: 4x rear + 6x via header + 1x Type A |
| VGA | • 1x VGA port |
| Serial Port/Header | • 1x Fast UART 16550 port / 1 Header
|
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-825TQ-R740LPB |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.5" (648mm) |
| Weight | • 69 lbs (31.2 kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power status LED • HDD activity LED • 2x Network activity LEDs • System info. LED: UID indicator, fan fail/System Overheat • Power fail LED |
Expansion Slot |
|
|---|---|
| PCI-Express | • 4x PCI-E 3.0 x16 (low-profile, full-length) |
Drive Bays |
|
|---|---|
| Hot-Swaps | • 8x 3.5" Hot-swap SAS / SATA HDD trays |
Peripheral Drives |
|
|---|---|
| DVD-ROM | • Slim DVD-ROM drive (optional) |
Backplane |
|
|---|---|
| • 1x SAS2 / SATA backplane | |
System Cooling |
|
|---|---|
| Fans | • 3x 8cm 7k RPM middle fans |
Power Supply |
|
|---|---|
| 740W (1+1) Redundant high-efficiency power supply with PMBus | |
| AC Input | • 100-240 V, 50-60 Hz, 9-3.5 Amp |
| DC Ouput | • 4 Amp @ +5V standby • 61.7 Amp @ +12V |
| With Power Distributor | • +5V: 30 Amp • +3.3V: 24 Amp • -12V: 0.6 Amp |
| Certification | • Platinum Certified |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
