Supermicro 2U Rackmount SYS-6027AX-72RF-HFT3

More Views

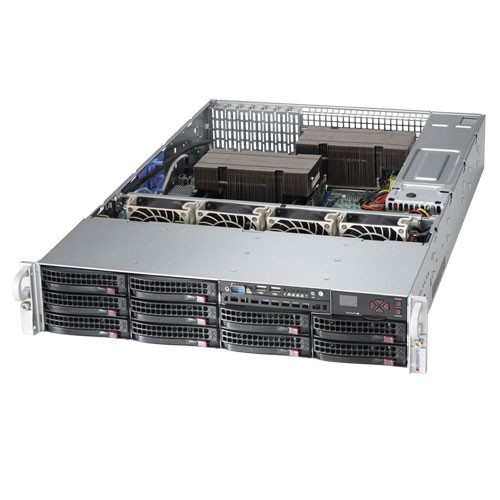

Supermicro SYS-6027AX-72RF-HFT3 2U Rackmount Server Barebone

Call for price.

SKU:SYS-6027AX-72RF-HFT3

Quick Overview:

Key Features:
• Cooling Optimized Solution
• Supports Hyper-Speed
• Qualified low latency NICs
• Low latency/jitter optimization guide
• Dual Intel® Xeon® processor E5-2687W v2 (Ivy Bridge)
• Up to 512GB DDR3 1600MHz ECC Registered DIMM; 16x DIMM slots
   Default: 8x 8GB 1866MHz DDR3 RDIMM
• 2x PCI-E 3.0 x16, 3x PCI-E 3.0 x8, 1x UIO PCI-E 3.0 x8 (for SMC UIO)
   or 1x PCI-E 2.0 x4 (in x8)
• I/O ports: 2 GbE LAN, 4 USB 3.0, 2 HD/AC97, 1 IPMI dedicated LAN ports,
   and 2 IEEE 1394 Header
• 8x 3.5" Hot-swap HDD Bays Support SAS2 HW RAID via LSI 2208; 2x 3.5"
   Hot-swap SATA3 HDD Bays
• 1280W Redundant Power Supplies Platinum Level (95%)

Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact your Will Jaya sales rep for special requirements.

Description

Details

SuperServer 6027AX-72RF-HFT3

Supermicro SYS-6027AX-72RF-HFT3 2U Rackmount Barebone with 1280W Redundant Power Supplies, Intel® C602 Chipset Support 8x 3.5" Hot-swap HDD Bays Support SAS2
HW RAID via LSI 2208; 2x 3.5" Hot-swap SATA3 HDD Bays using Supermicro Super X9DAX-7F-HFT Server Motherboard and CSE-829BTQ-R1K28LPB 2U Rackmount Chassis.

Product SKU
SYS-6027AX-72RF-HFT3	• SuperServer 6027AX-72RF-HFT3 (Black)

Motherboard
	Super X9DAX-7F-HFT

Processor/Cache
CPU	• Dual Intel® Xeon® processor E5-2687W v2 (Ivy Bridge) (up to 150W TDP) • Dual Socket R (LGA 2011)
Cache	• Up to 20MB
System Bus	• QPI up to 8 GT/s
Note	• † BIOS version 3.0 or above is required

System Memory
Memory Capacity	• 8x 8GB DDR3 ECC 1866MHz RDIMM (Default) • 16x 240-pin DDR3 DIMM slots • Supports up to 512 GB DDR3 ECC Registered memory (RDIMM)
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602 chipset
SATA	• SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1
SAS	• SAS2 from LSI 2208 • RAID 0, 1, 5, 6, 10, 50, 60 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC
Network Controllers	• Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Audio	• RealTek ALC889 7.1 High Definition Audio with S/PDIF header
Graphics	• Matrox G200eW

Input/Output
Serial ATA	• 2x SATA 3.0 ports (6Gbps) • 8x SATA 2.0 ports (3Gbps)
SAS	• 8x SAS2 ports (6Gbps)
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 4x USB 3.0 (2 front, 2 rear) and 4x USB 2.0 ports
Audio	• Line-in / Line-out / Microphone Ports
Video	• 1x VGA port
Serial Port/Header	• 2x Fast UART 16550 ports

Chassis
Form Factor	• 2U Rackmount
Model	• CSE-829BTQ-R1K28LPB

Dimension and Weight
Height	• 3.5" (89mm)
Width	• 17.2" (437mm)
Depth	• 27.7" (704mm)
Weight	• 52 lbs (23.6kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LED	• Power status LED • HDD activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED

Expansion Slot
PCI-Express	• 2 PCI-E 3.0 x16 slots • 3 PCI-E 3.0 x8 slots • 1 UIO PCI-E 3.0 x8 (for SMC UIO) or 1 PCI-E 2.0 x4 (in x8) slot

Drive Bays
Hot-Swaps	• 10x 3.5" Hot-swap SAS/SATA HDD trays

Display
LCD Screen	• Front panel LCD display

Backplane
	• 1x SAS2 / SATA backplane

System Cooling
Fans	• 4x PWM fans w/ optimal fan speed control
Heatsink	• 2x Passive CPU Heat Sink

Power Supply
	1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input	• 1000W Output @ 100-140V, 8-12A, 50-60Hz • 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Ouput	• 1000W: +12V/83A; +5Vsb/4A • 1280W: +12V/106.7A, +5Vsb/4A
Certification	• Platinum Certified

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
