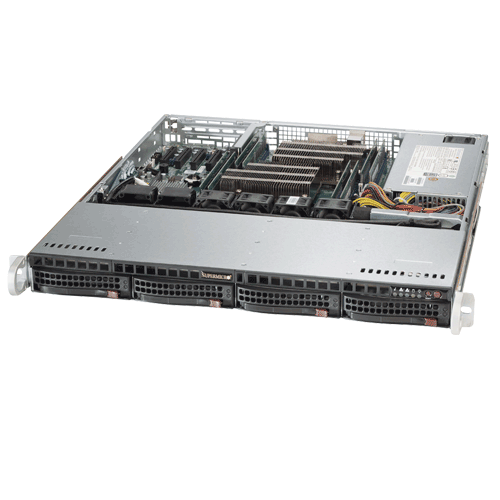

  • Supermicro SYS-6018R-MT Angle

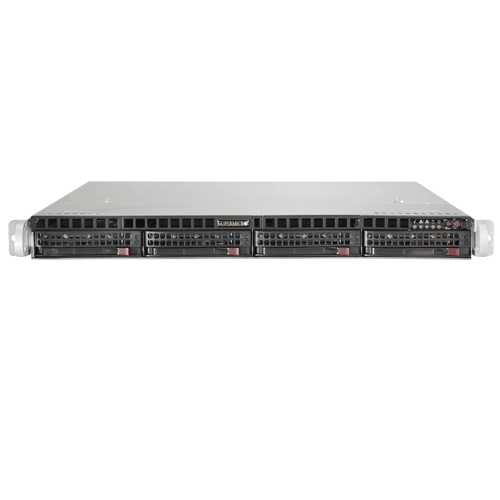

  • Supermicro SYS-6018R-MT Front

Supermicro SYS-6018R-MT 1U Rackmount SuperServer

Call for price.
SKU:SYS-6018R-MT

Quick Overview:

Key Features:
• Data Center Optimized
• Short Depth
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
• 1x PCI-E 3.0 x8 (FHHL) slot
• 4x 3.5" Hot-swap SATA3 Drive Bays
• Intel® i210 Dual-port 1GbE LAN
• I/O ports: 1x VGA, 1x COM, 2x USB 3.0, 2x USB 2.0
• 440W/480W High-efficiency Power Supply, Platinum Level Certified
• 2x SuperDOM (Disk on Module) ports
• IPMI 2.0 + KVM with Dedicated LAN

*Note: SYS-6018R-MT-BULK Available as Cost Optimized, Bulk Packing - 10 systems in one carton

Details

Supermicro SYS-6018R-MT

Data Center Optimized Server. Supermicro 6018R-MT 1U Rackmount Server Barebone with 440W/480W High-efficiency Power Supply, 4x 3.5" Hot-swap SATA3 Drive Bay, 2xLAN with
Supermicro Super X10DRL-i Server Motherboard and CSE-813MFTQ-441CB 1U Rackmount Chassis Short Depth.
Product SKU
• SuperServer 6018R-MT (Black)
Motherboard
       Super X10DRL-i
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 135W TDP) *
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
Note • † BIOS version 2.0 or above is required
  • Please contact WillJaya Technical support for additional information
System Memory
Memory Capacity • 8x 288-pin DDR4 DIMM slots
• Up to 1TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Connectivity • Intel® i210 Gigabit Ethernet controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8211E PHY (dedicated IPMI)
Video • ASPEED AST2400 BMC
Input/Output
SATA • 4x SATA3 (6Gbps) ports
• I-SATA 4 & I-SATA 5 support SATA DOM
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 4x USB 3.0 ports (2 rear, 2 headers)
• 5x USB 2.0 ports (2 rear, 2 headers, 1 Type A)
Video • 1x VGA port
Serial Header Port • 2x COM ports (1 rear, 1 header)
DOM • 2x SuperDOM (Disk on Module) ports
Management
Software • Intel® Node Manager 3.0
• IPMI 2.0
• SuperDoctor® 5
• SSM
• SPM
• SUM
• Watch Dog
Power Configuration • ACPI Power Management
• Power-on mode for AC power recovery
Chassis
Form Factor • 1U Rackmount
Model • CSE-813MFTQ-441CB
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 19.8" (503mm)
Gross Weight • 36 lbs (16.33 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset Button
LED • Power Status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED
Expansion Slots
PCI-Express • 1x PCI-E 3.0 x8 (FHHL) slot
Drive Bays
Hot Swap • 4x 3.5" Hot-swap SATA3 Drive Bays
Backplane
  • SAS2/SATA3 Backplane
System Cooling
Fans • 4x 4cm fans with optimal fan speed control
Power Supply with Power Distributor
  440W/480W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC
AC Input • 100-140V, 50-60Hz, 5.5-4A
• 180-240V, 50-60Hz, 3.5-2.5A
DC Output • +3.3V: 15A
• +5V: 18A
• +5V standby: 3A
• +12V: 49A : 35.8A at 100-140Vac, 39.1A at 180-240Vac
Certification • Platinum Certified (94%)
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features • Plug and Play (PnP)
• PCI 2.3
• ACPI 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
