  • Supermicro 1U Rackmount SYS-6015B-8+B

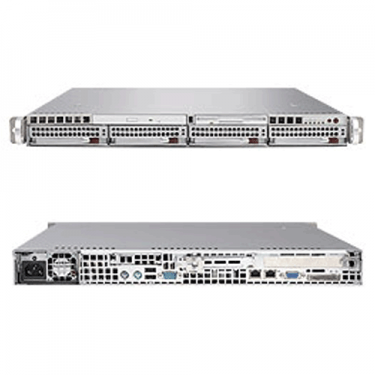

Supermicro SYS-6015B-8+B 1U Rackmount SuperServer

Call for price.
SKU:SYS-6015B-8+B

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 667 / 1066 /
   1333 MHz FSB
• Up to 64GB DDR2 667 & 533 SDRAM Fully Buffered DIMM (FB-DIMM)
• Left Universal Slot: 1 64-bit 133MHz PCI-X OR 1 (x8) PCI-Express
• Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
• Zero Channel RAID Support
• 4 x 3.5" Ultra320 SCSI Hot-swap Drive Bays
• 700W High-efficiency Power Supply


Details

SuperServer SYS-6015B-8+V / SYS-6015B-8+B 1U Rackmount

Supermicro SYS-6015B-8+V / SYS-6015B-8+B 1U Rackmount with 700W High-efficiency Power Supply, Intel® 5000P (Blackford) chipset, support 4x 3.5" Hot-swap Ultra320/160 SCSI
drive bays, using Supermicro Super X7DBR-8+ Motherboard and SC815S-700V Rackmount Chassis


Product SKU
• SuperServer 6015B-8+V (Silver)
• SuperServer 6015B-8+B (Black)
Motherboard
        Super X7DBR-8+
Processor/Cache
CPU

• Dual 771-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz
• Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz

System Bus • 1333 / 1066 MHz system bus
Operating System Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Eight 240-pin DIMM sockets
• Supports up to 64 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
• Dual branch memory bus
• Memory must be populated in pairs
Memory Type • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 512 MB, 1GB, 2GB, 4GB
Memory Voltage • 1.8V only
• 1.5V (AMB)
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset

• Intel® 5000P (Blackford) chipset
• MCH + PXH + ESB2

SCSI • Adaptec AIC-7902 Controller
• Dual-Channel Ultra320 SCSI (Host RAID only supports 4 drives)
• Host RAID 0, 1, & 10 support
RAID • Support for Zero-Channel RAID with Supermicro All-In-One-ZCR Card: AOC-SOZCR1
• Optional Card not included
• RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• 200-pin IPMI SO-DIMM Socket (SIMSO)
• (Optional: AOC-SIMSO(+))
Network Controllers  • Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics • ATI ES1000 controller with 16 MB of video memory
Super I/O • Winbond 83627HF chip
Input/Output
IDE • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card
• Compact Flash (40-pin connector, IDE 1, single channel) slot
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy • 1 Floppy controller; 1.44 MB, 2.88 MB
LAN • 2x RJ45 LAN ports
USB

• 3x USB rear ports
• 3x USB internal headers
• Total 6 USB 2.0 Compliant / 1.1 Compliant

VGA • 1x VGA Port
Keyboard / Mouse • PS/2 keyboard and mouse ports
Serial Port / Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header

Chassis
Form Factor • 1U Rackmount
Model SC815S-700V
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 25.6" (650mm)
Weight • 38.5 lbs (17.5kg)
Available Color • Beige, Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power LED
• Hard Drive Activity LED
• 2x Network activity LEDs
• System Overheat LED
Expansion Slots
Universal Slot

• 1 64-bit 133MHz PCI-X OR
• 1 (x8) PCI-e Slot

Drive Bays
Hot Swap

• 4x 3.5" Hot-swap Ultra320/160 SCSI drive bays

Peripheral Drives
DVD-ROM

• Slim 8x DVD, 24x CD, DVD-ROM drive

SCSI Backplane


• 1U SCSI Backplane w/ Enclosure Management (SAF-TE)

System Cooling
Fans • 4x Cooling Fans
Shroud • 1x Air Shroud
Power Supply
  700W AC-DC power supply and power distributor w/ PFC
AC Input • 100 - 240V, 60-50Hz, 10 - 4 Amp
+5V stand by • 4 Amp
+12V • 57 Amp
With Power
Distributor
• +5V: 24 Amp
• +3.3V: 21 Amp
• -12V: 0.6 Amp
System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features • Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• PCI 2.2
• PCI-X 1.0
• ACPI 1.0
• USB Keyboard support
• Hardware BIOS Virus protection
Operating Environment / Compliance
Environmental Spec.

• Operating Temperature: 10° to 35°C (50° to 95°F)
• Non-operating Temperature: -40° to 70°C (-40° to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
