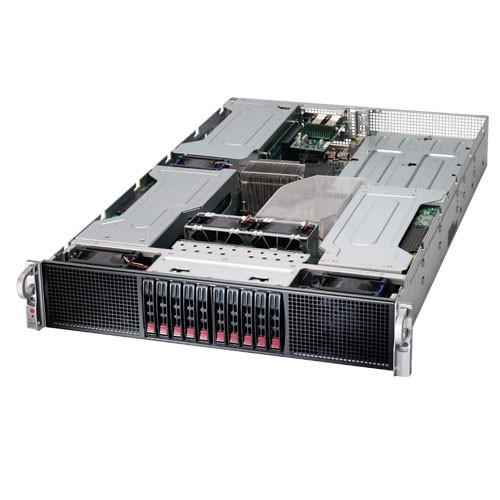

  • Supermicro 2U Rackmount SYS-2027GR-TRFH - Angle

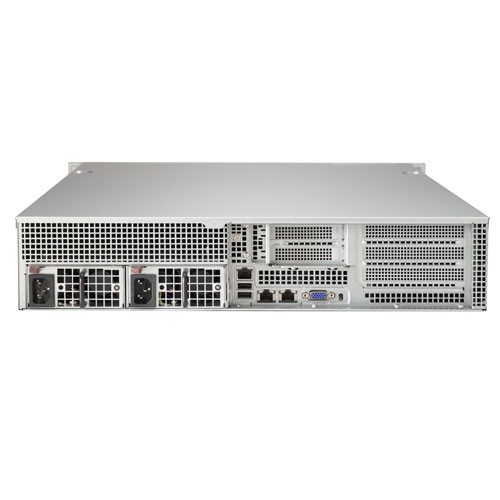

  • Supermicro 2U Rackmount SYS-2027GR-TRFH - Rear

Supermicro 2U Rackmount GPU Server SYS-2027GR-TRFH

Call for price.
SKU:SYS-2027GR-TRFH

Quick Overview:

Key Features:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and
   E5-2600 v2 family†
• Up to 512GB ECC DDR3, up to 1866MHz; 8x DIMM slots
• 4x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards, opt.), 1x PCI-E 3.0 x8
   (in x16) slot, 1x PCI-E 2.0 x4 (in x16) slot
• Integrated IPMI 2.0 and KVM with Dedicated LAN
• Intel® i350 Dual-Port GbE Controller
• 10x Hot-swap 2.5" SAS/SATA Drive Bays
• 1800W Redundant Power Supply Platinum Level (94%+)
• 5x heavy duty cooling fans
• Smart server management tools

Details

SuperServer SYS-2027GR-TRFH

Supermicro SYS-2027GR-TRFH 2U Rackmount Barebone with 1800W Redundant Power Supplies, Intel® C602 Chipset support 10x Hot-swap 2.5" SATA Drive Bays using Supermicro
X9DRG-HF Server Motherboard and CSE-218G-R1800B 2U Rackmount Chassis.

Product SKU
• SuperServer 2027GR-TRF (Black)
Motherboard
        Super X9DRG-HF
Processor/Cache
CPU

• Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 130W TDP)

Cache

• Up to 30MB

System Bus

• QPI up to 8 GT/s

GPU/Xeon Phi
Support

• M2090/M2075, up to 130W CPU at 35°C
• K10/K20/K20X/K1/K2/K40M (Kepler), up to 130W CPU at 35°
• Xeon Phi 5110P, up to 130W CPU at 35°C

Note



† BIOS version 3.0 or above is required

System Memory
Memory Capacity • 8x 240-pin DDR3 DIMM slots
• Up to 512GB DDR3 ECC LRDIMM
• Up to 256GB DDR3 ECC Registered memory (RDIMM)
• Up to 48GB DDR3 ECC and non-ECC UDIMM
Memory Type • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage • 1.5 V, 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® C602 Chipset
AHCI SATA • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC
Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)
  (Both CPUs need to be installed for LAN ports 1 and 2 to be enabled)

Video

• Matrox G200eW

Input/Output
SATA • 2 SATA 3.0 ports (6Gbps)
• 8 SATA 2.0 ports (3Gbps)
LAN • 2 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 2.0 ports
Video • 1 VGA Connector
Keyboard / Mouse • 1 PS/2 Keyboard/Mouse port
Serial Port

• 1 Serial header

System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI® BIOS
Bios Features

• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.3
• UEFI
• RTC (Real Time Clock) Wakeup

Chassis
Form Factor • 2U Rackmount
Model CSE-218G-R1800B
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 31" (787mm)
Weight • 54 lbs (24.5 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power status LED
• HDD activity LED
• 2x Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
Expansion Slot
PCI-Express

• 4x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards, option)
• 1x PCI-E 3.0 x8 (in x16) low-profile slot
• 1x PCI-E 2.0 x4 (in x16) slot

Drive Bays
Hot-Swaps • 10x 2.5" Hot-swap drive bays
System Cooling
Fans • 5x 8cm heavy duty fans with optimal fan speed control
Power Supply
  1800W (1+1) Redundant 1800W power supply with PMBus
AC Input • 1000W Output @ 100-120V, 12-10A, 50-60Hz
• 1200W Output @ 120-140V, 12-10A, 50-60Hz
• 1800W Output @ 200-240V, 10-8.5A, 50-60Hz
DC Output • 1000W: +12V/84A; +5Vsb/4A
• 1200W: +12V/100A; +5Vsb/4A
• 1800W: +12V/150A; +5Vsb/4A
Certification • Platinum Certified (94%)
PC Health Monitoring
CPU • Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
• CPU Core 6-Phase-switching voltage regulator
FAN • Total of five 4-pin PWM fans
• 5x fans with tachometer monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 10x Fan Connectors
• PSU I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI
LED • Power Fail / Overheat LED
• Suspend-state Indicator LED
• UID LED
Other Features • SDDC Support
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec.

• Operating Temperature: 5°C to 35°C (41°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
