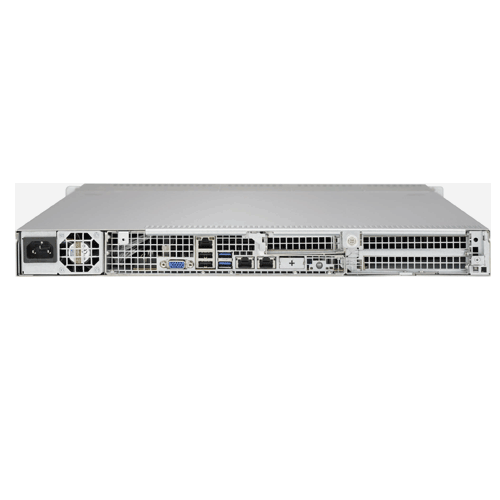

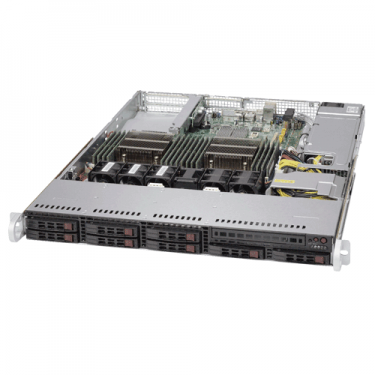

Supermicro SYS-1028R-TDW
Supermicro 1028R-TDW DP Xeon E5-2600 v3 600W 16 DIMM, up to 1TB DDR4 8x 2.5 SATA3 Data Center Optimized 1U Rackmount Server Barebone
Product SKU |
|
---|---|
SYS-1028R-TDW | • SuperServer 1028R-TDW (Black) |
Motherboard |
|
---|---|
Super X10DDW-i |
Processor/Cache |
|
---|---|
CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011) |
Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
System Bus | • QPI up to 9.6 GT/s |
Note | • † BIOS version 2.0 or above is required |
• Please contact WillJaya Technical support for additional information |
System Memory |
|
---|---|
Memory Capacity |
• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM |
Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
DIMM Sizes |
• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
Memory Voltage | • 1.2 V |
Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
---|---|
Chipset | • Intel® C612 chipset |
SATA | • SATA3 (6Gbps); RAID 0, 1, 5, 10 |
IPMI |
• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
Network Connectivity | • Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8211E PHY (dedicated IPMI) |
Video | • ASPEED AST2400 BMC |
Input/Output |
|
---|---|
SATA | • 8x SATA3 (6Gbps) ports • I-SATA 4 & I-SATA 5 support SATA DOM |
LAN |
• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
USB |
• 3x USB 3.0 ports (2 rear, 1 Type A) • 4x USB 2.0 ports (2 rear, 2 headers) |
Video | • 1x VGA port |
Serial Header Port | • 1x COM port (header) |
DOM | • 2x SuperDOM (Disk on Module) ports |
Management |
|
---|---|
Software |
• Intel® Node Manager • IPMI 2.0 • SuperDoctor® 5 • SSM • SPM • SUM • Watch Dog |
Power Configuration |
• ACPI / APM Power Management • Power-on mode for AC power recovery |
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • CSE-113TQ-600WB |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 23.5" (597mm) |
Gross Weight | • 46 lbs (20.9kg) |
Available Color | • Black |
Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset Button • UID button |
LED |
• Power Status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
Expansion Slots |
|
---|---|
PCI-Express |
• 2x PCI-E 3.0 x16 (FHHL) slots • 1x PCI-E 3.0 x8 (LP) slot |
Drive Bays |
|
---|---|
Hot Swap | • 8x 2.5" Hot-swap SATA3 Drive Bays |
Peripheral Drives |
|
---|---|
DVD-ROM | • 1x Slim DVD-ROM drive (optional) |
Backplane |
|
---|---|
• SAS2/SATA3 Backplane |
System Cooling |
|
---|---|
Fans | • 5x 4cm fans with optimal fan speed control |
Power Supply |
|
---|---|
600W High-Efficiency Power Supply w/PMBus 1.2, I2C, PFC, and Digital Switching | |
AC Input | • 100-240V, 50-60Hz, 7.5A max |
DC Output | • +3.3V: 15A • +5V: 18A • +5V standby: 3A • +12V: 49A • -12V: 0.5A |
Certificate | • Platinum Certified |
System Bios |
|
---|---|
Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
Bios Features |
• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1 |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. |
• Operating Temperature:
5°C to 40°C (41°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
