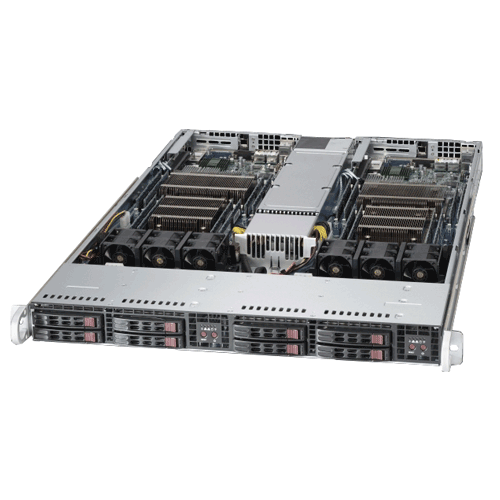

  • Supermicro SYS-1027TR-TQF Angle
  • Supermicro SYS-1027TR-TQF Front
  • Supermicro SYS-1027TR-TQF Rear

Supermicro SYS-1027TR-TQF 1U Rackmount

Call for price.
SKU:SYS-1027TR-TQF

Quick Overview:

Key Features:
Two systems (nodes) in a 1U form factor. Each node supports the following:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and
   E5-2600 v2 family†
• Up to 512GB ECC DDR3, up to 1866MHz; 8x DIMM slots
• Expansion slots: 1x PCI-E 3.0 x16 LP
• I/O ports: 1 VGA, 1 COM, 2 GbE LAN, 2 USB 2.0 ports, 1 dedicated LAN
   for system management, 1 InfiniBand port with Connect-X QDR speed
• 4x 2.5" Hot-swap SATA HDD Bays (2x SATA3 and 2x SATA2)
• 1280W Digital Switching Power Supply Platinum Level (95%)


Details

SuperServer 1027TR-TQF

Supermicro SYS-1027TR-TQF 1U Rackmount Server Barebone with 1280W Digital Switching Power Supply Platinum Level (95%), 4x 2.5" Hot-swap SATA HDD Bays (2x SATA3 and 2x
SATA2) using Supermicro Super X9DRT-IBQF Server Motherboard and CSE-809BTQ-1K28B 1U Rackmount Server Chassis.

Product SKU
• SuperServer 1027TR-TQF (Black)
Motherboard
        Super X9DRT-IBQF
Processor/Cache
CPU • Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 130W TDP)
Cache • Up to 30MB
System Bus • QPI up to 8 GT/s
Note • † BIOS version 3.0 or above is required
  • Please contact WillJaya Technical support for additional information
System Memory
Memory Capacity • 8x 240-pin DDR3 DIMM slots
• Up to 512GB DDR3 ECC LRDIMM
• Up to 256GB DDR3 ECC Registered memory (RDIMM)
• Up to 64GB DDR3 ECC and non-ECC UDIMM
Memory Type • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated
DIMMs
DIMM Sizes • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage • 1.5 V, 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® C602J Chipset
Infiniband • Mellanox ConnectX-3 QDR Infiniband 40Gbps Controller
SATA • Via Cable for SATA controller
• SATA 2.0 (3Gbps) & 3.0 (6Gbps) with RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC
Network Connectivity • Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics • Matrox G200eW
Input/Output
Serial SATA

• 2x SATA 3.0 ports (6Gbps)
• 4x SATA 2.0 ports (3Gbps)

LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 3x USB 2.0 ports (2x rear + 1x Type A)
VGA • 1x VGA port
Serial Port/Header • 1x Fast UART 16550 ports (rear/header)
Infiniband • 1x external QSFP Infiniband connector




Chassis
Form Factor • 1U Rackmount
Model CSE-809BTQ-1K28B
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 27.75" (705mm)
Gross Weight • 40 lbs (18.1kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• UID button
LED • Power status LED
• HDD activity LED
• Information LED
• 2x Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express • 1x PCI-E 3.0 x16 Low-profile
Drive Bays (per Node)
Hot Swap • 4x 2.5" Hot-swap SATA HDD trays
Backplane
  • 1x 1U SAS / SATA backplane
System Cooling (per Node)
Fans • 3x 4cm counter-rotating fans w/ optimal fan speed control
Power Suplly w/Digital Switching Control & PMBus 1.2
  1280W High-Efficiency (95%+) power supply
AC Input • 1000W Output @ 100-140V, 12-8A, 50-60Hz
• 1280W Output @ 180-240V, 8-6A, 50-60Hz
DC Output • 1000W: +12V/83A; +5Vsb/4A
• 1280W: +12V/106.7A, +5Vsb/4A
Certification • Platinum Certified
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
