Details

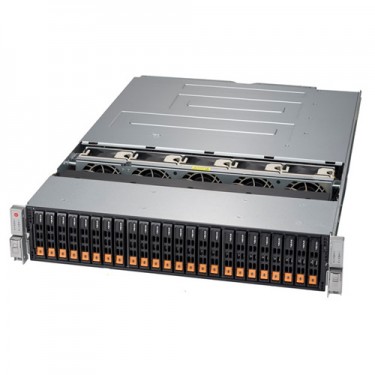

Supermicro SuperStorage SBB SSG-2029P-DN2R24L (Complete System Only)
|
Product SKU
| |
|---|---|
| SSG-2029P-DN2R24L | • SuperServer 2029P-DN2R24L (Black) |
|
Motherboard
| |
|---|---|
| • Super X11DSN-TS | |
| Processor/Cache
|
|
|---|---|
| CPU | • Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s • Support CPU TDP 70-205W |
| Cores | • Up to 28 Cores with Intel® HT Technology |
|
System Memory (per Node)
| |
|---|---|
| Memory Capacity | • 12 DIMM slots • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 SDRAM |
|
On-Board Devices (per Node)
| Chipset | • Intel® C624 series chipset |
|---|---|
| SATA | • SATA3 (6Gbps); RAID 0, 1 |
| Network Controllers | • Intel® X557-AT2 Dual Port 10GBase-T • Dual 10G private Ethernet between controller nodes |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | • ASPEED AST2500 BMC |
|
Input/Output (per Node)
| LAN | • 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port |
USB | • 2 USB 3.0 ports (rear) • 1 Type A |
Video | • 1 VGA D-Sub Connector port |
|---|---|
| Serial Port/Header | • 2 COM Ports (1 rear, 1 header) |
|
System BIOS
| BIOS Type | • AMI UEFI |
|---|
|
Management
| Software | • Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • NMI • SSM, SPM, SUM • SuperDoctor® 5 • Watchdog |
|---|
|
PC Health Monitoring
| CPU | • Monitors for CPU Cores, Chipset Voltages, Memory. • 4+1 Phase-switching voltage regulator |
FAN | • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
|---|---|
| Temperature |
• Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
|
Chassis
| |
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-227TS-R2K05P3 |
|
Dimension and Weight
| |
|---|---|
| Width | • 17.2" (437mm) |
| Height | • 3.5" (89mm) |
| Depth | • 25.6" (650mm) |
| Gross Weight | • 67 lbs (30.4 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power status LED |
|
Expansion Slots (per Node)
| |
|---|---|
| PCI-Express | • 2 PCI-E 3.0 x16 HHHL slots |
| M.2 |
• M.2 Interface: 1 PCI-E 3.0 x4 |
|
Drive Bays
| |
|---|---|
| Hot-swap |
• 24 U.2 Hot-swap dual-port NVMe drive bays |
|
Backplane
| |
|---|---|
• 2U 24-Port SBB Backplane for 24x 2.5" Dual-Port NVMe SSD |
|
|
System Cooling
| |
|---|---|
| Fans | • 5x 8cm high-performance PWM fans |
|
Power Supply
| |
|---|---|
| • 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | • 1000W/1800W/1980W/2000W |
| Dimension (W x H x L) |
• 73.5 x 40 x 265 mm |
| Input | • 100-120Vac / 12.5-9.5A / 50-60Hz • 200-220Vac / 10-9.5A / 50-60Hz • 220-230Vac / 10-9.8A / 50-60Hz • 230-240Vac / 10-9.8A / 50-60Hz • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) |
| +12V | • Max: 83.3A / Min: 0A (100-120Vac) • Max: 150A / Min: 0A (200-220Vac) • Max: 165A / Min: 0A (220-230Vac) • Max: 166.7A / Min: 0A (230-240Vac) • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) |
| 12Vsb | • Max: 2.1A / Min: 0A |
| Output Type | • 25 Pairs Gold Finger Connector |
| Certification | • Titanium Level |
|
Operating Environment
| |
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F) |
