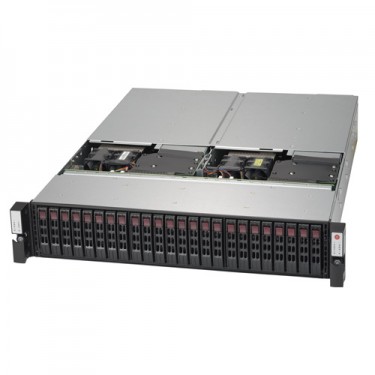

  • Supermicro SuperStorage SBB SSG-2028R-DE2CR24L - Angle
  • Supermicro SuperStorage SBB SSG-2028R-DE2CR24L - Top
  • Supermicro SuperStorage SBB SSG-2028R-DE2CR24L - Front
  • Supermicro SuperStorage SBB SSG-2028R-DE2CR24L - Rear02
  • Supermicro SuperStorage SBB SSG-2028R-DE2CR24L - Rear

Supermicro SuperStorage SBB SSG-2028R-DE2CR24L (Complete System Only)

Call for price.
SKU:SSG-2028R-DE2CR24L

Quick Overview:

Key Features:
• Two hot-pluggable systems (nodes)
• Intel® Xeon® processor
• Up to 1TB of memory
• 24 shared hot-swap 2.5" SAS drive bay with SES2
• 8x 4cm PWM counter rotating cooling fans
• 1200W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (including 4 CPUs, 4 DIMMs, 1 HDD). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro SuperStorage SBB SSG-2028R-DE2CR24L (Complete System Only)

Product SKU
SSG-2028R-DE2CR24L • SuperServer 2028R-DE2CR24L (Black)
Motherboard
  • Super X10DRS-2U
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
  • † BIOS version 2.0 or above is required
Notes * Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory (per Node)
Memory Capacity • 8x 288-pin DDR4 DIMM slots
• Up to 1TB† ECC 3DS LRDIMM, 256GB ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors

NVDIMM

• NVDIMM support. (Not all vendor's NVDIMM are supported. Please contact your sales representative for details)

On-Board Devices (per Node)
Chipset • Intel® C612 chipset
SAS • SAS3 (12Gbps) via Broadcom 3008
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Controllers • Intel® X540 Dual Port 10GBase-T
• 100Mb private ethernet between controller nodes
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1 Realtek RTL8201N PHY (dedicated IPMI)
Video • ASPEED AST2400 BMC
Others • PCI-E 3.0 x8 node to node/NTB connectivity
• PLX Technology PEX8717; PLX ExpressNIC SDK available from PLX. NDA required
Input/Output (per Node)
SAS • 2 JBOD expansion ports per node (mini-SAS HD)
LAN • 2 RJ45 10GBase-T LAN ports
• IPMI LAN shared port
USB • 3 USB 3.0 ports (2 rear + 1 Type A)
Video • 1 VGA port
Serial Port/
Header
• 1 COM port (rear)


Chassis
Form Factor • 2U Rackmount
Model CSE-927ETS
Dimension and Weight
Width • 17.2" (437mm)
Height • 3.5" (89mm)
Depth • 25.25" (641mm)
Gross Weight • 67 lbs (30.4 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button

LEDs

• Power LED
• Heartbeat LED
• 2 Network activity LEDs
• Power Fail LED
• Overheat/Fan Fail LED

Expansion Slots (per Node)
PCI-Express (per node)

• 3 PCI-E 3.0 x8 low-profile slots

Drive Bays
Hot-swap

• Drive Bays Hot-swap

Backplane


• SAS3 12Gbps passive backplane, redundant architecture with single expander on each motherboard. Motherboard also support 2x mini-SAS HD connectors for JBOD expansion

System Cooling
Fans

• 4 Hot-swap 8cm midplane fans, 2 counter-rotating 4cm fans per node

Power Supply
  • Redundant 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm
AC Input • 1000W Output @ 100-127V, 12-15A, 50-60Hz
• 1200W Output @ 200-240V, 7-8.5A, 50-60Hz
DC Output • 1000W: +12V/83A; +5Vsb/4A
• 1200W: +12V/100A, +5Vsb/4A
Certification • Titanium Certified
  • System power redundancy provided at 240V only.
System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI

Operating Environment
RoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
