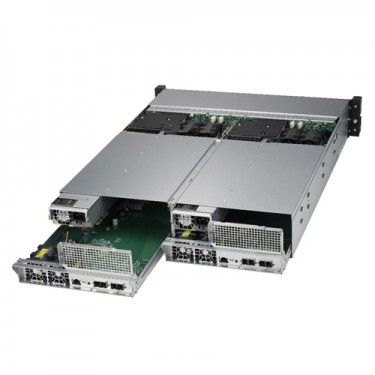

  • Supermicro SuperStorage Bridge Bay SBB SSG-927R-E2CJB - Angle
  • Supermicro SuperStorage Bridge Bay SBB SSG-927R-E2CJB - Top
  • Supermicro SuperStorage Bridge Bay SBB SSG-927R-E2CJB - Front
  • Supermicro SuperStorage Bridge Bay SBB SSG-927R-E2CJB - Rear

Supermicro SuperStorage Bridge Bay SBB SSG-927R-E2CJB

Call for price.
SKU:SSG-927R-E2CJB

Quick Overview:

Key Features:
• Two hot-pluggable systems (nodes)
• High Availability Storage Appliance Platform
• Redundant Hot-swap expander trays
• 24 Hot-swap 2.5" Drive Bays
• 8x 40mm cooling fans
• 1200W Redundant Power Supplies Titanium Level Certified


Details

Supermicro SuperStorage SBB SSG-927R-E2CJB

Product SKU
SSG-927R-E2CJB • SuperStorage 927R-E2CJB (Black)
Add-on Module
  • 2x AOM-SAS3-937EL-JB
Drive Bays
Hot-swap • 24 Hot-swap 2.5" Drive Bays shared between JBOD nodes
• SAS drives recommended
Expander
  • AOM-SAS3-937EL-JB, features:


• 12Gb SAS3 HDD support
• Redundancy dual ported SAS architecture
• Robust AirMax server node connections (SBB specification)

On-Board Devices
SAS • SAS3 (12Gbps) via AOM-SAS3-937EL-JB
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Front Panel
Buttons • Power On/Off button
LEDs


















• Power LED
• Hard Drive Activity LED
• 2 SAS link Activity LED
• System Overheat LED
• Power Fail LED














Chassis
Form Factor • 2U Rackmount
Model CSE-927ETS-R0JNDBP-X10
Dimension and Weight
Width • 17.2" (437mm)
Height • 3.5" (88mm)
Depth • 25.5" (648mm)
Gross Weight • N.A.
Available Colors • Black
System Cooling
Fans

• 8x 40mm cooling fans

Power Supply (76mm Width)
  • 1200W Redundant Power Supplies with PMBus
Total Output Power • 1000W/1200W
Dimension
(W x H x L)
• 76 x 40 x 336 mm
Input • 100-127Vac / 15-12A / 50-60Hz
• 200-240Vac / 8.5-7A / 50-60Hz
• 200-240Vdc / 8.5-7A (for CCC only)
+12V • Max: 83A / Min: 0A (100-127Vac)
• Max: 100A / Min: 0A (200-240Vac)
• Max: 100A / Min: 0A (200-240Vdc)
+5Vsb • Max: 4A / Min: 0A
Output Type • 19 Pairs Gold Finger Connector
Certification • Titanium Level
Operating Environment/Compliance
RoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
