  • Supermicro Processor Blade SBI-7427R-S2L

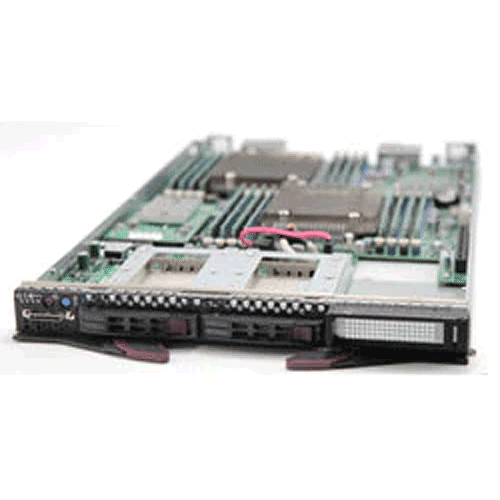

Supermicro Processor Blade SBI-7427R-S2L

Call for price.
SKU:SBI-7427R-S2L

Quick Overview:

Key Features:
• 168 CPUs per 42U Rack
• Intel® Xeon® processor E5-2600
• Up to 512GB of memory
• 2x 2.5" Hot-swap HDD Bay
• Intel® i350 Dual port Gigabit Ethernet
• Integrated Matrox G200 Graphics


Details

Supermicro Processor Blade SBI-7427R-S2L

Product SKU
• Processor Blade SBI-7427R-S2L (Black)
Motherboard
  • Super B9DRP
Processor/Cache
CPU • Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
Note † BIOS version 3.0 or above is required
Cache • Up to 30MB
System Bus • QPI up to 8 GT/s
System Memory
Memory Capacity • 16x 240-pin DDR3 DIMM slots
• Supports up to 512GB DDR3 ECC Registered memory (RDIMM)
• Supports up to 128GB DDR3 ECC Unbuffered memory (UDIMM)
Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V and 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset • Intel® C602 chipset
InfiniBand Support • 4x QDR (40Gbps) InfiniBand or 10GbE mezzanine HCA (Optional)
SATA • Intel C602 SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support (Windows)
• RAID 0, 1, 10 support (Linux)
SAS

• SAS2 via Broadcom 2308

IPMI

• Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)

Network Controllers

• Intel® I350 Dual port Gigabit Ethernet
• Intel® I/OAT 3 support for fast, scaleable, and reliable networking
• VMDq support for better performance of virtualization

Super I/O

• Nuvoton W83527

System BIOS
BIOS Type • 64Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features • Plug and Play (PnP)
• PCI 2.2
• ACPI up to 3.0
• USB Keyboard support
Dimension and Weight
Height • 11.32" (288 mm)
Width • 1.19" (30.2 mm)
Depth • 18.9" (480mm)
Gross Weight • 8.6 lbs (3.9 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• KVM button

LEDs

• Power LED
• UID / KVM LED
• Network Activity LED
• Fault LED

Connector

• SUV (Serial/USB/Video) & KVM Connector

Expansion Slots
PCI-Express

• 1 (x16) PCI-E 3.0 slot (Low-profile)

Drive Bays
Hot-swap

• 2x 2.5" SAS/SATA Hot-swap drive bay

Input / Output
KVM

• 1 Front Connector for Supermicro KVM Card

Operating Environment / Compliance
Environmental Spec. • Operating Temperature: 10°to 35°C (50°to 95°F)
• Non-operating Temperature: -40°to 70°C (-40°to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
Electromagnetic Compatibility (EMC)
United States /
Canada

• FCC- Emissions (US) Verification

Europe

• EN55022 - Emissions
• EN55024 - Immunity
• EN61000-3-2 - Harmonics
• EN61000-3-3 - Voltage Flicker
• CE - EMC Directive 89/336/EEC

Safety Compliance
United States /
Canada

• UL60950-1 - CSA/CUL 60950-1

Europe • EN60950-1, CE - Low Voltage Directive 73/23/EEE
Germany • TUV
Thermal Limitation
Note


• SuperBlade full enclosure with four 1620W power supplies will have thermal limitation of 30°C ambient temperature
