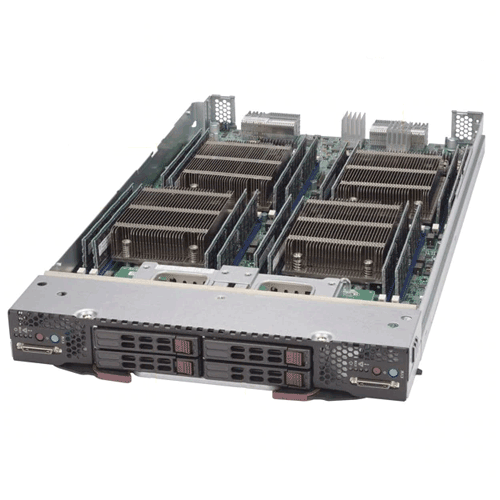

  • Supermicro Processor Blade SBI-7228R-T2X Angle

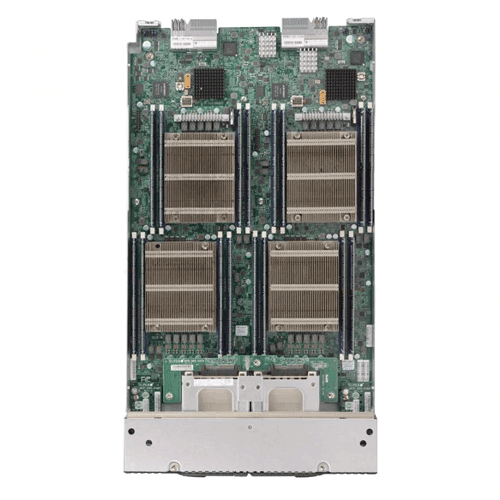

  • Supermicro Processor Blade SBI-7228R-T2X Top

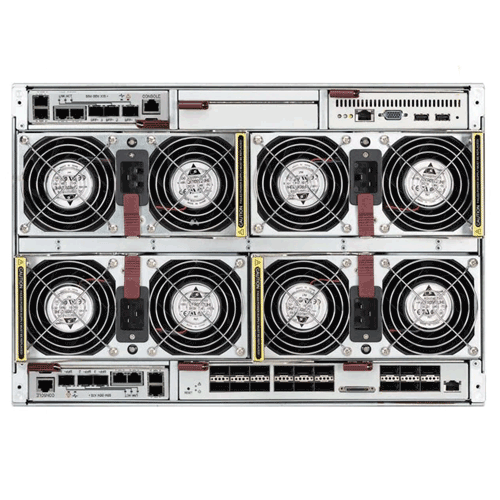

  • Supermicro Processor Blade SBI-7228R-T2X Rear

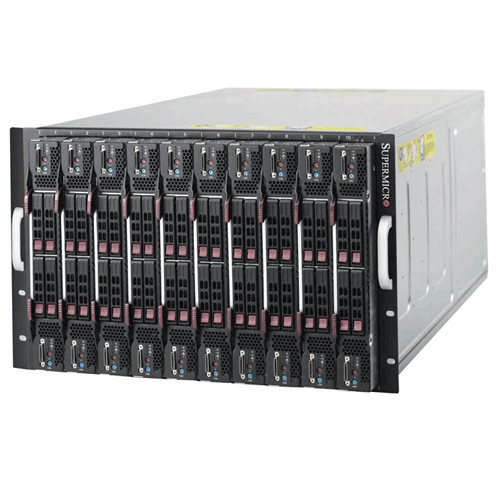

  • Supermicro Processor Blade SBI-7228R-T2X Angle02

Supermicro Processor Blade SBI-7228R-T2X

Call for price.
SKU:SBI-7228R-T2X

Quick Overview:

Key Features:
• Two nodes in a Processor Blade
• Supports Intel® Xeon® processor E5-2600
• Up to 512GB of memory
• 2x 2.5" Hot-Plug SATA3 Drive Trays
• Integrated Aspeed AST 2400 Graphics
• 10GbE onboard


Details

Supermicro Processor Blade SBI-7228R-T2X

Product SKU
SBI-7228R-T2X • Processor Blade SBI-7228R-T2X (Black)
Motherboard
  • Super B10DRT-TP
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family
• Dual Socket R3 (LGA 2011)
Cores / Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
System Memory
Memory Capacity • 8x 288-pin DDR4 DIMM slots per Node
• Up to 512GB ECC RDIMM or LRDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes

• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 128GB, 64GB, 32GB
Memory Voltage

• 1.2 V
Error Detection

• Corrects single-bit errors
On-Board Devices (per node)
Chipset • Intel® C612 Express chipset
Network Onboard • 10GbE onboard
SATA • SATA3 (6Gbps); RAID 0, 1
IPMI

• Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Network Controllers

• Intel® I350 Dual port Gigabit Ethernet
• Intel® I/OAT 3 support for fast, scaleable, and reliable networking
• VMDq support for better performance of virtualization
System BIOS
BIOS Type • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features






 • Plug and Play (PnP)
• PCI 2.2
• ACPI up to 3.0
• USB Keyboard support
Dimension and Weight
Height • 11.32" (288 mm)
Width • 1.67" (42.4 mm)
Depth • 20.5" (520.7mm)
Gross Weight • 17 lbs (7.71 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• KVM button
LEDs

• Power LED
• UID / KVM LED
• Network Activity LED
• Fault LED

Connector

• SUV (Serial/USB/Video) & KVM Connector
Drive Bays
Hot-swap

• 2x 2.5" Hot-swap drive bays, HDD/SSD
Input / Output
DOM

• 1x SuperDOM (Disk on Module) port
TPM

• 1x TPM 1.2 20-pin Header
KVM

• 1x Front Connector for Supermicro KVM Card
Operating Environment / Compliance
Environmental Spec.

• Operating Temperature: 10°to 35°C (50°to 95°F)
• Non-operating Temperature: -40°to 70°C (-40°to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
Electromagnetic Compatibility (EMC)
United States /
Canada

• FCC- Emissions (US) Verification
Europe

• EN55022 - Emissions
• EN55024 - Immunity
• EN61000-3-2 - Harmonics
• EN61000-3-3 - Voltage Flicker
• CE - EMC Directive 89/336/EEC
Safety Compliance
United States /
Canada		 • UL60950-1 - CSA/CUL 60950-1
Europe
 • EN60950-1, CE - Low Voltage Directive 73/23/EEE
Germany • TUV
