Details

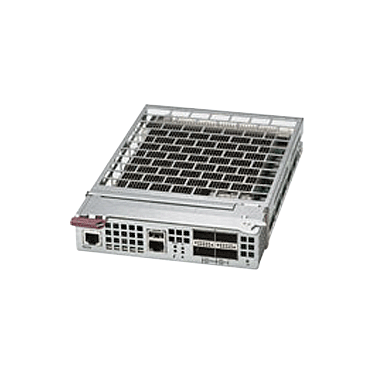

| MBM-XEM-001 | |
| General Specification | • Intel® FM6348 10GbE Low Latency Switch • 4x 40Gbps QSFP uplinks • 20x 10/1Gbps downlinks • 1 Console port • 1 USB port |
| Switching Capacity | • 960Gbps |
| Physical Layer Features | • Jumbo frames up to 9KB • 40 gigabit optical/copper • 1 gigabit optical Ethernet copper |
| Layer 2 Features | • 4K VLANS • Spanning Tree (802.1D) • Rapid Spanning Tree (802.1w) • Multiple Spanning Trees (802.1s) • IEEE 802.lQ VLANs/ port-based VLANs • IEEE 802.3ac VLAN tagging • IEEE 802.1AX LACP • IEEE 802.1AB Link Layer Discovery Protocol (LLDP) |
| Advanced Layer 2 Features | • Storm control • Flow control • Port mirroring • Static MAC filtering • UDLD • Uplink Failure Detection (UFD) |
| Data Center Features | • L2 Data Center Bridging • CEE v1.01 DCB for PFC/ETS |
| SDN | • Open Flow 1.x |
| Security Features | • Switch access password protection • RADIUS and TACACS+ Authentication • Access Control Lists • SSH, SSL Encryption |
| System Management | • XML-RPC • Industry Standard CLI • Command completion • Context Sensitive Help • SNMP v1/v2/v3 • SSH • TFTP Client • Syslog • DHCP (Client) • Web-based management interface - HTTP/HTTPS • NTP |
| Multicast | • IGMP Snooping |
| Weight | • 3.2lbs/1.5kg |
| Dimension | • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4") |
