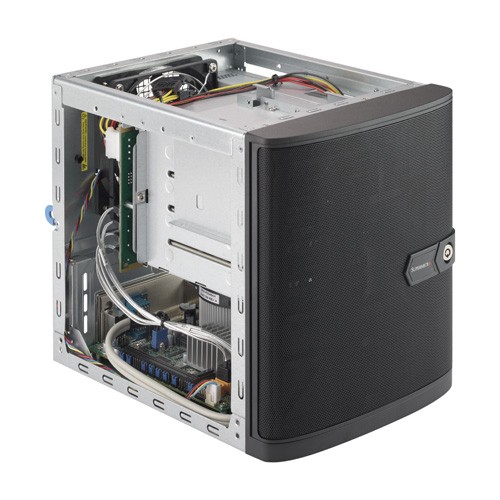

Supermicro Mini-Tower SuperServer SYS-5029S-TN2

Call for price.

SKU:SYS-5029S-TN2

Quick Overview:

Key Features:
• M.2 slot, vPro
• Single socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® processors
• 4 Hot-swap 3.5" drive bays, 2 fixed 2.5" drive bays, support total of 5 hard drives
• Up to 32GB Unbuffered Non-ECC UDIMM DDR4 2400MHz; 2 DIMM slots
• 1 GbE LAN with Intel® i210-AT
1 GbE LAN with Intel® PHY i219LM
• 250W Flex ATX Multi-output Bronze Power Supply
• 7-year life cycle

Description

Details

Supermicro SuperServer SYS-5029S-TN2

Product SKU
SYS-5029S-TN2	• SuperServer 5029S-TN2 (Black)

Motherboard
	• Super X11SSV-Q

Processor/Cache
CPU	• Intel® 7th/6th Gen Core i7/i5/i3 series, Intel® Celeron®, Intel® Pentium® processors; CPU TDP support up to 65W TDP • Single Socket H4 (LGA 1151)
Note	BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors

System Memory
Memory Capacity	• 2x 260-pin DDR4 SODIMM slots • Up to 32GB DDR4 Non-ECC UDIMM
Memory Type	• 2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 260-pin gold-plated SODIMMs
DIMM Sizes	• 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V

On-Board Devices
Chipset	• Intel® Q170 Express Chipset
SATA	• Onboard controller for 4x SATA3 (6Gbps) ports with RAID 0, 1, 5, 10
Network Controllers	• Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	• RealTek ALC 888S High Definition Audio

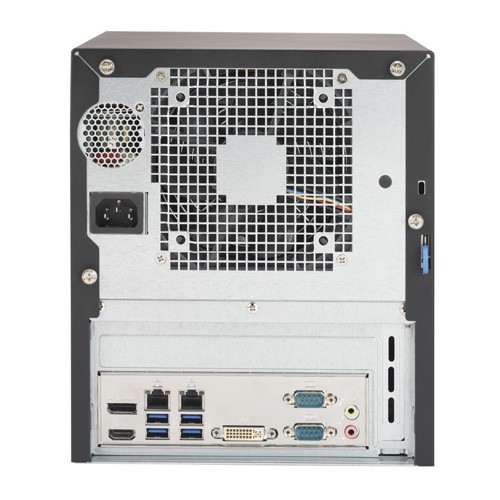

Input/Output
Serial ATA	• 5 SATA 3.0 ports (6Gbps) including 1 mSATA • Raid 0, 1, 5, 10
LAN	• 2 RJ45 Gigabit Ethernet LAN ports
USB	• 4 USB 3.0 ports (rear) • 2 USB 2.0 ports (front) • 1 USB 2.0 Type A
Audio	• 2 port jack
Video/Display	• 1 HDMI, 1 DP (Display Port), 1 DVI-I, Intel® HD Graphics, 3 Independent Displays
Serial Port/Header	• 2 COM ports (2 rear)
DOM	• SATA DOM (Disk on Module) power connector support
TPM	• 1 TPM 20-pin Header

Management
Software	• SuperDoctor® 5 • Watch Dog • AMT • NMI • vPro

Chassis
Form Factor	• Mini-Tower
Model	• CSE-721TQ-250B

Dimension and Weight
Height	• 9.45" (240mm)
Width	• 8.27" (210mm)
Depth	• 11" (279mm)
Gross Weight	• Gross Weight: 15 lbs (6.8 kg)
Available Colors	• Black

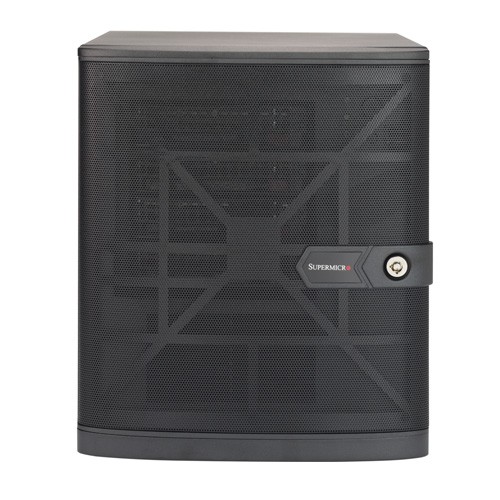

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • Network activity LEDs • System Overheat LED

Expansion Slots
PCI-E	• 1 PCI-E 3.0 x16 slot • 1 Mini-PCIe with mSATA support

Drive Bays
HDD	• 4 Hot-swap 3.5" drive bays • 2 internal 2.5" drive bays
Peripheral	• 1 slim DVD-ROM drive bay (shared with 1 internal 2.5" drive bay)

Power Supply
	250W Flex ATX Multi-output Bronze Power Supply
AC Voltage	• 100 - 240V, 50 - 60Hz, 5Amp
+5V	• Max:14 Amp; Min:0.5 Amp
+12V	• Max:18 Amp; Min:1 Amp @100V-240V
-12V	• Max: 3 Amp; Min: 0 Amp
+3.3V	• Max: 12 Amp Min: 0.3Amp
5VSB	• Max: 2.5 Amp Min: 0 Amp
Certification	• Bronze Certified

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features	• Plug and Play (PnP) • DMI 2.3 • PCI 3.0 • ACPI 5.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 3.0 • UEFI 2.3.1 • RTC (Real Time Clock) Wakeup

Operating Environment/Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 0°C to 40°C (32°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
