Details

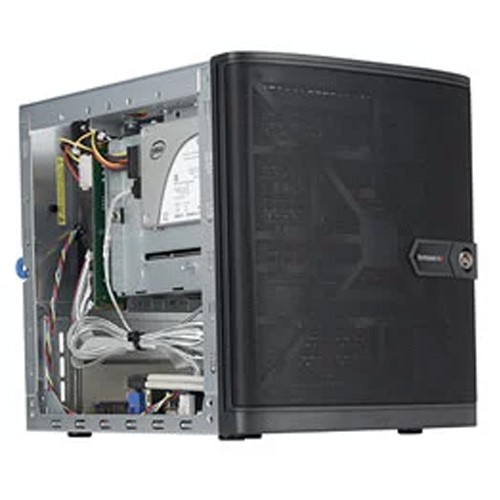

Supermicro SuperServer SYS-5029A-2TN4
|
Product SKU
| |
|---|---|
| SYS-5029A-2TN4 | • SuperServer 5029A-2TN4 (Black) |
|
Motherboard
| |
|---|---|
| • Super A2SDi-2C-HLN4F | |
| Processor/Cache
|
|
|---|---|
| CPU | • Intel® Atom® Processor C3338 • FCBGA 1310 • CPU TDP support 9W • System-on-Chip |
|
System Memory
| |
|---|---|
| Memory Capacity | • Up to 64GB Register DIMM RDIMM and DDR4-1866MHz • Up to 32GB Unbuffered ECC/non-ECC UDIMM, DDR4-1866MHz, in 2 DIMM slots |
| Memory Type | • 2400/2133/1866/1600MHz DDR4 RDIMM and ECC/Non-ECC UDIMM (Operating speed up to 1866MHz) |
| DIMM Sizes | • 32GB (RDIMM only), 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2 V |
|
On-Board Devices
| SATA | • SoC controller for 6 SATA3 (6Gbps) ports |
|---|---|
| Network Controllers | • Quad 1GbE LAN with Intel C3000 SoC • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Video | • Aspeed AST2400 BMC |
|
Input/Output
| SATA | • 6 SATA3 (6Gbps) ports | LAN | • 4 RJ45 Gigabit Ethernet LAN ports • 1 RJ45 Dedicated IPMI LAN port |
USB | • 1 USB 3.0 (Type A) • 4 USB 2.0 (2 front, 2 rear) |
|---|---|
| COM Port | • 1 COM port (1 header) |
| Video | • 1 VGA |
| TPM | • 1 TPM Header |
|
Management
| Software | • SuperDoctor® 5 • Watch Dog |
Power Configuration |
• ACPI Power Management • ATX Power connector • Control of power-on for recovery from AC power loss • CPU thermal trip support for processor protection |
|---|
|
Chassis
| |
|---|---|
| Form Factor | • Mini-Tower |
| Model | • CSE-721TQ-250B |
|
Dimension and Weight
| |
|---|---|
| Height | • 9.45" (240mm) / 13.78" (350mm) pkg. |
| Width | • 8.27" (210mm) / 12.4" (315mm) pkg. |
| Depth | • 11" (279mm) / 16.14" (410mm) pkg. |
| Net Weight | • 15 lbs (6.8 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
|
Expansion Slots
| |
|---|---|
| PCI-E |
• 1 PCI-E 3.0 x2 (in x4) open ended slot |
|
Drive Bays
| |
|---|---|
| HDD | • 4 Hot-swap 3.5" drive bays |
| Peripheral |
• 1 slim DVD-ROM drive bay (shared with 1 internal 2.5" fixed drive bay) |
|
System Cooling
| |
|---|---|
| Fan | • 1x 12cm rear exhaust fan |
|
Power Supply
| |
|---|---|
| 250W Flex ATX Multi-output Bronze Power Supply | |
| AC Voltage | • 100 - 240V, 50 - 60Hz, 5Amp |
| +5V |
• Max:14 Amp; Min:0.5 Amp |
| +12V | • Max:18 Amp; Min:1 Amp @100V-240V |
| -12V | • Max: 3 Amp; Min: 0 Amp |
| +3.3V | • Max: 12 Amp Min: 0.3Amp |
| 5VSB | • Max: 2.5 Amp Min: 0 Amp |
| Certification | • Bronze Certified |
|
System BIOS
| |
|---|---|
| BIOS Type |
• AMI UEFI BIOS |
| BIOS Features | • Plug and Play (PnP) |
|
Operating Environment / Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
0°C to 40°C (32°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
