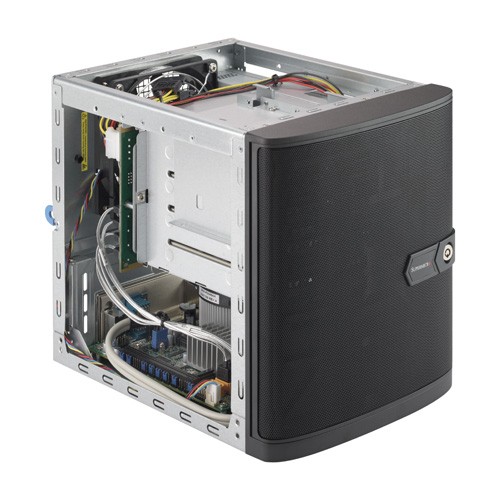

  • Supermicro Mini-Tower SuperServer SYS-5028L-TN2 - Angle

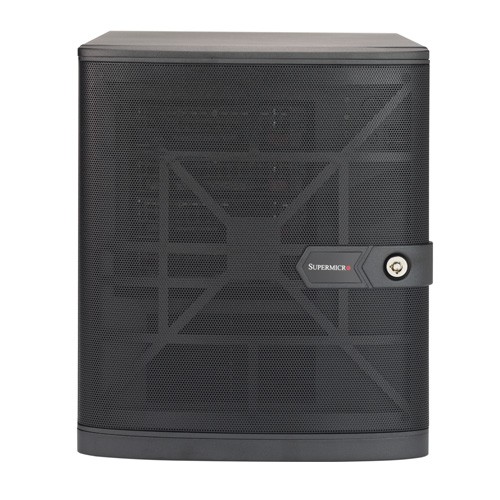

  • Supermicro Mini-Tower SuperServer SYS-5028L-TN2 - Front
  • Supermicro Mini-Tower SuperServer SYS-5028L-TN2 - Rear

Supermicro Mini-Tower SuperServer SYS-5028L-TN2

Call for price.
SKU:SYS-5028L-TN2

Quick Overview:

Key Features:
• High Performance NAS Servers
• Single socket H3 (LGA 1150) Intel® Xeon
• 4x 3.5" Hot-swap drive bays, 2x 2.5" fixed drive bays
• Up to 16GB DDR3 non-ECC 1600MHz SODIMM in 2 sockets
• Dual Gigabit Ethernet LAN ports
• 250W Flex ATX Multi-output Bronze Power Supply
• 7-year life cycle


Details

Supermicro SuperServer SYS-5028L-TN2

Product SKU
SYS-5028L-TN2 • SuperServer 5028L-TN2 (Black)
Motherboard
  • Super X10SLV-Q
Processor/Cache
CPU • Intel® Xeon® processor E3-1200 v3 and 4th Gen Core i7/i5/i3, Pentium, Celeron processors
• Single Socket H3 (LGA 1150)
• Performance-Optimized with 84W TDP Processor
System Memory
Memory Capacity • 2x 204-pin DDR3 SODIMM slots
• Supports up to 16 GB DDR3 non-ECC SODIMM
Memory Type

• 1600MHz non-ECC DDR3 SDRAM 64-bit, 204-pin gold-plated SODIMMs
DIMM Sizes

• 8GB, 4GB, 2GB, 1GB
Memory Voltage

• 1.5V, 1.35V
On-Board Devices
Chipset • Intel® Q87 Express Chipset
SATA • Onboard controller for 4x SATA3 (6Gbps) ports with RAID 0, 1, 5, 10
Network Controllers • Intel® i217 + Intel® i210AT Controllers
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics

• Intel HD 4600 Graphics, Processor Graphic
Input/Output
Serial ATA • 4x SATA 3.0 ports (6Gbps) including 1x mSATA
• Raid 0, 1, 5, 10
LAN • 2x RJ45 Gigabit Ethernet LAN ports
USB • 2x USB 3.0 ports (rear)
• 5x USB 2.0 ports (2 rear, 2 via headers, 1 type A)
Audio • HD Audio Front Panel Headers
Display • 1x DisplayPort, 1x HDMI, 1x DVI-I, 3 Independent Displays
DOM • SATA DOM (Disk on Module) power connector support
Security • 1 TPM 1.2 20-pin Header
Management
Software




















• SuperDoctor® III
• Watch Dog
• NMI
Chassis
Form Factor • Mini-Tower
Model • CSE-721TQ-250B
Dimension and Weight
Height • 9.45" (240mm)
Width • 8.27" (210mm)
Depth • 11" (279mm)
Gross Weight • 15 lbs (6.8 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED
Expansion Slots
PCI-E

• 1x PCI-E 3.0 x16 slot
• 1x Mini-PCIe with mSATA support
Drive Bays
HDD

• 4x 3.5" Hot-swap drive bays
• 2x 2.5" internal drive bays
Peripheral

• 1x slim DVD-ROM drive bay (shared with 1x 2.5" internal drive bay)
Power Supply
  250W Flex ATX Multi-output Bronze Power Supply
AC Voltage • 100 - 240V, 50 - 60Hz, 5Amp
+5V
 • Max:14 Amp; Min:0.5 Amp
+12V • Max:18 Amp; Min:1 Amp @100V-240V
-12V • Max: 3 Amp; Min: 0 Amp
+3.3V • Max: 12 Amp Min: 0.3Amp
5VSB • Max: 2.5 Amp Min: 0 Amp
Certification • Bronze Certified
System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features

• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.7.1
• UEFI
• RTC (Real Time Clock) Wakeup
Operating Environment/Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Non-operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Operating Relative Humidity: 10% to 85% (non-condensing)
• Non-operating Relative Humidity: 10% to 95% (non-condensing)
