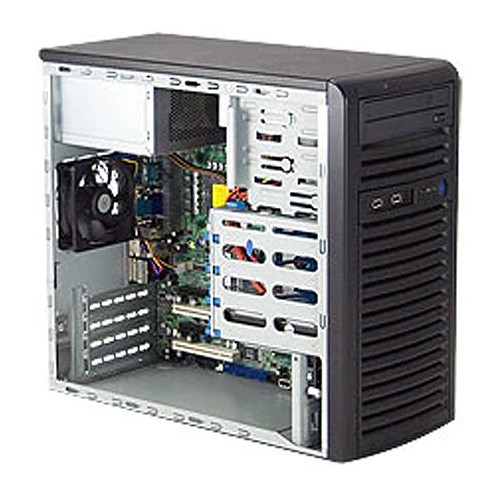

Supermicro Mini-Tower SuperChassis CSE-731i-403B
|
Product SKU
| |
|---|---|
| CSE-731i-403B | • SuperChassis 731i-403B |
|
Form Factor
| |
|---|---|
| • Mini-Tower Chassis - supports for maximum motherboard sizes of 9.6" x 9.6" | |
|
Processor Support
| |
|---|---|
| • Dual Intel® and AMD processors | |
|
Dimensions
| |
|---|---|
| Height | • 14.25" (362 mm) |
| Width | • 7.25" (184 mm) |
| Depth | • 16.75" (425 mm) |
| Gross Weight | • 20 lbs (9.07 kg) |
| Available Color | • Black |
|
Expansion Slots
| • 4 full-height & full-length expansion slot(s) |
|---|
|
Drive Bays
| • 2 x 5.25" drive bay • 4 x 3.5" fixed drive bay |
|---|
|
Front Panel
| Buttons | • Power On/Off button | LEDs | • 1 Network Activity LEDs • HDD activity LED • Power LED • System Overheat LED |
Ports |
• 2x USB 3.0 Port(s) |
|---|
|
System Cooling
| |
|---|---|
| Fans | • 1 x 9cm (2050 RPM) rear exhaust fan(s) |
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• Super quiet operation with 12cm cooling fan and 80plus gold certification. |
|
| Total Output Power and Input |
• 400W with Input 100 - 240Vac |
| AC Input Frequency |
• 50-60Hz |
| Dimensions (L x W x H) |
• 140 x 150 x 86 mm |
| Output Type | • 24pin ATX |
| -12V | • Max: 0.3A |
| +12V | • (100Vac - 240Vac) |
| +5V | • Max: 22A / Min: 0.5A |
| +3.3V | • Max: 24A / Min: 0.5A |
| +5Vsb | • Max: 3A |
| Certification | • Gold Certified |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• CE/EMC |
