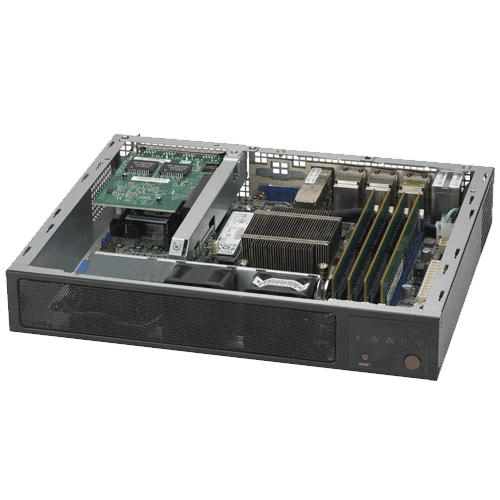

  • Supermicro Mini-ITX Chassis CSE-E300 - Angle

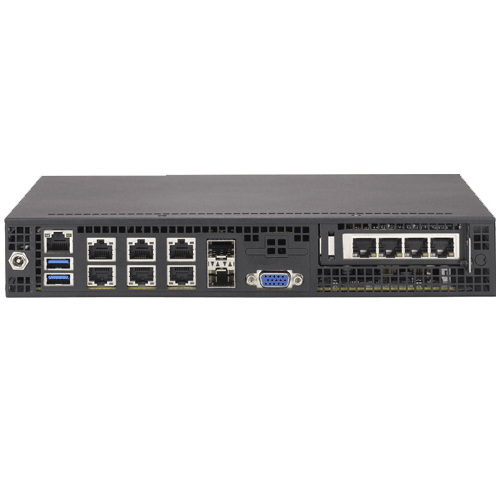

  • Supermicro Mini-ITX Chassis CSE-E300 - Rear

Supermicro Mini-ITX Chassis CSE-E300

Call for price.
SKU:CSE-E300

Quick Overview:

Key Features:
• Compact Desktop 1U Server BOX PC
• Embedded Appliance Chassis
• Optimized for Flex-ATX and Mini-ITX Motherboard
• Support 2x 2.5 internal HDD or 1x Standard LP AOC
• Power Switch, Reset Button and LED Indicators


Details

Supermicro Mini-ITX Chassis CSE-E300

Product SKU
• SuperChassis E300
Form Factor
  • Flex-ATX 9.0" x 7.25", Mini-ITX chassis
Processor Support
  • Single Intel® and AMD processors
Dimension
Height • 1.7" (43 mm)
Width

• 10" (254 mm)

Depth

• 8.9" (226 mm)

Gross Weight

• 3.7 lbs (1.68 kg)

Colot

• Black

Drive Bays
  • 2 x 2.5" fixed drive bay
Front Panel
Buttons • Power On/Off button
• System Reset Button
LEDs












• Unit Identification (UID) LED












Motherboard (for CSE- E300)
  • X10SDV-TP8F | X10SDV-2C-TP4F | A2SDi-H-TP4F
• A2SDi-TP8F | A2SDi-4C-HLN4F | A2SDi-16C-HLN4F
• A2SDV-8C-TLN5F | A2SDV-12C+-TLN5F | X11SDV-8C-TLN2F
• X11SDV-4C-TLN2F | X11SCV-L | X10SDV-2C-TP8F
• X10SDV-4C+-TP4F | A2SDi-H-TF | A2SDi-LN4F
• A2SDi-12C-HLN4F | A2SDi-8C-HLN4F | A2SDV-16C-TLN5F
• X11SDV-16C-TLN2F | X11SDV-12C-TLN2F | X11SCV-Q
Servers (for CSE- E300)
  • E300-8D | E300-9D | E300-9A-4C | E300-9D-8CN8TP
• E300-9A | E300-9A-8C | E300-9C | E300-9D-4CN8TP
Operating Environment (System)
Operating Temperature
Range
• 0°C - 40°C (32°F - 104°F)
Non-Operating
Temperature Range
• -20°C - 60°C (-4°F – 140°F)
Operating Relative
Humidity Range
• 10% - 85% (non-condensing)
Non-Operating
Relative Humidity
Range
• 10% - 95% (non-condensing)
Power Supply


• Optional 60W/84W, DC-DC Power Adapter or DC/DC Power converter board

Regulatory (Power Supply)
Power Supply Safety
/ EMC

• CCC
• CE/EMC
• FCC
• TUV/CB
• UL/CUL
