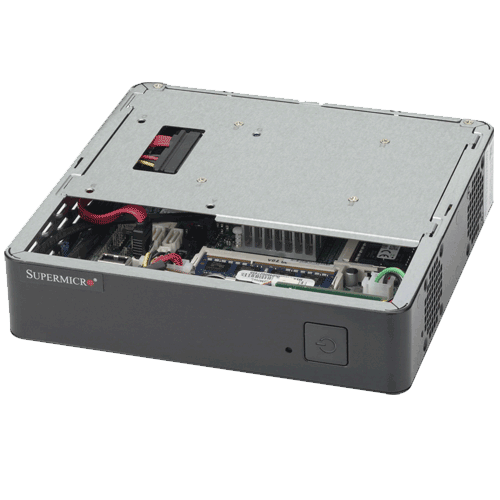

  • Supermicro Mini-ITX Chassis CSE-101S - Angle

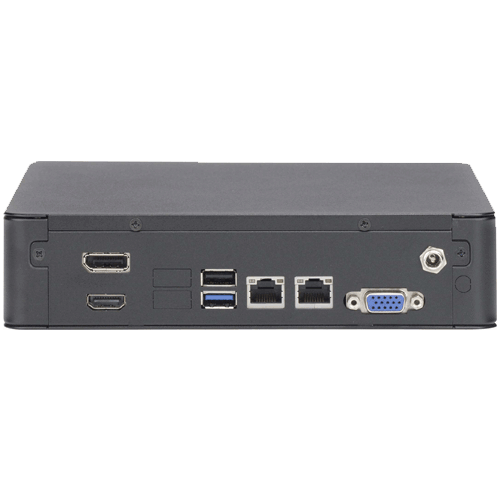

  • Supermicro Mini-ITX Chassis CSE-101S - Rear

Supermicro Mini-ITX Chassis CSE-101S

$0.00
SKU:CSE-101S

Quick Overview:

Key Features:
• Slim & Space-saving 1U Mini-ITX Chassis Design
• Standard Mini-ITX MB form factor 6.7" x 6.7"
• 1x 2.5" internal HDD support
• 1x 4cm Cooling Fan
• VESA/Wall-mount ready


Details

Supermicro Mini-ITX Chassis CSE-101S

Product SKU
• SuperChassis 101S
Form Factor
  • Mini-ITX Chassis for motherboard support size: (Mini-ITX 6.75" x 6.75")
Processor Support
  • Single Intel® and AMD processors
Dimension
Height • 1.75” (44.45 mm)
Width

• 7.68" (195 mm)

Depth

• 7.68" (195 mm)

Gross Weight

• 7.5 lbs (3.4 kg)

Colot

• Black

Drive Bays
  • 1 x 2.5" fixed drive bay
Front Panel
Buttons • Power On/Off button
• System Reset Button
LEDs
















• Power Status LED
















Motherboard (for CSE- 101S)
  • X9SBAA-F | X9SCAA
• X9SCAA-L | X10SBA-L
• A1SAi-2750F | A1SAi-2550F
• X10SBA | A1SRi-2758F
• A1SRi-2558F | X11SBA-LN4F
• X11SBA-F | A1SRI-2358F
• A2SAV | A2SAV-L
Servers (for CSE- 101S)
  • E200-8B
• E200-9AP
• E200-9B
System Cooling
Fans

• 1 x 4cm high performance PWM fan(s)

Operating Environment (System)
Operating Temperature
Range
• 0°C - 40°C (32°F - 104°F)
Non-Operating
Temperature Range
• -20°C - 60°C (-4°F – 140°F)
Operating Relative
Humidity Range
• 10% - 85% (non-condensing)
Non-Operating
Relative Humidity
Range
• 10% - 95% (non-condensing)
Power Supply


• Optional 60W/84W, DC-DC Power Adapter or DC/DC Power converter board

Regulatory (Power Supply)
Power Supply Safety
/ EMC

• CCC
• CE/EMC
• FCC
• TUV/CB
• UL/CUL
