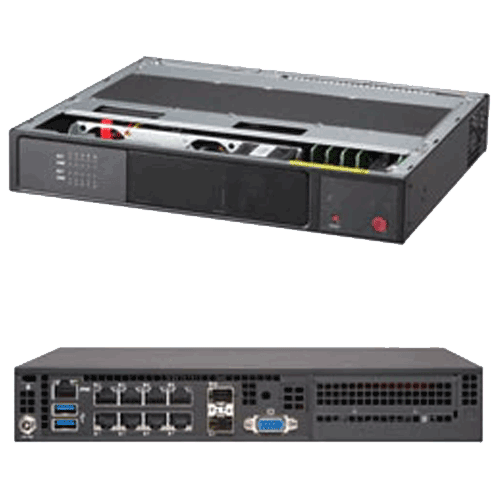

  • Supermicro Mini-1U Embedded SuperServer SYS-E300-9A-4CN10P - Angle

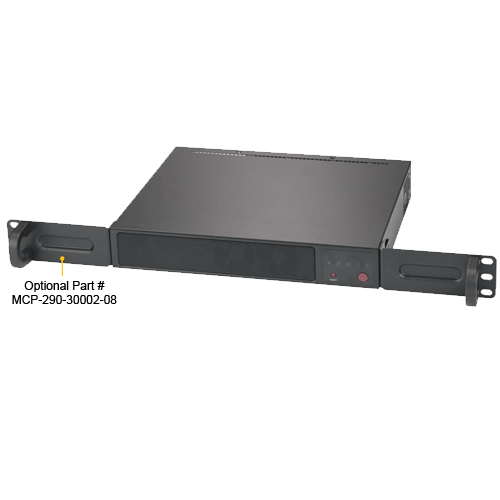

  • Supermicro Mini-1U Embedded SuperServer SYS-E300-9A-4CN10P - Option

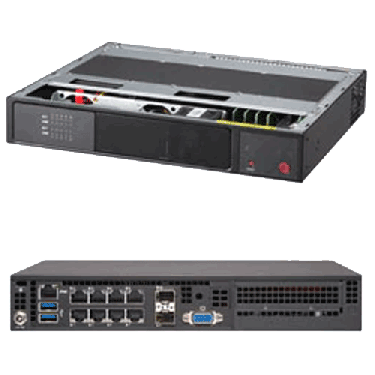

Supermicro Mini-1U Embedded SuperServer SYS-E300-9A-4CN10P

$0.00
SKU:SYS-E300-9A-4CN10P

Quick Overview:

Key Features:
• Intel® Atom® processor C3558
• Single socket FCBGA 1310
• System on Chip
• 1 Fixed 2.5" drive bay
• Up to 256GB of memory
• 1x 40mm chassis fan

Details

Supermicro Mini-1U Embedded SuperServer SYS-E300-9A-4CN10P

Product SKU
• SuperServer E300-9A-4CN10P (Black)
Motherboard
  • Super A2SDV-4C-LN10PF
Processor/Cache
CPU • Intel® Atom® processor C3558
• 4 Cores, 2.2GHz
• CPU TDP support 16W
• FCBGA 1310
System Memory
Memory Capacity • 4x DDR4 DIMM sockets
• Supports up to 256GB DDR4 ECC RDIMM
• Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type

• 2400/2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM

DIMM Sizes

• RDIMM and ECC/Non-ECC UDIMM DIMM Sizes 64GB, 32GB, 16GB, 8GB, 4GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset • System on Chip
SATA • SoC controller for 4 SATA3 (6Gbps) ports
Network Controllers • 8x 1GbE LAN ports via Intel C3000 SoC
• 2x 1G SFP via Intel I210-IS
Graphics

• Aspeed AST2400 BMC

Input/Output
SATA • 2 SATA3 (6Gbps) ports
LAN • 8 RJ45 Gigabit Ethernet LAN ports
• 2 1G SFP LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
Display • 1 VGA port
TPM











• TPM 2.0 header











Chassis
Form Factor • Mini-1U
Model CSE-E300-LED+
Dimension and Weight
Width • 10" (254mm) / 15" (381mm) - pkg.
Height • 1.7" (43mm) / 10.87" (276mm) - pkg.
Depth • 8.9" (226mm) / 5.59" (142mm) - pkg.
Gross Weight • 6.4 lbs (2.9 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button

LEDs

• Power LED (Hard drive activity LED)

Expansion Slots
PCI-Express

• 1 PCI-E 3.0 x2 AOC slot (LP) when SSD is not populated

Drive Bays/Storage
Internal

• 1 Fixed 2.5" drive bay when AOC area is not occupied

M.2

• 1 M.2 Key
• Interface: PCI-E 3.0 x2
• Form Factor: B Key 3042/2280

System Cooling
Fans

• 1x 40mm chassis fan

Power Supply
  SXXXXX
  • 84W DC power adapter
System BIOS
BIOS Type

• AMI UEFI

BIOS Features

• UEFI 2.4
• SMBIOS 2.7.1

Management
Software

• OOB
• IPMI 2.0
• NMI
• SuperDoctor® 5
• Watch Dog

Power Configuration

• ACPI / APM Power Management
• CPU thermal trip support for processor protection
• Power-on mode for AC power recovery

Operating Environment/Compliance
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
