  • Supermicro Mid-Tower SuperWorkstation SYS-5035B-TB

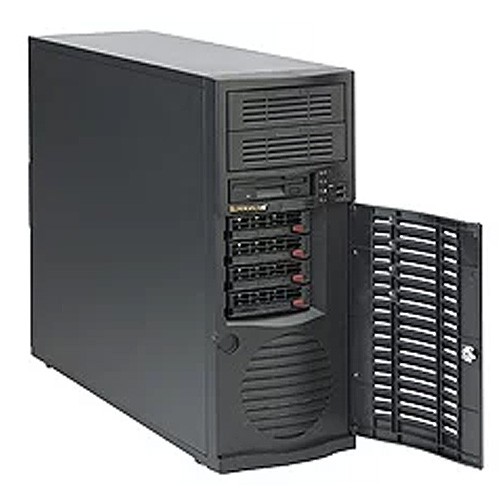

Supermicro Mid-Tower SuperWorkstation SYS-5035B-TB

Call for price.
SKU:SYS-5035B-TB

Quick Overview:

Key Features:
• Whisper Quiet Workstation
• Intel® Core 2 Duo / Quad and Extreme processors
• Up to 8GB memory
• 1x Intel® 82566 PHY PCI-e Gigabit LAN Port
• 4 x Hot-swappable SATA Hard Drive Bays
• 465W High-Efficiency, Low-noise Power Supply


Details

Supermicro SuperWorkstation SYS-5035B-TB

Product SKU
• SuperServer 5035B-TB (Black)
Motherboard
  • Super C2SBX
Processor/Cache
CPU • Single LGA775 Socket
• Supports an Intel® Core™2 Extreme QX9000/QX6000 series processor (Exhaust Fan, FAN-0055, is required)
• Supports an Intel® Core™2 Quad Q9000/Q6000 series processor
• Supports an Intel® Core™2 Duo E8000/E7000/E6000/E4000 series processor
• Supports an Intel® Pentium® dual-core E2000 series processor
• Supports an Intel® Celeron® dual-core E1000 series processor
• Supports an Intel® Celeron® 400 series processor
System Bus • 1333 / 1066 / 800 MHz system bus
System Memory
Memory Capacity • Four 240-pin DIMM sockets
• Supports up to 8 GB of unbuffered, non-ECC DDR3 1333/1066/800MHz memory (Dual Channel)
Memory Type

• DDR3 1333/1066/800MHz unbuffered, non-ECC SDRAM, 240-pin gold-plated DIMMs

DIMM Sizes

• 256 MB, 512 MB, 1 GB, 2 GB

Memory Voltage

• 1.5 V only

On-Board Devices
Chipset • Intel® X38
• ICH9R + PXH/V
Serial ATA • Intel® ICH9R SATA2 (3 Gbps) controller built-in
• RAID 0, 1, 5, 10 support (Windows Only)
Network Controllers • 1x Intel® 82566 Gigabit PCI-Express Ethernet
• Supports 10 BASE-T, 100 BASE-TX, and 1000 BASE-T with RJ45 output
Audio

• High Definition 7.1 Channel Audio

Super I/O

• Winbond 83627DHG chip

Clock Generator

• ICS9LPRS511

Expansion Slots
PCI-Express • 2 (x16) PCI-e 2.0 slot
• 1 (x1) PCI-e slot
PCI-X • 2x 64-bit 133 / 100MHz PCI-X (3.3V) slots
PCI • 2x 32-bit 33MHz PCI (5V) slots
Input/Output
Serial ATA • Six Serial ATA ports (3 Gbps performance)
• Six SATA hard drives supported
IDE • One EIDE channel supports up to two UDMA IDE devices
• ITE8213F chipset
Floppy • 1 Floppy controller; 1.44 MB
LAN • 1x RJ45 LAN port
USB • 12x USB 2.0 / 1.1 compatible
• 6 rear + 2 Type A connectors + 2 headers ( 4 ports )
Audio • High Definition 7.1 Channel Audio
• Line-in / Line-out / Microphone Ports
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Ports • 2x Fast UART 16550 serial ports
Parallel Port • 1x ECP / EEP Parallel Port
Firewire • 1x Firewire IEEE 1394 Port
System BIOS
BIOS Type • 16Mb Flash EEPROM with SPI BIOS®
• Winbond W39V080FAP
BIOS Features • Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
Chassis
Form Factor • Mid-Tower
Model SC733TQ-465B
Dimension and Weight
Height • 16.8" (427 mm)
Width • 7" (178 mm)
Depth • 20.9" (531 mm)
Gross Weight • 39 lbs (17.7 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• Network activity LED
• System Overheat LED

Ports

• 2x Front side USB ports (USB 2.0 ready)

Drive Bays
Hot-swap

• 4x 3.5" SATA hot-swap drive bays

Peripheral Bay

• 2x 5.25" peripheral drive bay
• 1x 3.5" bay for floppy drive

Peripheral Drives
Floppy

• Teac Floppy Drive 3.5" 1.44MB (Optional)

System Cooling
Fans

• 1x 9.2cm Front Thermal Fan

SATA Backplane


• 4 x 3.5" SATA Backplane

Power Supply
  465W AC power supply w/ PFC
AC Voltage • 100 - 240V, 50-60Hz, 6-3 Amp
+5V
• 20 Amp
+5V standby • 3 Amp
+12V • 35 Amp
-12V • 0.5 Amp
+3.3V • 15 Amp
Certification • 80 Plus Certified
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V/+5V Standby, VBAT, HT, Memory, Chipset
• CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
• Adjustable CPU clock frequency ratio

FAN

• Total of five 4-pin fan headers
• 5 x fans with tachometer monitoring
• Status monitor for speed control
• Status monitor for on / off control
• Support 3-pin PWM fans (without speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan conn.

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Monitor 2 (TM2) Support
• PECI

LED

• CPU / System Overheat LED
• Suspend-state indicator LED
• +5V standby alert LED

Other Features






• Chassis intrusion Detection
• Chassis intrusion Header
