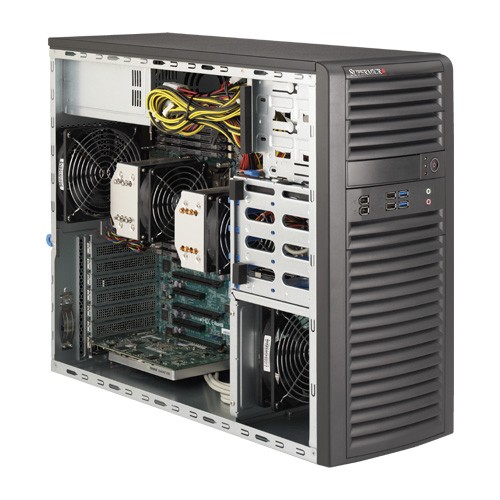

Supermicro Mid-Tower SuperServer SYS-7037A-iL

Call for price.

SKU:SYS-7037A-iL

Quick Overview:

Key Features:
• Dual socket B2 (LGA 1356) Intel® Xeon® processor
• Intel® C602 chipset;
• Up to 192GB DDR3 memory; 6x DIMM slots
• 1 PCI 32,
   1 PCI-E 3.0 x16,
   1 PCI-E 3.0 x4 (in x8)
   3 PCI-E 3.0 x8 (1 allows a x16 card)
• 4x Fixed 3.5" Drive Bays + Optional
   4x Fixed 2.5" SATA2/3 HDD Bays
• 500W High Efficiency Power Supply

Description

Details

Supermicro SuperWorkstation SYS-7037A-iL

Product SKU
SuperWorkstation	• SYS-7037A-iL (Black)

Motherboard
	• Super X9DAL-i

Processor/Cache
CPU	• Dual Socket B2 (LGA 1356) • Intel® Xeon® processor E5-2400 v2
Cache	• Up to 25MB
System Bus	• QPI up to 8 GT/s

System Memory
Memory Capacity	• 6x 240-pin DDR3 DIMM slots • Supports up to 192 GB DDR3 ECC Registered memory (RDIMM)
Memory Type	• 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602 Chipset
SATA	• SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
Network Controllers	• Intel® 82574L Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	• RealTek ALC889 7.1 High Definition Audio with S/PDIF header
Super I/O	• Nuvoton W83627

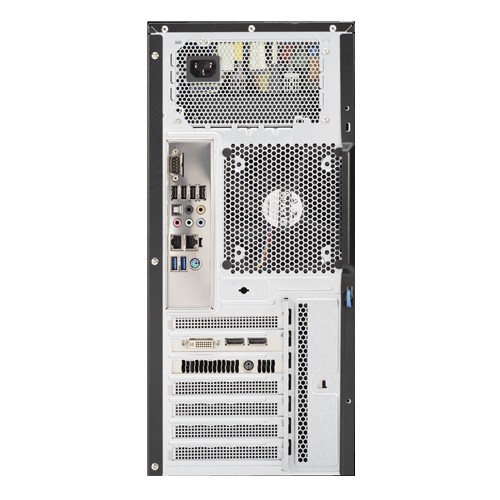

Input/Output
SATA	• 2x SATA 3.0 ports (6Gbps) • 8x SATA 2.0 ports (3Gbps)
LAN	• 2x RJ45 Gigabit Ethernet LAN ports
USB	• 4x USB 3.0 ports (2 rear + 2 via header) • 10x USB 2.0 ports (4 rear + 6 via header)
Audio	• 7.1 HD Audio with optical S/PDIF
Keyboard/Mouse	• PS/2 Keyboard Combo port
Serial Port/Header	• 2x Fast UART 16550 ports / 1 rear and 1 header

Expansion Slots
PCI-Express	• 1x PCI-E 3.0 x16 • 3x PCI-E 3.0 x8 (1 allows a x16 card) • 1x PCI-E 3.0 x4 (in x8) • 1x PCI-32

System BIOS
BIOS Type	• 64Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

System BIOS

BIOS Type

• 64Mb SPI Flash EEPROM with AMI® BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI

Chassis
Form Factor	• Mid-Tower
Model	• CSE-732D4F-500B

Dimension and Weight
Height	• 16.7" (424mm)
Width	• 7.6" (193mm)
Depth	• 20.68" (525.3mm)
Gross Weight	• 40 lbs (18.1 kg)
Available Colors	• Black

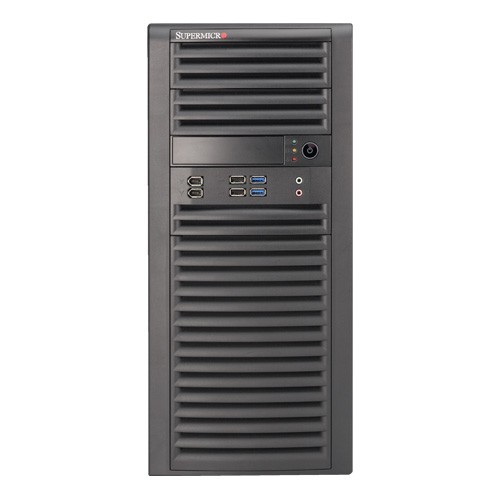

Front Panel
Buttons	• Power On/Off button
LEDs	• Power LED • Hard drive activity LED • Network activity LED • System Overheat LED
Ports	• 2x front USB 3.0 Ports • 2x front USB 2.0 Ports • 2x front HD/AC97 Audio Ports

Drive Bays
Internal	• 4x Fixed 3.5" Drive Bays • 4x Fixed 2.5" Drive Bays (optional) • Enterprise SATA HDD only recommended

System Cooling
Fans	• 1x 12cm rear exhaust fan with Optimal Fan Speed Control • Optimized cooling technology for Whisper-Quiet Operation

Power Supply
	500W AC power supply w/ PFC
AC Voltage	• 100 - 240V, 50-60Hz, 7-3.5 Amp
+5V	• 20 Amp
+5V standby	• 3 Amp
+12V1	• 17 Amp
+12V2	• 17 Amp
+12V3	• 17 Amp
+12V4	• 18 Amp
-12V	• 0.5 Amp
+3.3V	• 15 Amp
Certification	• Bronze Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages • 6-Phase-switching voltage regulator
FAN	• Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI

Operating Environment/Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
