  • Supermicro Mid-Tower SuperServer SYS-5037C-T

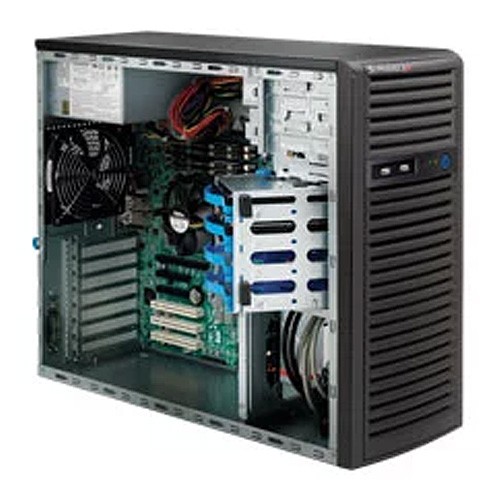

Supermicro Mid-Tower SuperServer SYS-5037C-T

Call for price.
SKU:SYS-5037C-T

Quick Overview:

Key Features:
• Single socket H2 (LGA 1155) Intel® Xeon
• Up to 32GB memory in 4 sockets
• Intel® 82574L, 2x GbE LAN ports
• Front I/O: 2x USB 2.0 ports
• 4x 3.5" internal SATA HDDs
• 500W High-efficiency Power Supply


Details

Supermicro SuperServer SYS-5037C-T

Product SKU
• SYS-5037C-T (Black)
Motherboard
  • Super X9SCA
Processor/Cache
CPU • Intel® Xeon® processor E3-1200 & v2 series, Intel® 2nd Gen and 3rd Gen Core i3, Intel® Pentium® and Celeron processors *
• Socket H2 (LGA 1155)
System Memory
Memory Capacity • 4x 240-pin DDR3 DIMM slots
• Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type

• 1600*/1333/1066MHz ECC DDR3, 240-pin gold-plated DIMMs

DIMM Sizes

• 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset • Intel® C204 PCH chipset
SATA • 4x SATA 2.0 (3Gbps) w/ RAID 0, 1, 5, 10
• 2x SATA 3.0 (6Gbps) w/ RAID 0, 1
Network Controllers • Intel® 82574L, 2x Gigabit LAN ports
• Virtual Machine Device Queues High efficient I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT 3 support for fast, scaleable, and reliable networking
• VMDq support for better performance of virtualization
Graphics

• Matrox G200eW 16MB DDR2

Super I/O

• Nuvoton WPCM450RA0BX

Expansion Slots
PCI-Express • 1 PCI-E 3.0* x16 slot
• 2 PCI-E 2.0 x4 (in x8) slots
PCI • 3 PCI 32-bit slots
Input/Output
Serial ATA • 6 SATA 2.0 ports
• 6 SATA hard drives supported
LAN • 2x RJ45 LAN ports
USB • 2x USB rear ports
• 6x USB ports via header
• Total 8 USB 2.0 Compliant
VGA • 1x VGA port
Serial Port/Header • 2x Fast UART 16550 serial port (one header and one rear port)
System BIOS
BIOS Type • 32Mb SPI Flash EEPROM with AMI BIOS
BIOS Features












• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3








Chassis
Form Factor • Mid-Tower
Model CSE-732i-500B
Dimension and Weight
Height • 16.7" (424 mm)
Width • 7.6" (193 mm)
Depth • 20.68" (525.3 mm)
Gross Weight • 32.5 lbs (14.74 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button

LEDs

• Power LED
• Hard drive activity LED
• Network activity LED
• System Overheat LED

Ports

• 2x Front side USB 2.0 ports

Drive Bays
Internal

• 4x 3.5" tool-less HDD trays (90° rotatable drive cage)
• Enterprise SATA HDD only recommended

Peripheral Bays

• 2x 5.25" peripheral drive bays
• 1x 3.5" external drive bay (OEM option)

System Cooling
Fans

• 1x 12cm rear exhaust fan with optimal fan speed control
• Optimized Cooling Technology at 21dB Whisper-Quiet Operation

Power Supply
  500W AC power supply w/ PFC
AC Voltage • 100 - 240V, 50-60Hz, 7-3.5 Amp
+5V
• 20 Amp
+5V standby • 3 Amp
+12V1 • 17 Amp
+12V2 • 17 Amp
+12V3 • 17 Amp
+12V4 • 18 Amp
-12V • 0.5 Amp
+3.3V • 15 Amp
Bronze Certified • Bronze Certified
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages
• 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V

FAN

• Total of 5 fan headers supporting up to 5 fans

Temperature

• Monitoring for CPU and chassis environment
• Thermal Control for 5x fan connectors
• PECI

Operating Environment
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
