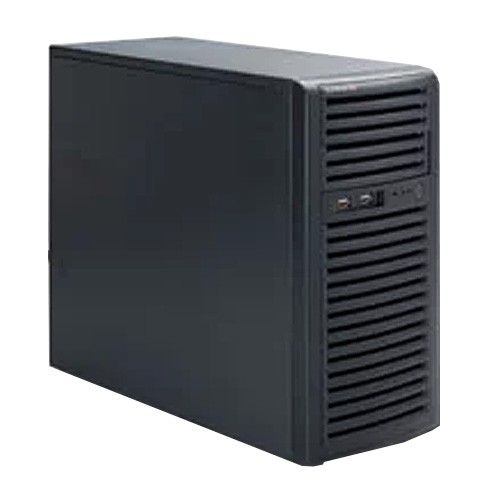

  • Supermicro Mid-Tower SuperServer SYS-5036I-I

Supermicro Mid-Tower SuperServer SYS-5036I-I

Call for price.
SKU:SYS-5036I-I

Quick Overview:

Key Features:
• Intel Xeon processor
• Up to 32GB of memory
• 2 (x8) PCI-E 2.0,
   1 (x4) PCI-E (in x8)
   1x 32-bit 33MHz PCI slot
• Dual Intel® 82574L Gigabit Ethernet Controllers
• 2x 5.25" external drive bays,
  4x 3.5" internal drive bays
• 300W High-Efficiency, Low-noise Power Supply


Details

Supermicro SuperServer SYS-5036I-I

Product SKU
• SuperServer 5036I-I (Black)
Motherboard
  • Super X8SIL
Processor/Cache
CPU • LGA 1156 Socket
• Intel® Xeon® X3400 series
• Intel® Xeon® L3400 series
• Intel® Core™ i3
• Intel® Pentium® G6950
• Intel® Celeron® G1101
System Memory
Memory Capacity







• 4x 240-pin DDR3 DIMM slots
• Supports up to 32 GB DDR3 ECC Registered memory (RDIMM)
• Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM)
• 1333 / 1066 / 800 MHz
• Dual Core processors of Ci3 and Pentium: support ECC UDIMM only


Note: Supports 1-Gb and 2-Gb x8 devices only - Intel 3420 / 3400 Chipset Memory Requirements

Note

• All X3400 series and L3426 CPU support RDIMM and UDIMM
• All i3 series, L3406, G6950, and G1101 CPU support UDIMM only

Memory Type

• 1333 / 1066 / 800 MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 1GB, 2GB, 4GB, 8GB

Memory Voltage

• 1.5 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset • Intel® 3400 chipset
SATA • 4x SATA (3 Gbps)
Network Controllers • 2x Intel® 82574L Gigabit Ethernet Controllers
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA

• Matrox G200eW 16MB DDR2

Super I/O

• Winbond 83627DHG-P

Clock Generator

• CK505

Expansion Slots
PCI-Express • 2 (x8) PCI-E 2.0 slot
• 1 (x4) PCI-E (using x8 slot)
PCI • 1 32-bit PCI slot
Input/Output
Serial ATA • 4 SATA hard drives supported
LAN • 2x RJ45 LAN ports
USB • 2x USB rear ports
• 1x USB on-board
• 1x USB internal header (2 ports)
• Total 5 USB 2.0 Compliant
VGA • 1x VGA port
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Port/Header • 1x Fast UART 16550 serial port
• 1x internal header
System BIOS
BIOS Type • 32Mb SPI Flash EEPROM with AMI BIOS
BIOS Features • DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
Chassis
Form Factor • Mid-Tower
Model CSE-731i-300B
Dimension and Weight
Height • 14.25" (362 mm)
Width • 7.25" (184 mm)
Depth • 16.75" (425 mm)
Gross Weight • 17.4 lbs (7.9 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• Network activity LED
• System Overheat LED

Ports

• 2x Front side USB ports (USB 2.0 ready)

Drive Bays
Internal

• 4x 3.5" tool-less HDD trays

External

• 2x 5.25" external drive bays
• 1x 3.5" external drive bay (OEM option)

System Cooling
Fans

• 1x 9cm (rear) PWM fan w/ tool-less design
• 1x 8cm (front) cooling fan (optional)

Power Supply
  300W AC power supply w/ PFC
AC Voltage • 100 - 240V, 50-60Hz, 5 Amp
DC Output
• 5V + 12V + 3.3V - 12V < 290W
+5V • 19 Amp
+5V standby • 2.0 Amp
+12V • 11 Amp + 11.5 Amp
-12V • 0.15 Amp
+3.3V • 16.0 Amp
Certification • Bronze Certified
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages
• 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V

FAN

• Total of 5 fan headers supporting up to 5 fans
• Five 4-pin fan headers
• 5x fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• FC temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI

LED

• CPU / System Overheat LED
• +5V Standby alert LED

Other Features

• Chassis intrusion detection
• Chassis intrusion header
