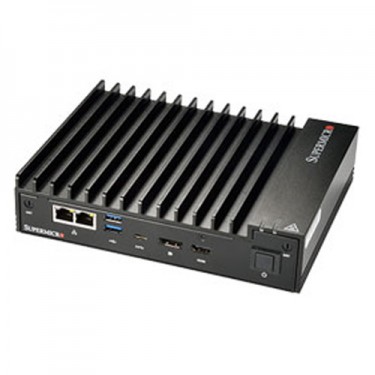

Supermicro SuperServer SYS-E100-9S-E
|
Product SKU
| |
|---|---|
| SYS-E100-9S-E | • SuperServer E100-9S-E (Black) |
|
Motherboard
| |
|---|---|
| • Super X11SSN-E-WOHS | |
| Processor/Cache
|
|
|---|---|
| CPU | • 7th Generation Intel® Core i5-7300U Processor • Single Socket FCBGA 1356 • System-on-Chip • CPU TDP support 15W |
|
System Memory
| |
|---|---|
| Memory Capacity | • Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots |
| Memory Type | • DDR4 up to 2133MHz |
| DIMM Sizes | • 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2V |
|
On-Board Devices
| Chipset | • System on Chip |
|---|---|
| Network Controllers | • Single LAN with Intel® I210IT • Single LAN with Intel® PHY I219LM |
| Video | • Intel® HD Graphics 620 |
|
Input/Output
| USB | • 1 USB 3.1 (Type C) • 2 USB 3.0 (rear via header) • 4 USB 2.0 (rear via headers) |
Video Output | • 1 DP (Display Port) port • 1 HDMI port |
COM Port | • 4 COM ports (4 headers) • 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control |
|---|---|
| Audio | • 1 HD Audio header (Mic-in/Line-Out) (option) |
| Others |
• 1 DIO via DB9 |
|
Chassis
| |
|---|---|
| Form Factor | • 3.5" SBC |
| Model | • CSE-E101-01 |
|
Dimension and Weight
| |
|---|---|
| Width | • 7.68" (195mm) / 9.5" (241mm) - pkg. |
| Height | • 1.73" (44mm) / 5.5" (140mm) - pkg. |
| Depth | • 5.94" (151mm) / 8" (203mm) - pkg. |
| Net Weight | • 2.65 lbs (1.2 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED and Hard drive activity LED |
|
Expansion Slots
| |
|---|---|
| PCI-Express | • 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2, 1 SATA Gen3) |
| M.2 |
• Interface: SATA and PCIe 3.0 x1 and USB 2.0 |
|
Drive Bays
| |
|---|---|
| Internal |
• 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket) |
|
System Cooling
| |
|---|---|
| Fan | • Fan-less design |
|
Power Supply
| |
|---|---|
| • Lockable 12V DC 60W power adapter | |
|
System BIOS
| |
|---|---|
| BIOS Type |
• AMI UEFI |
|
Management
| |
|---|---|
| Software |
• SuperDoctor® 5 |
| Power Configuration |
• +12V DC Power Input • ACPI Power Management • Control of power-on for recovery from AC power loss • Force Power On by Jumper • CPU thermal trip support for processor protection |
|
Operating Environment/Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
0°C ~ 50°C (32°F ~ 122°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
