  • Supermicro 4U SuperChassis CSE-847E16-R1K28LPB

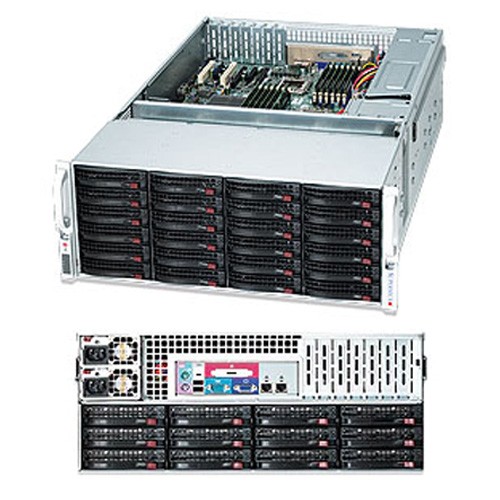

Supermicro 4U SuperChassis CSE-847E16-R1K28LPB

Call for price.
SKU:CSE-847E16-R1K28LPB

Quick Overview:

Key Features:
• 4U Chassis
• Maximum motherboard sizes: 13.68" x 13"
• Intel® and AMD processors
• 36 x 3.5" hot-swap HDD bays for server chassis
• 1U 1280W Redundant Platinum 95%+ PS
• 7 x 8cm hot-swap redundant PWM cooling fan(s)


Details

Supermicro 4U SuperChassis CSE-847E16-R1K28LPB

Product SKU
CSE-847E16-R1K28LPB • SuperChassis 847E16-R1K28LPB
Form Factor
  • 4U chassis - supports for maximum motherboard sizes: 13.68" x 13", E-ATX and ATX motherboards
Dimensions
Height

• 7" (178 mm)

Width

• 17.2" (437 mm)

Depth

• 27.5" (699 mm)

Gross Weight

• 91 lbs (41.28 kg)

Available Color

• Black

Expansion Slots
  • 7 low-profile expansion slot(s)
Drive Bays
  • 36 x 3.5" hot-swap HDD bays for server chassis
Front Panel
Buttons • Power On/Off button
• System Reset Button
LEDs
































• 2 Network Activity LEDs
• Fan Fail/System Over Heat LED
• HDD activity LED
• Power Status LED





























Servers (for CSE- 847E16-R1K28LPB)


• 6047R-E1R36N
• 6047R-E1R36L

System Cooling
Fans

• 7 x 8cm hot-swap redundant PWM cooling fan(s)

System Monitoring


• Chassis intrusion switch

Operating Environment (System)
Operating
Temperature Range

• 5°C - 35°C (41°F - 95°F)

Non-Operating
Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative
Humidity Range

• 8% - 90% (non-condensing)

Non-Operating
Relative Humidity
Range

• 5% - 95% (non-condensing)

Power Supply


• 1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus

Power Efficiency

• 95%

Total Output
Power and Input

• 1000W with Input 100 - 140Vac
• 1280W with Input 180 - 240Vac

AC Input
Frequency

• 50-60Hz

Dimensions
(L x W x H)

• 336 x 76 x 40 mm

Output Type

• Backplanes (gold finger)

+12V

• Max: 83A / Min: 0.5A (100Vac - 140Vac)
• Max: 106.7A / Min: 0.5A (180Vac - 240Vac)

+5Vsb

• Max: 4A / Min: 0A

Power Distributor

• PDB-PT847-8824
• O/P: 12V/135
• +5V Max: 100
• +3.3V Max: 30
• -12V Max: 0.6

Certification

• Platinum Certified

Regulatory (Power Supply)
Power Supply
Safety / EMC

• BSMI
• CCC
• CE/EMC
• FCC class B
• TUV/CB
• UL/CUL
