Details

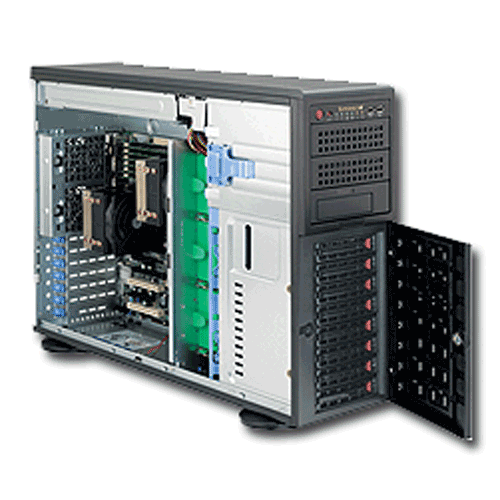

Supermicro Super X8DT3 Server Motherboard and SC745TQ-R800B 4U Rackmountable Tower Chassis.
|
Product SKU
| |
|---|---|
| SYS-7046T-3R | • SuperServer 7046T-3R (Black) |
|
Motherboard
| |
|---|---|
| Super X8DT3 | |
|
Processor/Cache
| |
|---|---|
| CPU | • Dual 1366-pin LGA Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Intel® Xeon®Processor 5600 Series (Westmere) • Intel® Xeon®Processor 5500 Series (Nehalem-EP) |
| QPI | • up to 6.4 GT/s |
|
System Memory
| |
|---|---|
| Memory Capacity | • 16x 240-pin DIMM slots • Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory • Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory • Memory Mirroring supported |
| Memory Type |
• 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 1GB, 2GB, 4GB , 8GB , 16GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
|
On-Board Devices
| Chipset | • Intel® 5520 (Tylersburg) chipset • ICH10R + IOH-36D |
|---|---|
| SAS | • LSI SAS1068E • RAID 0, 1, 10 support • (Optional: AOC-IButton68) RAID 5 support |
| SATA | • Intel ICH10R SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support |
| Network Controller |
• Intel® 82576 Dual-Port Gigabit Ethernet Controller |
| Graphics | • Matrox G200eW |
| Super I/O | • Winbond 83827HF chip |
|
Expansion SLot
| |
|---|---|
| PCI-Express | • 3 (x8) PCI-E 2.0 (1 in x16 slot) • 1 (x4) PCI-E slot |
| PCI | • 2x 33MHz PCI slots |
|
Input/Output
| |
|---|---|
| SAS | • 8 SAS / SATA ports |
| Serial ATA | • Six Serial ATA ports |
| Floppy | • 1 Floppy controller; 1.44 MB |
| LAN | • 2x RJ45 LAN ports |
| USB | • 4x USB rear ports |
| VGA | • 1x VGA Port |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Port/Header | • 1 Fast UART 16550 serial port |
|
System Bios
| |
|---|---|
| Bios Type | 32Mb SPI Flash EEPROM with AMI® BIOS |
| Bios Features | • Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support |
|
Chassis
| |
|---|---|
| Form Factor | • 4U Rackmountable / Tower • Optional Rackmount Kit (CSE-PT26) |
| Model | • SC745TQ-R800B |
|
Dimension and Weight
| |
|---|---|
| Height | • 17.2" (437mm) |
| Width | • 7.0" (178mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • 63 lbs (28.6kg) |
| Available Color | • Black |
|
Front Panel
| |
|---|---|
| Buttons |
• Power On/Off button |
| LEDs | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • Power Fail LED |
| Ports | • 2x USB Ports |
|
Drive Bays
| |
|---|---|
| Hot-swap |
• 8x Hot-swap Drive Bays |
| Peripheral Bay(s) | • 2x 5.25" Peripheral Drive Bay • 1x 3.5" Bay |
|
SAS/SATA Backplane
| |
|---|---|
|
• SAS / SATA Backplane w/ Enclosure Management |
|
|
System Cooling
| |
|---|---|
| Fans |
• 3x 5000 RPM Hot-Swappable Cooling Fans |
| Shroud | • 1x Air Shroud |
|
Power Supply and Distributor
| |
|---|---|
| 800W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC | |
| AC Voltage | • 100 - 240V, 50-60Hz, 10-4 Amp |
| +5V standby | • 4 Amp |
| +12V | • 66 Amp |
| With Power Distributor |
• +5V: 30 Amp • +3.3V: 24 Amp • -12V: 0.6 Amp |
|
PC Health Monitoring
| |
|---|---|
| CPU |
• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages. |
| FAN | • Total of eight fan headers supporting up to 8 fans • Eight 4-pin fan headers • 8x fans with tachometer status monitoring • Support 3-pin fans (w/o speed control) • Low noise fan speed control |
| Temperature | • Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI |
| Other Features | • Chassis intrusion detection • Chassis intrusion header |
|
Operating Environment / Compliance
| |
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature: 10°C to 35°C (50°F to 95°F)
|
