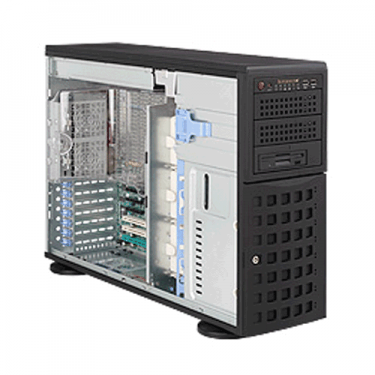

Superworkstation SYS-7045W-NTR+ Rackmountable/Tower

Supermicro SYS-7045W-NTR+ 4U Rackmountable/Tower with 800W High Efficiency Redundant Power Supply, Intel® 5400 (Seaburg) chipset support, 8x Hot-swap Drives using
Supermicro Super X7DWN+ Server Motherboard and SC745TQ-R800 4U Rackmountable Tower Chassis.
Product SKU
• SuperServer 7045W-NTR+ (Beige)
• SuperServer 7045W-NTR+B (Black)
Motherboard
        Super X7DWN+
Processor/Cache
CPU • Dual 771-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Quad-Core Intel® Xeon®Processor 5400/5300LV sequence (Harpertown /Clovertown processor) up to 3.20 GHz
• Dual-Core Intel® Xeon®Processor 5200/5100LV sequence (Wolfdale/Woodcrest processor) up to 3.40 GHz
System Bus • 1600 / 1333 / 1066 MHz system bus
System Memory
Memory Capacity • Sixteen 240-pin DIMM slots
• Supports up to 128 GB 800 / 667 / 533MHz DDR2 ECC FB-DIMM memory
• Dual branch memory bus
• Memory must be populated in pairs
• Memory Sparing supported
Memory Type

• 800 / 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes • 512 MB, 1GB, 2GB, 4GB , 8GB**
Memory Voltage • 1.8 V or 1.5 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset

• Intel® 5400 (Seaburg) chipset
• ESB2

SATA

• Intel ESB2 SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support (Wondows only)

IPMI

• Support for Intelligent Platform Management Interface v.2.0 / 1.5
• 200-pin IPMI slot (SIMSO(+))
• (Optional: AOC-SIMSO(+))
• For Dedicated LAN, cable CBL-0177L must be used (cable sold separately)

Network Controllers

• Intel® 82575 Dual-Port Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT support for fast, scaleable, and reliable networking

Graphics

• ATI ES1000 controller with 32 MB of video memory

Super I/O

• Winbond 83627HG chip

Expansion SLot
PCI-Express • 3 (x8) PCI-E slots (2 w/ Gen 2.0)
• 1 (x4) PCI-E slot
PCI • 2x 64-bit 133MHz PCI-X (3.3V) slots
UIO  • 1x UIO slot
Input/Output
Serial ATA

• Six Serial ATA ports
• Six SATA hard drives supported

IDE

• Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card
• Compact Flash (40-pin connector, IDE 1, single channel) slot
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100

LAN

• 2x RJ45 LAN ports

USB

• 2x USB rear ports
• 3x USB internal headers
• Total 5 USB 2.0 Compliant / 1.1 Compliant

VGA

• 1x VGA Port

Keyboard/Mouse

• PS/2 keyboard and mouse ports

Serial Port/Header

• 1 Fast UART 16550 serial port
• 1 Serial header

System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
• EFI BIOS Support
Bios Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3

Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit (CSE-PT26)
Model SC745TQ-R800
Dimension and Weight
Height • 17.2" (437mm)
Width • 7.0" (178mm)
Depth • 25.5" (648mm)
Gross Weight • 63 lbs (28.6kg)
Available Color • Beige,Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• Power Fail LED
Ports • 2x USB Ports
Drive Bays
Hot-swap

• 8x Hot-swap Drive Bays
• Supports up to 6x SATA Hard Drives

Peripheral Bay(s) • 3x 5.25" Peripheral Drive Bays
SAS/SATA Backplane


• SAS / SATA Backplane w/ Enclosure Management

System Cooling
Fans

• 3x 5000 RPM Hot-Swappable Cooling Fans
• 2x 5000 RPM Hot-Swappable Rear Exhaust Fan

Shroud • 1x Air Shroud
Power Supply and Distributor
  800W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
AC Voltage • 100 - 240V, 50-60Hz, 10-4 Amp
+5V standby • 4 Amp
+12V • 66 Amp
With Power
Distributor
• +5V: 30 Amp
• +3.3V: 24 Amp
• -12V: 0.6 Amp
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
• 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V

FAN • Total of eight fan headers supporting up to 8 fans
• Eight 4-pin fan headers
• Four 3-pin fan headers
• 8x fans with tachometer status monitoring
• Status monitor for speed control
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x fan connectors
• Thermal Monitor 2 (TM2) support
• PECI
LED • CPU / System Overheat LED
Other Features • Chassis intrusion detection
• Chassis intrusion header
• SDDC Support
Operating Environment / Compliance
RoHS • RoHS Compliant 5/6, Server Exemption
Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
