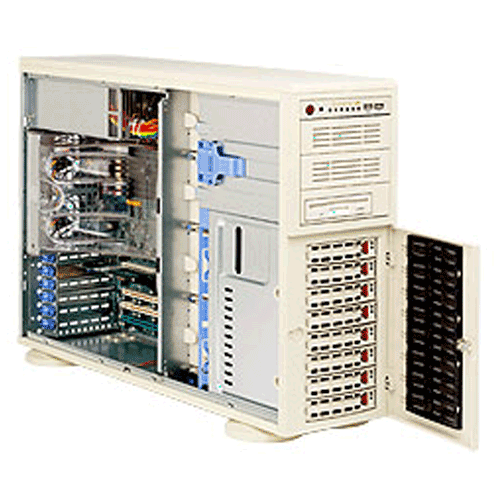

Supermicro 4U Rackmountable Tower SYS-7045B-T | SuperServer

Call for price.

SKU:SYS-7045B-T

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 667 / 1066 /
1333 MHz FSB
• Up to 32GB 667/533MHz DDR2 ECC FB-DIMM (Fully Buffered DIMM)
• 2 (x8) & 1 (x4) PCI-Express, 2x 64-bit 133MHz PCI-X,
1x 64-bit 100MHz PCI-X
• Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controllerr
• 6 x 3.5" Hot-swap SAS/SATA Drive Bays
• 650W Power Supply
• Tower or Rackmount

Description

Details

Superworkstation SYS-7045B-T / SYS-7045B-TB 4U Rackmountable/Tower

Supermicro SYS-7045B-T / SYS-7045B-TB 4U Rackmountable/Tower with 650W Power Supply, Intel® 5000P (Blackford) chipset support 6x SATA Hot-swap Drives and using
Supermicro Super X7DBE Server Motherboard and SC743TQ-650 4U Rackmountable Tower Chassis.

Product SKU
SYS-7045B-T	• SuperServer 7045B-T (Beige)
SYS-7045B-TB	• SuperServer 7045B-TB (Black)

Motherboard
	Super X7DBE

Processor/Cache
CPU	• Dual 771-pin LGA Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz • Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz • NOTE: Motherboard PCB revision 2.0 or above is required to support Xeon® 5100 (Woodcrest) processors
System Bus	• 1333 / 1066 / 667 MHz system bus
OS Software	• Supports 64-bit Operating Systems • Supports 32-bit Operating Systems

System Memory
Memory Capacity	• Eight 240-pin DIMM sockets • Supports up to 32 GB 667 / 533MHz DDR2 FB-DIMM memory • Dual branch memory bus • Memory must be populated in pairs
Memory Type	• 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 512 MB, 1GB, 2GB, 4GB
Memory Voltage	• 1.8V only • 1.5V(AMB)
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset	• Intel® 5000P (Blackford) chipset • MCH + PXH + ESB2
SATA	• Intel ESB2 SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • 200-pin IPMI slot (SIMLP) • (Optional: AOC-SIMLP-B(+)) • (Optional: AOC-SIMLP-3(+)) with 3rd LAN support
Network Controller	• Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/OAT support for fast, scaleable, and reliable networking
Graphic	• ATI ES1000 controller with 16 MB of video memory
Super I/O	• Winbond 83627HG chip

Expansion SLot
PCI-Express	• 2 (x8) PCI-e slots • 1 (x4) PCI-e (using x8) slot
PCI-x	• 2x 64-bit 133MHz PCI-X (3.3V) slots • 1x 64-bit 100MHz PCI-X (3.3V) slot

Input/Output
Serial ATA	• Six Serial ATA ports • Six SATA hard drives supported
IDE	• Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card • Compact Flash (40-pin connector, IDE 1, single channel) slot • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
LAN	• 2x RJ45 LAN ports
USB	• 2x USB rear ports • 3x USB internal headers • Total 5 USB 2.0 Compliant / 1.1 Compliant
VGA	• 1x VGA port
Keyboard/Mouse	• PS/2 keyboard and mouse ports
Serial Port/Header	• 1 Fast UART 16550 serial port • 1 Fast UART 16550 serial header
Parallel Port	• 1 ECP / EEP parallel port

System Bios
Bios Type	• 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features	• Plug and Play (PnP) • SMBIOS 2.3 • DMI 2.1 • PCI 2.2 • ACPI 1.0 • USB Keyboard support • Hardware BIOS Virus protection

Chassis
Form Factor	• 4U Rackmountable / Tower • Optional Rackmount Kit (CSE-PT26)
Model	• SC743TQ-650

Dimension and Weight
Height	• Tower: 17.2" (437mm) • Rackmount: 7.0" (178mm)
Width	• Tower: 7.0" (178mm) • Rackmount: 17.2" (437mm)
Depth	• 25.5" (648mm)
Gross Weight	• 63 lbs (28.6kg)
Available Color	• Beige / Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • Power Fail LED
Ports	• 2x USB Ports

Drive Bays
Hot-swap	• 6x SATA Hot-swap Drives
Peripheral Bay(s) [90oRotatable]	• 3x 5.25" Peripheral Drive Bays

SAS/SATA Backplane
	• SC743 SAS / SATA Backplane w/ Enclosure Management

System Cooling
Fans	• 4x 5000 RPM Hot-swappable PWM Cooling Fans • 2x 5000 RPM Hot-Swappable Rear Exhaust Fan
Shroud	• 1x Air Shroud

Power Supply
	650W Redundant-Cooling AC power supply with PFC [ 24-pin, (4-pin, 8-pin) = 12V ]
AC Voltage	• 100 - 240V, 50 - 60Hz, 11 - 5 Amp
DC Output	• 5V + 3.3V ≤ 160W
+5V	• 30.0 Amp
+5V standby	• 4.0 Amp
+12V	• 46.0 Amp
-12V	• 0.6 Amp
+3.3V	• 30.0 Amp

PC Health Monitoring
CPU	• Monitors for CPU Cores, +3.3V, +5V, ±12V, +1.2V • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	• Total of four 3-pin and four 4-pin fan headers supporting up to 8 fans • 8x fans with tachometer status monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x fan connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support
LED	• CPU / System Overheat LED
Other Features	• Chassis intrusion detection • Chassis intrusion header • SDCC Support

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
