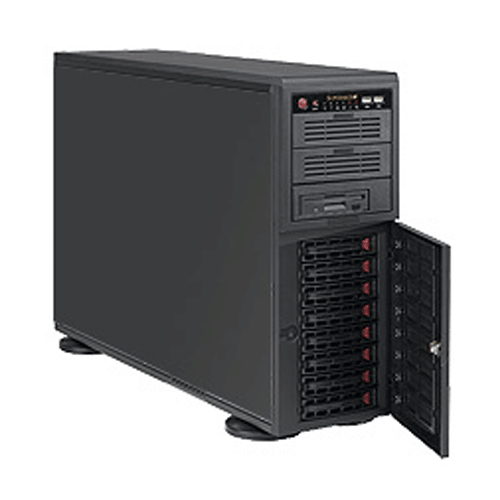

Supermicro 4U Rackmountable Tower SYS-7045A-C3B | SuperServer

Call for price.

SKU:SYS-7045A-C3B

Quick Overview:

Key Features:
• Whisper Quiet Workstation (28dB) with High-end Graphics Support
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 1333 /
1066 MHz FSB
• Up to 48GB 667/533MHZ DDR2 ECC Register SDRAM
• 1 (x16) PCI-E , 1 (x4) PCI-E (using x16 slot), 2x PCI-X
133/100MHz, 2x PCI 33MHz slots
• Intel® Dual 82573V/L Gigabit Ethernet Controller
• LSI 1068E 8-Port SAS Controller; RAID 0, 1, 10
• 8x 3.5" Hot-swap SAS/ SATA Drive Bays
• 865W Low-Noise High Efficiency Power Supply
• Tower or Rackmount
• PWM Fan Speed Control

Description

Details

Superworkstation SYS-7045A-C3B Rackmountable/Tower

Supermicro SYS-7045A-C3B 4U Rackmountable/Tower with 865W Low-Noise Power Supply,Intel® 5100 (San Clemente) chipset, 8x SAS Hot-swap Drives using Supermicro
Super X7DCA-3 Server Motherboard and SC743TQ-865-SQ 4U Rackmountable Tower Chassis.

Product SKU
SYS-7045A-C3B	• SuperServer 7045A-C3B (Black)

Motherboard
	Super X7DCA-3

Processor/Cache
CPU	• Dual 771-pin LGA Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz • Dual-Core Intel® Xeon®Processor 5200/5100 sequence (Wolfdale/Woodcrest processor) up to 3.40 GHz
System Bus	• 1333 / 1066 MHz system bus
OS Software	• Supports 64-bit Operating Systems • Supports 32-bit Operating Systems

System Memory
Memory Capacity	• Six 240-pin DIMM slots • Supports up to 48GB 667/533MHz DDR2 ECC Register memory • Memory must be populated in pairs
Memory Type	• 667/533MHz Register DDR2 ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 512 MB, 1GB, 2GB, 4GB , 8GB**
Memory Voltage	• 1.8 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® 5100 (San Clemente) chipset • Intel® ICH9R + PXH-V
SAS	• LSI SAS1068E • RAID 0, 1, 10 support • (Optional: AOC-IButton68) RAID 5 support
SATA	• Intel ICH9R SB SATAII Controller • RAID 0, 1, 5, 10 support (Windows only) • RAID 0, 1, 10 support (Linux)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • 200-pin IPMI slot (SIMLP) • (Optional: AOC-SIMLP-B) • (Optional: AOC-SIMLP-3) with 3rd LAN support Note: KVM-over-LAN not supported - there is no DVO signal to the IPMI slot
Network Controllers	• Intel® Dual 82573V/L Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/OAT support for fast, scaleable, and reliable networking
Audio	• High Definition 7.1 Channel Audio
Super I/O	• Winbond 83627DHG chip
Clock Generator	• CK505 chip

Expansion SLot
PCI-Express	• 1 (x16) PCI-E slot • 1 (x4) PCI-E (using x16) slot
PCI-X	• 2x 64-bit 133/100MHz PCI-X (3.3V) slots
PCI	• 2x 32-bit 33MHz PCI (5V) slots

Input/Output
SAS	• 8 SAS / SATA ports
Serial ATA	• Six Serial ATA ports • Six SATA hard drives supported
IDE	• Single EIDE channel supports up to two UDMA IDE devices(IDE-M, IDE-S) including CF card • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
LAN	• 2x RJ45 LAN ports
USB	• 4x USB rear ports • 6x USB internal header • 10 total USB ports, 2.0 Compliant
Audio	• High Definition 7.1 Channel Audio • Line-in / Line-out / Microphone Ports
Keyboard/Mouse	• PS/2 keyboard and mouse ports
Serial Port/Header	• 1 Fast UART 16550 serial port • 1 Hheader
Parallel Port	• 1 ECP / EEP parallel port

Chassis
Form Factor	• 4U Rackmountable / Tower • Optional Rackmount Kit (CSE-PT26)
Model	• SC743TQ-865-SQ

Dimension and Weight
Height	• 17.2" (437mm)
Width	• 7.0" (178mm)
Depth	• 25.5" (648mm)
Gross Weight	• 63 lbs (28.6kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED
Ports	• 2x USB Ports

Drive Bays
Hot-swap	• 8x SAS Hot-swap Drives
Peripheral Bay(s) [90oRotatable]	• 3x 5.25" Peripheral Drive Bays

SAS/SATA Backplane
	• SC743 SAS / SATA Backplane w/ Enclosure Management

System Cooling
Fans	• 2x 8cm Hot-swappable PWM Cooling Fans • 1x 9cm Hot-Swappable Rear Exhaust PWM Fan • 2x Active heatsink w/ heatpipe

Power Supply
	865W AC power supply (cooling-redundant) w/ PFC
AC Voltage	• 100 - 240V, 50-60Hz, 12-6 Amp
+5V standby	• 6.5 Amp
+12V	• 70 Amp
+5V	• 30 Amp
+3.3V	• 30 Amp
-12V	• 1 Amp
Certification	• Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages. • CPU Core 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	• Eight 4-pin fans • 8x fans with tachometer status monitoring • Status monitor for speed control • Status monitor for on/off control • Support 3-pin fans (w/o speed control) • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x fan connectors • PSU I2C temperature sensing logic • PECI • Thermal Monitor 2 (TM2) support
LED	• CPU / System Overheat LED • Suspend-state indicator LED • +5V Standby alert LED
Other Features	• Chassis intrusion detection • Chassis intrusion header • SDDC Support

System Bios
Bios Type	• 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features	• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 1.0 / 2.0 • ACPI 1.0 (limited) • USB Keyboard support • Hardware BIOS Virus protection

Operating Environment / Compliance
RoHS	• RoHS Compliant 6/6, Pb Free
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
