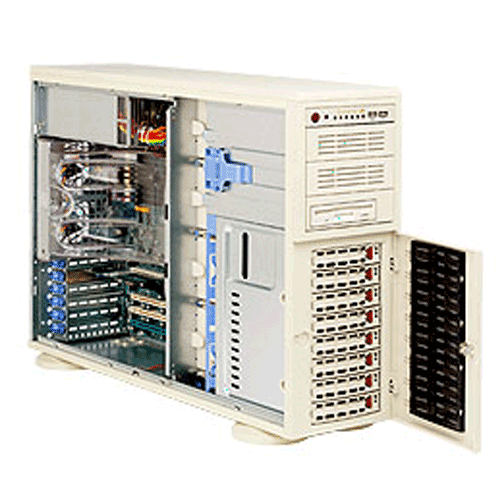

  • Supermicro 4U Rackmountable Tower SYS-7044H-TR | SuperServer

Supermicro 4U Rackmountable Tower SYS-7044H-TR | SuperServer

Call for price.
SKU:SYS-7044H-TR

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Support up to 3.60 GHz
• Up to 16GB DDR 333MHz SDRAM (or) Up to 32GB
   DDR 266MHz SDRAM
• 2 (x8) PCI-Express, 1x 64-bit 133MHz PCI-X,2x
   64-bit 100MHz PCI-X, 1x 32-bit 33MHz PCI
• Dual Intel® 82541GI Gigabit Ethernet Controllers
• Zero Channel RAID Support
• 8x 3.5" Hot-swap SATA Drive Bays
• Triple-Redundant 760W power supply with I2C For
   Remote Management
• Tower or Rackmount
• 100% Cooling Redundancy


Details

Superworkstation SYS-7044H-TR / SYS-7044H-TRB Rackmountable/Tower

Supermicro SYS-7044H-TR / SYS-7044H-TRB 4U Rackmountable/Tower with 760W Triple-Redundant PowerSupply, Intel® E7520 chipset, 8x 3.5"SATA Hot-swap Drive Bays, using
Supermicro Super X6DHT-G Server Motherboard and SC743T-R760 4U Rackmountable Tower Chassis.
Product SKU
• SuperServer 7044H-TR (Beige)
• SuperServer 7044H-TRB (Black)
Motherboard
        Super X6DHT-G
Processor/Cache
CPU

• Dual 604-pin FC-mPGA4 Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Xeon (Nocona) CPU with 1MB L2 Integrated Advanced Transfer Cache, up to 3.60 GHz
• Xeon (Irwindale) CPU with 2MB L2 Integrated Advanced Transfer Cache, up to 3.80 GHz
• Xeon LV (Low Voltage) CPU, up to 2.8 GHz

System Bus • 800 MHz system bus
OS Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Eight 184-pin DIMM slots
• Supports up to 16 GB DDR 333MHz memory, or
• Supports up to 32 GB DDR 266MHz memory
• Dual channel memory bus
• Memory must be populated in pairs
• Single-rank modules are recommended for 6+ DIMM support
Memory Type

• DDR 333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs

DIMM Sizes • 256 MB, 512 MB, 1GB, 2GB, 4GB**
Memory Voltage • 2.5 V only
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
• Memory Sparing / Mirroring
On-Board Devices
Chipset

• Intel® E7520 chipset
• MCH + 6300ESB + PXH/V +82541GI

SATA

• Marvell® 88SX6081 8-port SATA Controller
• RAID 0, 1, JBOD support

SATA

• 6300ESB 2-port SATA Controller
• RAID 0, 1, JBOD support

Zero Channel
RAID

• Support for Zero-Channel RAID
• (Card not included)

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• (Optional: AOC-IPMI20-E)

Network Controllers

• 2x Intel® 82541GI Single Port Gigabit Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Graphics

• ATI Rage XL SVGA PCI video controller with 8MB of video memory

Super I/O

• Winbond 83627HG chip

Clock
Generator

• CK409
Input/Output
Serial ATA

• Ten Serial ATA ports
• Up to ten SATA hard drives supported
• 6300ESB - 2 SATA ports
• Marvell 885X6081- 8 SATA ports

IDE

• Dual EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100

Floppy

• 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support

ZCR

• Adaptec 2020SA (Card not included)

LAN

• 2x RJ45 LAN ports

USB

• 2x USB rear ports
• 2x USB internal headers
• USB 2.0 Compliant / 1.1 Compliant

VGA

• 1x VGA Port

Keyboard/Mouse

• PS/2 keyboard and mouse ports

Serial Port/Header

• 2 Fast UART 16550 serial ports

Parallel Port

• 1 ECP/EEP parallel port
• 1 parallel port header

























Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit (CSE-PT26)
Model SC743T-R760
Dimension and Weight
Height • Tower: 17.2" (437mm) / Rackmount: 7.0" (178mm)
Width • Tower: 7.0" (178mm) / Rackmount: 17.2" (437mm)
Depth • 25.5" (648mm)
Gross Weight • 63 lbs (28.6kg)
Available Color • Beige / Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• Power Fail LED
Ports • 2x USB Ports
Expansion Slots
PCI-Express

• 2 (x8) slots

PCI-X • 1x 64-bit 133MHz PCI-X (3.3V) slot
• 2x 64-bit 100MHz PCI-X (3.3V) slots
PCI • 1x 32-bit 33MHz PCI (5V) slot
Drive Bays
Hot-swap

• 8x 3.5"SATA Hot-swap Drive Bays

Peripheral Bay(s)
[90oRotatable]
• 2x 5.25" Peripheral Drive Bay
• 1x 5.25" Bay For Floppy Drive
Peripheral Drives
Floppy

• Panasonic 3.5" 1.44MB Floppy Drive

SATA


• SATA Hard Drive Backplane

System Cooling
Fans

• 4x 5000 RPM Hot-swappable Cooling Fans
• 2x 5000 RPM Hot-swappable Rear Exhaust Fans

Power Supply
  760W Triple-redundant AC power supply w/ PFC [ 24-pin, (4-pin, 8-pin) = 12V ]
AC Voltage • 100 - 240V, 50/60Hz, 14-8 Amp
DC Output • 5V + 3.3V ≤ 200W
• 12V Total ≤ 50A
+5V • 36.0 Amp
+5V standby • 3.5 Amp
+12V1 • 18.0 Amp
+12V2 • 18.0 Amp
+12V3 • 19.0 Amp
+12V4 • 19.0 Amp
-12V • 1.0 Amp
+3.3V • 36.0 Amp
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V & +5V Standby

FAN • Four 4-pin fan headers
• Four 3-pin fan headers
• 8x fans with status tachometer monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
• Support 3-pin fans
• Pulse Width Modulated (PWM) fan connector
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x fan connectors
• PC temperature sensing logic
• Thermal Monitor 2 (TM2) support
LED • CPU / System Overheat LED
• Suspend-state indicator LED
Other Features • Chassis intrusion detection
• Chassis intrusion header
• SDDC Support
System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features

• Plug and Play (PnP)
• DMI 2.1
• PCI 2.2
• ACPI 1.0
• USB Keyboard support
