  • Supermicro 4U Rackmountable Tower SYS-5046A-XB | SuperServer

Supermicro 4U Rackmountable Tower SYS-5046A-XB | SuperServer

Call for price.
SKU:SYS-5046A-XB

Quick Overview:

Key Features:
Whisper Quiet Workstation (27dB) with nVidia® SLI™ and AMD CrossfireX™
Technology Support
• Intel® Core™ i7 / i7 Extreme Edition, and Intel® Xeon® 5600/5500/3600/3500
   series (QPI up to 6.4 GT/s)
• Up to 24GB DDR3 1600/1333/1066/800 ECC / non-ECC Un-Buffered DIMM
• 2 (x16) PCI-Express 2.0, 1 (x4) PCI-Express (using x8 slot), 1x 32-bit PCI Slots
• Intel® Dual 82574L Gigabit Ethernet Controller
• Supports nVidia® SLI™ and ATI® CrossfireX ™ Technology
• 8x 3.5" Hot-swap SATA Drive Bays
• 865W Low-Noise High Efficiency Cooling-Redundant Power Supply
• Tower or Rackmount
• PWM Fan Speed Control


Details

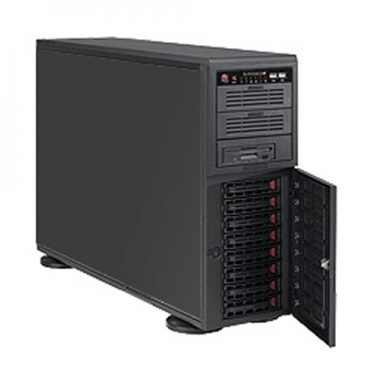

Supermicro SYS-5046A-XB 4U Rackmountable/Tower

Supermicro SYS-5046A-XB 4U Rackmountable/Tower with 865W Low-Noise High Efficiency Cooling-Redundant Power Supply, Intel® X58 Express chipset,6x SATA Hot-swap Drives,
and 2x Spare Trays which supports Super C7X58 Server Motherboard and SC743TQ-865-SQ 4U Rackmountable/Tower Chassis.
Product SKU
• SYS-5046A-XB (Black)
Motherboard
        Super C7X58
Processor/Cache
CPU

• LGA 1366 Socket
• Intel® Core™ i7 990X, i7-980X, i7-975 and i7-965 Extreme Edition
• Intel® Core™ i7 series
• Intel® Xeon® 5600/5500 series
• Intel® Xeon® 3600/3500 series

System Bus • QPI (up to 6.4 GT/s)
System Memory (per node)
Memory Capacity • Supports up to 24 GB 1600 / 1333 / 1066 / 800MHz DDR3 ECC / non-ECC Un-Buffered memory
• Three Channel memory bus
• 6 DIMM slots
Memory Type

• 1600 / 1333 / 1066 / 800MHz Un- Buffered ECC / non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes • 256MB, 512MB, 1GB, 2GB, 4GB
Memory Voltage • 1.5 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset

• Intel® X58 Express chipset
• ICH10R

SATA

• Intel ICH10R SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support

Network Controllers

• Dual Intel® 82574L Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Audio

• Realtek ALC883 7.1 HD audio

Super I/O • Winbond 83627DHG chip
Clock Generator • CK505
Input/Output (per node)
Serial ATA

• 6 Serial ATA ports
• 6 SATA hard drives supported

Floppy

• 1 Floppy controller; 1.44 MB

LAN

• 2x RJ45 LAN ports

USB

• 8x USB rear ports
• 2x USB on-board
• 1x USB internal header(2 ports)
• Total 12 USB 2.0 Compliant

Audio

• 6x analog outputs
• 1x S/PDIF digital output

Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Port / Header

• 2 Fast UART 16550 serial header

IEEE 1394a

• 2x headers
• 1x external connector

I/O Panel
  • Please see this board's I/O Panel
System Bios
Bios Type • 4Mb SPI Flash EEPROM with AMI BIOS
Bios Features

• DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3





















Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit (CSE-PT26)
Model SC743TQ-865-SQ
Dimension and Weight
Height • 7.0" (178mm)
Width • 17.2" (437mm)
Depth • 25.5" (648mm)
Gross Weight • 63 lbs (28.6kg)
Available Color • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
Ports • 2x USB Ports
Drive Bays
Hot-Swap • 6x SATA Hot-swap Drives
• 2x Spare Trays
Peripheral Bay(s)
[90oRotatable]
• 2x 5.25" Peripheral Drive Bay
• 1x 5.25" Bay For Floppy Drive
SATA Backplane


• SC743 SATA Backplane w/ Enclosure Management

System Cooling
Fans

• 2x 8cm Hot-swappable PWM Cooling Fans
• 1x 9cm Hot-Swappable Rear Exhaust PWM Fan
• 1x Active heatsink w/ heatpipe

Power Supply
  865W AC power supply (cooling-redundant) w/ PFC
AC Voltage • 100 - 240V, 50-60Hz, 12-6 Amp
+5V standby

• 6.5 Amp

+12V

• 70 Amp

+5V

• 30 Amp

+3.3V

• 30 Amp

-12V

• 1 Amp

Certification • Certified
PC Health Monitoring
CPU • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
• 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN

• Total of six fan headers supporting up to 6 fans
• Six 4-pin fan headers
• 6x fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• FC temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI
LED • CPU / System Overheat LED
• Suspend-state indicator LED
• +5V Standby alert LED
Other Features • Chassis intrusion detection
• Chassis intrusion header
Operating Environment/Compliance
RoHS

• RoHS Compliant

Environmental Spec

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
