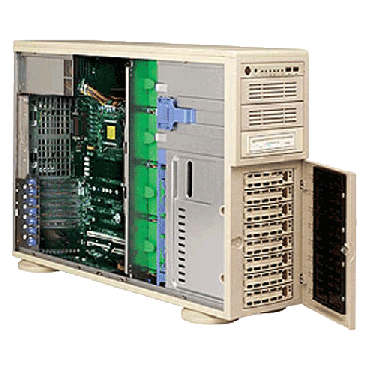

  • Supermicro 4U Rackmountable Tower A+ AMD Opteron Server AW-4021A-T2B

Supermicro 4U Rackmountable Tower A+ AMD Opteron Server AW-4021A-T2B

Call for price.
SKU:AW-4021A-T2B

Quick Overview:

Key Features:
• 2x Six-Core AMD Opteron™ 2000 processor
• Up to 64GB of memory
• 8 x 3.5" Hot-swap Drive Bays (up to 6 SATA)
• nVidia IO-55 Chipset
• Dual-port Gigabit LAN/Ethernet Controller
• 645W Low-Noise Power Supply


Details

Supermicro 4U Rackmountable Tower A+ AMD Opteron Server AW-4021A-T2B

Product SKU
• A+ Workstation 4021A-T2 (Beige)
• A+ Workstation 4021A-T2B (Black)
Motherboard
  • Super H8DAE-2
Processor/Chipset
CPU • Dual 1207-pin Socket F
• Supports up to two Six-Core AMD Opteron™ 2000 Series (Socket F) processors
• processors HT3.0 Link support
Chipset • nVidia MCP55 Pro
• nVidia IO-55
• NEC uPD720400
System Memory
Memory Capacity • 8x 240-pin DIMM sockets support up to 64GB DDR2 800/667/533/400 MHz SDRAM
• Single or Dual (recommended) channel memory support
• For Single CPU: Memory must be populated in CPU1 DIMMs only
• For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type

• DDR2 800/667/533/400MHz Reg. ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 256MB, 512MB, 1GB, 2GB, 4GB, 8GB

Memory Voltage

• 1.8V only

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
SATA • nVidia MCP55 Pro SATA2 3.0Gbps Controller
• 6 SATA Ports
• nVidia RAID 2.0
• SATA RAID 0, 1, 0+1, 5, JBOD Support
IPMI • Intelligent Platform Management Interface v.2.0, Low Profile
• RMM (Remote Management Module)
• (Optional: AOC-SIMLP-B(+) R 3.00)
• (Optional: AOC-SIMLP-3(+) R 3.00) with 3rd LAN support
• NOTE: KVM-over-LAN not supported - there is no DVO signal to the IPMI slot
• (Card not included)
Network Controllers • nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Super I/O • Winbond 83627HF
Audio

• HD Audio 7.1 Sound

Expansion Slots
PCI-Express • 2 x16 PCI-e Slots
• 1 x8 PCI-e Slot
• 1 x4 PCI-e Slot
PCI-X • 1 64-bit 133MHz PCI-X (3.3V) slots
• 1 64-bit 100MHz PCI-X (3.3V) slot
Input/Output
SATA • 6 SATA2 ports
IDE • Single EIDE channel support up to two UDMA IDE devices
• Supports UDMA Mode 5
• Supports PIO Mode 4
• Supports ATA 100/133
Floppy • 1 Floppy port; 1.44 MB support
LAN • 2 RJ45 LAN ports
USB • FUCI
• Up to 8 USB Ports 2.0 Compliant
• 4 Rear Ports
• 4 Internal Headers
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Ports • 2 Fast UART 16550 serial ports
Parallel Port • 1 ECP / EPP parallel port
Audio • 1 Line In / Line Out / Microphone port
• 3 Audio Jacks for 7.1 Sound
Firewire



• 2x 1394 internal headers



Chassis
Form Factor • Tower / 4U Rackmountable
• Optional Rackmount Kit (CSE-PT26)
Model SC743T-645
Dimension and Weight
Height • 7.0" (178mm)
Width • 17.2" (437mm)
Depth • 25.5" (648mm)
Gross Weight • 63 lbs (28.6kg)
Available Colors • Beige, Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED

Ports • 2x USB Ports (2.0 Ready)
Drive Bays
Hot-swap

• 8 x 3.5" SATA Hot-swap Drive Bays
• Up to 6x SATA Hard Drives Supported

Peripheral Bay(s)
[90o Rotatable]

• 2x 5.25" Peripheral Drive Bay
• 1x 5.25" Bay For Floppy Drive

SATA Backplane


• SATA Hard Drive Backplane w/ Enclosure Management (SGPIO)

System Cooling
Fans

• 4x 5000 RPM Hot-swappable PWM Cooling Fans
• 1x Exhaust Fan

Power Supply
  645W Low-Noise AC power supply with PFC [ 24-pin, (4-pin, 8-pin) = 12V ]
AC Voltage • 100 - 240V, 50/60Hz, 11-5.5 Amp
Dimension
(DC Output
• 5V + 3.3V ≤ 160W
+5V • 30.0 amp
+5V standby • 4.0 amp
+12V • 46.0 amp
-12V • 0.6 amp
+3.3V • 30.0 amp
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +1.5V, +3.3V, +5V, ±12V, 3.3V Standby, 5V Standby, HyperTransport Link voltage 1.2V, memory voltage 1.8V, VBAT
• CPU 4-Phase-switching voltage reulator

FAN • Total up to 8-fan status tachometer monitoring
• Up to eight 4-pin fan headers
• Status monitor for speed control
• Stauts monitor for on/off control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal Control for 8x Fan Connectors
• I2C Temperature Sensing Logic
LED • CPU / System Overheat LED
• Suspend-State Indicator LED
• +5V Standby Alert LED
Other Features • Chassis Intrusion Detection
• Chassis Intrusion Header
System BIOS
BIOS Type

• 8Mb Flash EEPROM with AMI® BIOS

BIOS Features







• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 2.0
• BIOS Rescue Hot Keys
• USB Keyboard Support
• Hardware BIOS Virus Protection
• SMBIOS 2.3
