Details
|
Product SKU
| |
|---|---|

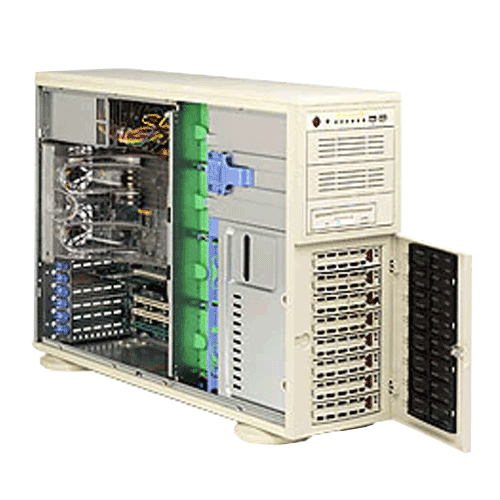

| AW-4020C-T | • A+ Workstation 4020C-T (Beige) |
| AW-4020C-TB | • A+ Workstation 4020C-TB (Black) |
|
Motherboard
| |
|---|---|
| • otherboard Super H8DCE | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Dual 940-pin ZIF Sockets • Supports up to two Dual-Core AMD Opteron™ 200 Series processor(s) • VRM x3 |
| Chipset | • HyperTransport Link • nVidia nForce Pro 2200 (CK804) • nVidia nForce Pro 2050 (CKIO4) |
|
System Memory
| |
|---|---|
| Memory Capacity | • Eight 184-pin DIMM sockets • Supports up to 16 GB DDR 400 MHz memory or • Supports up to 16 GB DDR 333 MHz memory or • Supports up to 32 GB DDR 266 MHz memory • Single or Dual(recommended) channel memory • For Single CPU: Memory must be populated in the adjacent memory bank • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Memory Type | • DDR 400/333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB, 4GB** |
| Memory Voltage | • 2.5 V only |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| SATA | • nVidia nForce Pro 2200 SATA 3.0Gbps Controller • nVidia nForce Pro 2050 SATA 3.0Gbps Controller • 8 SATA Ports • nVidia RAID 2.0 • SATA RAID 0, 1, 0+1 support |
|---|---|
| Network Controllers | • nVidia nForce Pro 2200 & 2050 Dual Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Audio |
• AC'97 audio CODEC with high quality 6-channel sound |
|
Expansion Slots
| PCI-Express | • 2x PCI-e x16 slots • 2x PCI-e x4 (using x8) slots |
PCI | • 3x 32-bit PCI slots |
|---|
|
Input/Output
| Serial ATA | • Integrated SATA 3.0Gbps Controller • Eight Serial ATA Connectors • Eight SATA hard drives supported |
IDE | • Dual ATA 133/100 EIDE channels support up to four UDMA IDE devices | LAN | • 2 RJ45 LAN port |
|---|---|
| USB | • FUCI • Up to 8 USB Ports 2.0 Compliant, 1.1 Compatible |
| Audio | • 1 Line In / Line Out / Microphone ports |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | • 2 Fast UART 16550 serial ports |
| Parallel Ports |
• 1 ECP/EPP parallel port |
|
Chassis
| |
|---|---|
| Form Factor | • Tower / 4U Rackmountable • Optional Rackmount Kit (CSE-PT26) |
| Model | • SC743T-645 |
|
Dimension and Weight
| |
|---|---|
| Height | • 7.0" (178mm) |
| Width | • 17.8" (452mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • 63 lbs (28.6kg) |
| Available Colors | • Beige, Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
| Ports | • 2x USB Ports (2.0 Ready) |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 8 x 3.5" SATA Hot-swap Drives |
| Peripheral Bay(s) [90o Rotatable] |
• 3x 5.25" Peripheral Drive Bay |
|
SATA Backplane
| |
|---|---|
• SATA Hard Drive Backplane |
|
|
System Cooling
| |
|---|---|
| Fans | • 4x 5000 RPM Hot-swappable PWM Cooling Fans |
|
Power Supply
| |
|---|---|
| 645W Low-Noise AC power supply with PFC [ 24-pin, (4-pin, 8-pin) = 12V ] | |
| AC Voltage | • 100 - 240V, 50/60Hz, 11-5.5 Amp |
| DC Output |
• 5V + 3.3V ≤ 160W |
| +5V | • 30.0 amp |
| +5V standby | • 4.0 amp |
| +12V | • 46.0 amp |
| -12V | • 0.6 amp |
| +3.3V | • 30.0 amp |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +3.3V, +5V, ±12V & +3.3V Standby, HyperTransport Link voltage 1.2V, memory voltage 2.5V, nVidia nForce Pro 2200 & 2050 voltage 1.5V |
| FAN | • Total up to 8-fan status • 3-pin fan speed control or • 4-pin PWM fan connector |
| Temperature | • Monitoring for CPU, chassis, environment |
| LED | • Overheat LED |
| Other Features | • Chassis Intrusion Header |
|
System BIOS
| |
|---|---|
| BIOS Type |
• 4Mb Flash EEPROM with AMI® BIOS |
| BIOS Features | • Plug and Play (PnP) • SMBIOS 2.3 • DMI 2.1 • ACPI 1.0 • Fan Speed Control |
