Details
|
Product SKU
| |
|---|---|

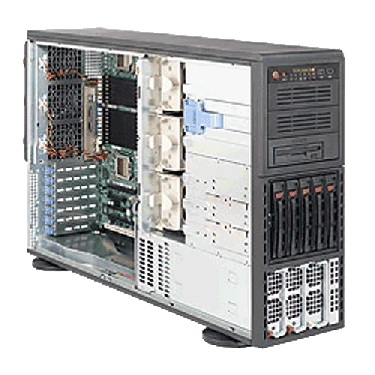

| AS-4041M-32R+B | • A+ Server 4041M-32R+B (Black) |
|
Motherboard
| |
|---|---|
| • Super H8QM3-2 | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Quad 1207-pin Socket F • Supports up to four Six-Core AMD Opteron™ 8000 Series (Socket F) processors • HT3.0 Link support |
| Chipset | • nVidia MCP55 Pro • AMD 8132 |
|
System Memory
| |
|---|---|
| Memory Capacity | • Thirty-two 240-pin DIMM sockets • Supports up to 256 GB DDR2 800/667/533/400 MHz memory * • Single or Dual (recommended) channel memory support • For Quad CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Memory Type | • DDR2 800/667/533/400MHz Reg. ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 256MB, 512MB, 1GB, 2GB, 4GB, 8GB |
| Memory Voltage | • 1.8V only |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| SAS | • 8-Port LSI 1068E SAS Controller * • SAS RAID 0, 1, 10, JBOD Support |
SATA | • nVidia MCP55 Pro SATA2 3.0Gbps Controller • 6 SATA2 Ports • nVidia RAID 2.0 • SATA RAID 0, 1, 0+1, 5 JBOD Support |
IPMI | • Intelligent Platform Management Interface v.2.0, Low Profile • (Optional: AOC-SIMLC R 3.00) • (Optional: AOC-SIM1U+ R 3.00) • RMM (Remote Management Module) • (Card not included) • For Dedicated LAN, cable CBL-0177L must be used (cable sold separately) • Note: Dedicated LAN connection is required for KVM-over-LAN function. |
|---|---|
| Network Controllers | • Intel® 82546GB Dual Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
Super I/O | • Winbond 83627HF |
| VGA |
• ATI ES1000 Graphics Controller |
|
Input/Output
| SAS | • 8 SAS ports | SATA | • 6 SATA2 ports | IDE | • Single EIDE channel support up to two UDMA IDE devices • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA 100/133 |
LAN | • 2 RJ45 LAN ports |
|---|---|
| USB | • FUCI • Up to 4 USB Ports 2.0 Compliant • 2 Rear Ports • 2 Internal Headers |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | • 1 Fast UART 16550 serial port • 1 Header |
| VGA |
• 1 VGA port |
|
Chassis
| |
|---|---|
| Form Factor | • Tower / 4U Rackmountable • Optional Rackmount Kit (MCP-290-00001-00) |
| Model | • SC748TQ-R1200 |
|
Dimension and Weight
| |
|---|---|
| Height | • 7.0" (178mm) |
| Width | • 17.8" (452mm) |
| Depth | • 29.4" (746mm) |
| Gross Weight | • 87 lbs (39.5kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
| Ports | • 2x USB Ports |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 5x 3.5" Hot-swap SAS/SATA Drive Trays |
| Peripheral Bay(s) |
• 3x 5.25" Peripheral Drive Bay |
|
Expansion Slots
| |
|---|---|
| PCI-Express | • 2 x16 PCI-e Slot |
| PCI-X |
• 1 64-bit 133/100MHz PCI-X (3.3V) slots |
|
SAS / SATA Backplane
| |
|---|---|
• SAS / SATA Hard Drive Backplane |
|
|
System Cooling
| |
|---|---|
| Fans | • 3x 5000 RPM Hot-Swappable Cooling Fans |
| Shroud |
• 1x Air Shroud |
|
Power Supply
| |
|---|---|
| 1200W (1 + 1) Redundant high-efficiency power supply w/ PFC | |
| 1200W | |
| +5V standby |
• 4 Amp |
| +12V | • 100 Amp |
| 900W | |
| +5V standby |
• 4 Amp |
| +12V | • 74 Amp |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT |
| FAN | • Total up to 9-fan status tachometer monitoring • Up to nine 3-pin fan headers • Status monitor for speed control • Support 3-pin fans with fan-speed control |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip Support • PC Temperature Sensing Logic |
| LED | • CPU / System Overheat LED • Suspend-State Indicator LED • +5V Standby Alert LED |
| Other Features | • Chassis Intrusion Detection • Chassis Intrusion Header |
|
System BIOS
| |
|---|---|
| BIOS Type |
• 8Mb Flash EEPROM with AMI® BIOS |
| BIOS Features | • Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 2.0 • USB Keyboard Support • SMBIOS 2.3 |
