  • Supermicro 4U Rackmountable Tower A+ AMD Opteron Server AS-4040C-TRB

Supermicro 4U Rackmountable Tower A+ AMD Opteron Server AS-4040C-TRB

Call for price.
SKU:AS-4040C-TRB

Quick Overview:

Key Features:
• Quad AMD® Opteron™ Support (Dual Core Ready)
•  Up to 64GB of memory
• 5 x 3.5" Hot-swap SATA Drive Bays
• nVidia® nForce Pro 2200 (CK804) AMD8132 Chipset
• Dual Gigabit (Intel 82546GB) Ethernet Controller
• 1000W Redundant Power Supply

Details

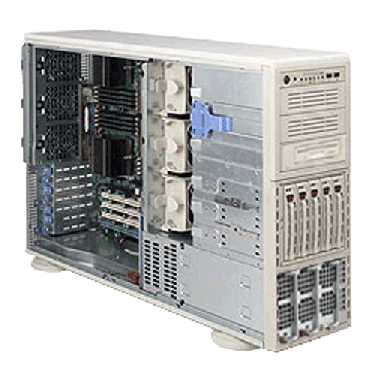

Supermicro 4U Rackmountable Tower A+ AMD Opteron Server AS-4040C-TRB

Product SKU
• A+ Server 4040C-TR (Beige)
• A+ Server 4040C-TRB (Black)
Motherboard
  • Super H8QCE
Processor/Chipset
CPU • Quad 940-pin ZIF Sockets
• Supports four Dual-Core AMD Opteron™ 800 Series processor(s)
• HyperTransport Link (1000MHz)
• 8-way option has 2 HyperTransports using PCI-e, extra I/O or Pathscale communication device
• Only Quad-Processor Configurations Recommended
• VRM x4
Chipset • nVidia nForce Pro 2200 (CK804)
• AMD 8132 PCI-X Tunnel
System Memory
Memory Capacity • Four 184-pin DIMM sockets per processor memory bank
• Four memory banks for 4 processors (Quad).
• Supports up to 32 GB DDR 400 MHz memory or
• Supports up to 64 GB DDR 333/266 MHz memory
• Supports up to 64 GB registered ECC DDR for 4-way option
• Supports up to 128 GB memory for 8-way option only
• Single or Dual (recommended) channel memory support
• Recommended that memory be populated equally in adjacent memory banks
Memory Type

• DDR 400/333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs

DIMM Sizes

• 256 MB, 512 MB, 1GB, 2GB, 4GB**

Memory Voltage

• 2.5 V only

Error Detection

• Corrects single-bit errorsX
• Detects double-bit errors (using ECC memory)

On-Board Devices
SATA • nVidia nForce Pro 2200 SATA 3.0Gbps Controller
• 4 SATA Ports
• nVidia RAID 2.0
• SATA RAID 0, 1, 0+1 support
Network Controllers • Controllers Dual Intel 82546GB Ethernet Controllers
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI • Support for Intelligent Platform Management Interface v.2.0
• (Optional: AOC-IPMI20-E) Card not included
Graphics • ATI Rage XL 8MB
Super I/O • Winbond 83627HF-AW
Clock Generator

• CK804

Input/Output
Serial ATA • Integrated SATA 3.0Gbps Controller
• Four Serial ATA Connectors
• Four SATA hard drives supported
IDE • Dual ATA 133/100 EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5
• Supports PIO Mode 4
• Supports ATA 100 / 133
LAN • 2 RJ45 LAN ports
USB • FUCI
• Up to 4 USB Ports 2.0 Compliant, 1.1 Compatible
• 2 rear ports
• 1 internal header for 2 ports
VGA • 1 VGA port
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Ports • 1 Fast UART 16550 serial port
• 1 Header
Parallel Ports




• 1 ECP / EPP parallel port




Chassis
Form Factor • Tower / 4U Rackmountable
• Optional Rackmount Kit (MCP-290-00001-00)
Model SC748TQ-R1000
Dimension and Weight
Height • 7.0" (178mm)
Width • 17.8" (452mm)
Depth • 29.4" (746mm)
Gross Weight • 65.5 lbs (29.71kg)
Available Colors • Beige, Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• Power Fail LED

Ports • 2x USB Ports
Drive Bays
Hot-swap

• 5x SATA Hot-swap Drives

Peripheral Bay(s)

• 3x 5.25" Peripheral Drive Bay

Expansion Slots
HyperTransport

• 1 HyperTransport slot for Pathscale communication device

PCI-Express

• 2 PCI-e x8 slots (one using x16 slot)

PCI-X

• 2 64-bit PCI-X 133/100MHz slots
• 2 64-bit PCI-X 100MHz slots
• Note: Quad Processors are required for correct PCI-X expansion slot operation

SATA Backplane


• SATA Hard Drive Backplane

System Cooling
Fans

• 3x 5000 RPM Hot-Swappable Cooling Fans
• 3x 5000 RPM Hot-Swappable Rear Exhaust Fan

Power Supply
  1000W AC-DC high-efficiency power supply w/ PFC + PDB
AC Voltage • 100 - 240V, 50 - 60Hz, 15 - 7Amp
+5V standby • 4 Amp
+12V • 83 Amp
With Power
Distributor
• +5V: 20 Amp
• +3.3V: 20 Amp
• -12V: 0.6 Amp
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +3.3V, +5V, ±12V & +3.3V Standby, +5V Standby, HyperTransport voltage 1.2V, memory voltage 2.5V, DDR termination 1.25V, chipset voltage 1.8V
• Up to 8 fan status
• Supports System Management Utility

FAN • Total up to 8-fan status
• 3-pin fan speed control or
• 4-pin Pulse Width Modulated (PWM) fan connector
Temperature • Monitoring for CPU and chassis environment
LED • Overheat LED
Other Features • Chassis Intrusion Header
System BIOS
BIOS Type

• 8Mb Flash EEPROM with AMI® BIOS
• SST49LF080A

BIOS Features

• Plug and Play (PnP)
• PCI 2.2
• DMI 2.3
• ACPI 2.0
• BIOS Rescue Hot Keys
• USB Keyboard Support
• SMBIOS 2.3
