  • Supermicro 4U Rackmountable Tower A+ AMD Opteron Server AS-4021M-T2R+B

Supermicro 4U Rackmountable Tower A+ AMD Opteron Server AS-4021M-T2R+B

Call for price.
SKU:AS-4021M-T2R+B

Quick Overview:

Key Features:
• Supports 2x Six-Core AMD Opteron™ 2000 processor
•  Up to 128GB of memory
• nVidia MCP55 Pro / NEC uPD720400 ChipsetX
• 8 x 3.5" Hot-swap SATA Drive Bays
• Dual-port Gigabit LAN/Ethernet Controller
• 800W Redundant Power Supply

Details

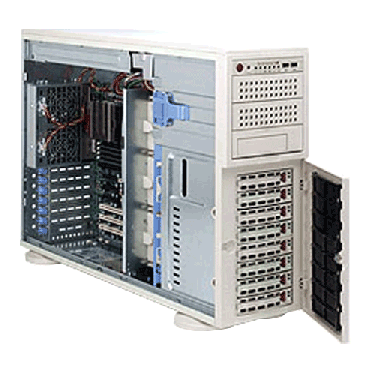

Supermicro 4U Rackmountable Tower A+ AMD Opteron Server AS-4021M-T2R+B

Product SKU
• A+ Server 4021M-T2R+ (Beige)
• A+ Server 4021M-T2R+B (Black)
Motherboard
  • Super H8DME-2
Processor/Chipset
CPU • Dual 1207-pin Socket F
• Supports up to two Six-Core AMD Opteron™ 2000 Series (Socket F) processors
• Dual-core Support
• HT3.0 Link support
Chipset • nVidia MCP55 Pro
• NEC uPD720400
System Memory
Memory Capacity • 16x 240-pin DIMM sockets support up to 128GB DDR2 800/667/533/400 SDRAM *
• For Single CPU: Memory must be populated in CPU1 DIMMs only
• For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
• Dual channel memory bus
Memory Type

• DDR2 800/667/533/400 MHz Reg. ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 256 MB, 512 MB, 1GB, 2GB, 4GB, 8GB

Memory Voltage

• 1.8V only

On-Board Devices
SATA • nVidia MCP55 Pro SATA2 3.0Gbps Controller
• 6 SATA Ports
• nVidia RAID 2.0
• SATA RAID 0, 1, 0+1, 5, JBOD Support
IPMI • Intelligent Platform Management Interface v.2.0, Low Profile
• (Optional: AOC-SIMLC R 3.00)
• (Optional: AOC-SIM1U+ R 3.00)
• RMM (Remote Management Module)
• (Card not included)
Network Controllers • nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA

• ATI ES1000 Graphics Controller

Super I/O

• Winbond 83627HF

Input/Output
SATA • 6 SATA2 ports
IDE • Single EIDE channel support up to two UDMA IDE devices
• Supports UDMA Mode 5
• Supports PIO Mode 4
• Supports ATA 100/133
Floppy • 1 Floppy port; 1.44 MB support
LAN • 2 RJ45 LAN ports
USB • FUCI
• Up to 6 USB Ports 2.0 Compliant, 1.1 Compatible
• 2 Rear Ports
• 4 Internal Headers
VGA • 1 VGA port
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Ports • 1 Fast UART 16550 serial port
• 1 serial port header
System BIOS
BIOS Type

• 8Mb Flash EEPROM with AMI® BIOS

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 2.0
• BIOS Rescue Hot Keys
• USB Keyboard Support
• Hardware BIOS Virus Protection
• SMBIOS 2.3

Chassis
Form Factor • Tower / 4U Rackmountable
• Optional Rackmount Kit (CSE-PT26)
Model SC745TQ-R800
Dimension and Weight
Height • 7.0" (178mm)
Width • 17.2" (437mm)
Depth • 25.5" (648mm)
Gross Weight • N.A.
Available Colors • Beige, Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Power Fail LED

Ports • 2x USB Ports
Drive Bays
Hot-swap

• 8 x 3.5" Hot-swap (SAS / SATA) Drive Bays

M.2

• 2x 5.25" Peripheral Drive Bay
• 1x 5.25" Bay For Floppy Drive

Expansion Slots
PCI-Express

• 2 x8 PCI-e slots

PCI-X

• 2 64-bit 133/100MHz PCI-X (3.3V) slots
• 2 64-bit 100MHz PCI-X (3.3V) slot

IPMI

• IPMI 2.0 expansion slot

SATA Backplane


• SATA Hard Drive Backplane

System Cooling
Fans

• 3x 5000 RPM Hot-Swappable Cooling Fans
• 2x 5000 RPM Hot-Swappable Rear Exhaust Fan

Shroud

• 1x Air Shroud

Power Supply and Distributor
  800W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
AC Voltage • 100 - 240V, 50-60Hz, 10-4 Amp
+5V standby
• 4 Amp
+12V • 66 Amp
With Power
Distributor
• +5V: 30 Amp
• +3.3V: 24 Amp
• -12V: 0.6 Amp
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +1.5V, +3.3V, +5V, ±12V, 5V Standby, HyperTransport Link voltage 1.2V, memory voltage 1.8V, VBAT
• CPU 4-Phase-switching voltage reulator

FAN • Total up to 8-fan status tachometer monitoring
• Up to eight 4-pin fan headers
• Status monitor for speed control
• Stauts monitor for on/off control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal Control for 8x Fan Connectors
• I2C Temperature Sensing Logic
LED • CPU / System Overheat LED
• Suspend-State Indicator LED
• +5V Standby Alert LED
Other Features


• Chassis Intrusion Detection
• Chassis Intrusion Header
