Details
|
Product SKU
| |
|---|---|

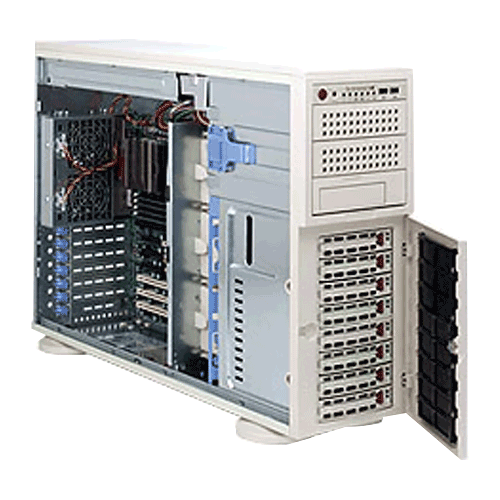

| AS-4021M-32R | • A+ Server 4021M-32R (Beige) |
| AS-4021M-32RB | • A+ Server 4021M-32RB (Black) |
|
Motherboard
| |
|---|---|
| • Super H8DM3-2 | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Dual 1207-pin Socket F • Supports up to two Six-Core AMD Opteron™ 2000 Series (Socket F) processors • HT3.0 Link support |
| Chipset | • nVidia MCP55 Pro • AMD 8132 |
|
System Memory
| |
|---|---|
| Memory Capacity | • 8x 240-pin DIMM sockets support up to
64GB DDR2 800/667/533/400 MHz SDRAM • For Single CPU: Memory must be populated in CPU1 DIMMs only • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks • Dual channel memory bus |
| Memory Type | • DDR2 800/667/533/400MHz Reg. ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB, 4GB, 8GB |
| Memory Voltage | • 1.8V only |
|
On-Board Devices
| SAS | • 8-Port LSI 1068E SAS Controller * • SAS RAID 0, 1, 10, JBOD Support |
SATA | • nVidia MCP55 Pro SATA2 3.0Gbps Controller • 6 SATA2 Ports • nVidia RAID 2.0 • SATA RAID 0, 1, 0+1, 5 JBOD Support |
IPMI | • Intelligent Platform Management Interface v.2.0, Low Profile • RMM (Remote Management Module) • (Optional: AOC-SIMLP-B(+) R 3.00) • (Optional: AOC-SIMLP-3(+) R 3.00) with 3rd LAN support • (Card not included) |
|---|---|
| Network Controllers | • nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| VGA | • ATI ES1000 Graphics Controller |
| Super I/O |
• Winbond 83627HF |
|
Input/Output
| SAS | • 8 SAS ports | SATA | • 6 SATA2 ports | IDE | • Single EIDE channel support up to two UDMA IDE devices • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA 100/133 |
Floppy | • 1 Floppy port; 1.44 MB support | LAN | • 2 RJ45 LAN ports |
|---|---|
| USB | • Up to 6 USB Ports 2.0 Compliant, 1.1 Compatible • 2 Rear Ports • 4 Internal Headers |
| VGA | • 1 VGA port |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | • 1 Fast UART 16550 serial port • 1 serial port header |
|
System BIOS
| |
|---|---|
| BIOS Type | • 8Mb Flash EEPROM with AMI® BIOS |
| BIOS Features |
• Plug and Play (PnP) |
|
Chassis
| |
|---|---|
| Form Factor | • Tower / 4U Rackmountable • Optional Rackmount Kit (CSE-PT26) |
| Model | • SC745TQ-R800 |
|
Dimension and Weight
| |
|---|---|
| Height | • 7.0" (178mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • 70 lbs (31.8 kg) |
| Available Colors | • Beige, Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
| Ports | • 2x USB Ports |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 8x 3.5 " Hot-swap Drive Bays |
| Peripheral Bay(s) |
• 3x 5.25" Peripheral Drive Bays |
|
Expansion Slot
| |
|---|---|
| PCI-Express | • 2 x8 PCI-e slots |
| PCI-X | • 1 64-bit 133MHz PCI-X (3.3V) slots |
| IPMI |
• IPMI 2.0 expansion slot |
|
Backplane
| |
|---|---|
• 1x SAS / SATA Hard Drive Backplane w/ SES2 Enclosure Management |
|
|
System Cooling
| |
|---|---|
| Fans | • 3x 5000 RPM Hot-Swappable Cooling Fans |
| Shroud |
• 1x Air Shroud |
|
Power Supply and Distributor
| |
|---|---|
| 800W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC | |
| AC Voltage | • 100 - 240V, 50-60Hz, 10-4 Amp |
| +5V standby
|
• 4 Amp |
| +12V | • 66 Amp |
| With Power Distributor |
• +5V: 30 Amp • +3.3V: 24 Amp • -12V: 0.6 Amp |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT |
| FAN | • Total up to 8-fan status tachometer monitoring • Up to six 3-pin and two 4-pin fan headers • Status monitor for speed control • 3-pin fan support • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip Support • I2C Temperature Sensing Logic |
| LED | • CPU / System Overheat LED • +5V Standby Alert LED |
| Other Features | • Chassis Intrusion Detection • Chassis Intrusion Header • Chipkill Support |
